901 tt_um_jonahsaunders_slsvga
901 : tt_um_jonahsaunders_slsvga

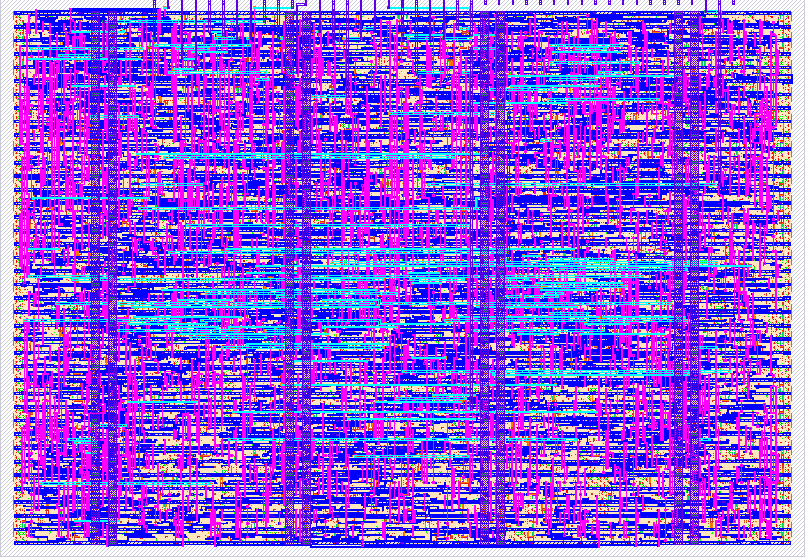

- Author: Jonah Saunders
- Description: VGA scene created with VGA Playground
- GitHub repository
- Open in 3D viewer
- Open in Tiny Tapeout Explorer
- Open in VGA Playground
- Clock: 25175000 Hz
How it works
This Tiny Tapeout project generates a real-time VGA animation of NASA’s Space Launch System orbiting a crescent moon against a star-filled background. A compact Minsky circle oscillator updates the rocket’s position once per video frame, while simple counters animate the flickering engine flames.
How to test
Connect the VGA output to a compatible monitor or VGA capture device, then power the board and load the design. The playground animation should appear automatically once the system is running.
Verify that:
The monitor detects a stable VGA signal. The full animation is visible and centered on the screen. Shapes move smoothly without flickering or tearing. Colors display correctly. The animation loops continuously without freezing.
For simulation testing, run the project testbench and confirm that the horizontal sync, vertical sync, and RGB outputs match the expected VGA timing. A waveform viewer or VGA simulation tool can be used to inspect the generated frames before testing on physical hardware.
External hardware
Tiny Tapeout Demo Board with the project loaded VGA PMOD or compatible VGA output adapter VGA-compatible monitor or display VGA cable USB cable for power USB power source or computer
IO
| # | Input | Output | Bidirectional |
|---|---|---|---|
| 0 | R1 | ||
| 1 | G1 | ||
| 2 | B1 | ||
| 3 | VSync | ||
| 4 | R0 | ||
| 5 | G0 | ||
| 6 | B0 | ||
| 7 | HSync |
