873 : Dot product engine

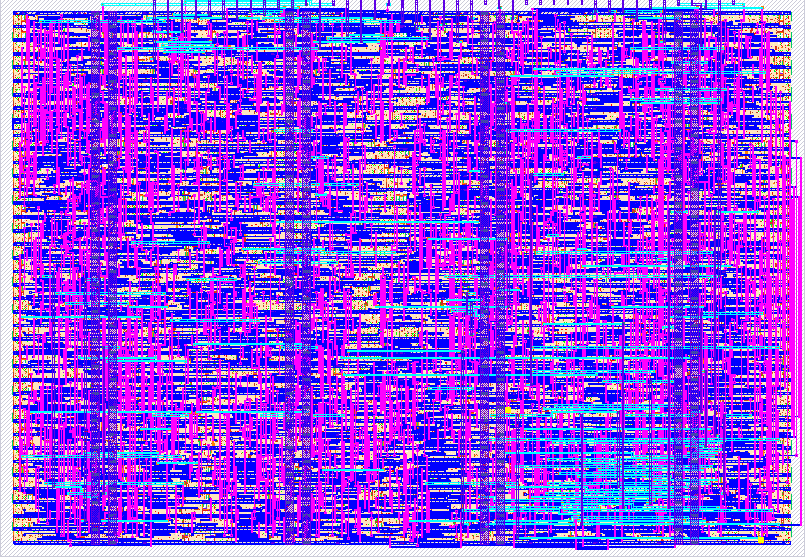

How it works

This design is a small digital datapath controller built around a finite-state machine (FSM). It receives input data on ui_in, controls a memory bank, performs arithmetic through a multiply-accumulate block, and exposes the current status and result through the Tiny Tapeout IO ports.

The top-level module tt_um_andre_dpe connects:

ui_in[7:0]: input data bus
uo_out[7:0]: output data bus
uio_in[7:0]: control and debug inputs
uio_out[7:0]: status output bits
uio_oe[7:0]: IO enable configuration

The FSM supports several modes through the control bits ctl[1:0]:

Idle: waits for new operations
Work: processes the selected datapath operation
Debug: exposes internal values or memory bank state through data_out

The design includes:

a register/memory bank for storage
a MAC unit for multiply-accumulate operations
debug selection logic to read specific memory or intermediate values
status flags indicating whether the FSM is idle, busy, has data ready, or hit an internal error

In practice, the chip acts as a compact programmable control block for arithmetic and memory access, intended as a learning-oriented Tiny Tapeout implementation.

How to test

The project is tested with a cocotb-based Verilog simulation.

From the test directory, run:

make

This will compile the RTL, run the testbench, and produce a waveform such as tb.vcd or tb.fst depending on the current dump format settings.

The testbench drives the clock, reset, control bits, debug selector, and input data, then checks:

reset behavior
FSM state transitions
status changes
output result values
debug readback from the memory or datapath

To inspect the waveform, open the generated file with GTKWave:

gtkwave tb.vcd

gtkwave tb.fst

External hardware

No external hardware is required for simulation.

This project is intended to run in the Tiny Tapeout environment and can be tested entirely through the supplied Verilog simulation setup.

#	Input	Output	Bidirectional
0	DATA_IN[0]	DATA_OUT[0]	STATUS[0]
1	DATA_IN[1]	DATA_OUT[1]	STATUS[1]
2	DATA_IN[2]	DATA_OUT[2]	DEBUG_SEL[0]
3	DATA_IN[3]	DATA_OUT[3]	DEBUG_SEL[1]
4	DATA_IN[4]	DATA_OUT[4]	DEBUG_SEL[2]
5	DATA_IN[5]	DATA_OUT[5]	DEBUG_SEL[3]
6	DATA_IN[6]	DATA_OUT[6]	CTL[0]
7	DATA_IN[7]	DATA_OUT[7]	CTL[1]

Input

Output

Bidirectional

DATA_IN[0]

DATA_OUT[0]

STATUS[0]

DATA_IN[1]

DATA_OUT[1]

STATUS[1]

DATA_IN[2]

DATA_OUT[2]

DEBUG_SEL[0]

DATA_IN[3]

DATA_OUT[3]

DEBUG_SEL[1]

DATA_IN[4]

DATA_OUT[4]

DEBUG_SEL[2]

DATA_IN[5]

DATA_OUT[5]

DEBUG_SEL[3]

DATA_IN[6]

DATA_OUT[6]

CTL[0]

DATA_IN[7]

DATA_OUT[7]

CTL[1]
