How it works

This chip writes text in the style of Shakespeare. It is a character-level language model, which means it reads one character at a time and guesses the next one. The whole model is baked into the silicon. There are no weight registers, no weight loading and no settings.

In this chip every weight is one of three values: -1, 0 or +1. Ternary weights are useful for two reasons. First, the hardware never has to multiply: it adds the input, subtracts the input, or skips it. Second, five weights fit in one byte, because 3 x 3 x 3 x 3 x 3 = 243 and a byte holds 256 values. That is 1.6 bits per weight. The chip holds 22,400 weights in 4,480 bytes of read-only memory (ROM) on the tile.

The chip is the body of a small transformer. This one repeats a group of three steps twice:

RMSNorm. This scales the numbers so they stay in a sensible range. Its scale factors are baked in too.
A minGRU mixer. This is the part that remembers. It mixes the new character into a small memory of everything before it. A gate decides how much of the old memory to keep. Most language models instead keep a list of every character so far, and that list grows. This memory does not grow. It is 80 bytes, and it stays on the chip.
RMSNorm again, then an MLP. An MLP does two rounds of multiply-and-add. Between the rounds it applies one simple rule, called squared ReLU: negative values become zero, and the rest are squared.

Each group adds its result back into a running vector of 40 numbers. That vector is called the residual. A last RMSNorm produces the output.

The ROM sends out one byte at a time, and one byte holds five weights. So the arithmetic unit is 5 lanes wide. It uses all five weights of a byte at once. A ROM read takes two clocks. The sequencer, which is the control unit that steps through the model, starts the next read while the lanes work on the last one. No clock is wasted.

The chip does not do the whole job alone. The host — the microcontroller on the demo board — keeps the character and position tables, and it does the last step that turns numbers back into a character. The split looks like this:

char --> wte + wpe --> int16 residual --> [ CHIP ] --> int8 residual --> logits --> sample
         (host)           80 bytes                      40 bytes         (host)

In the diagram, wte and wpe are the tables that turn a character and its place in the text into numbers. The logits are the scores for every character that could come next. int16 means a whole number stored in 16 bits, and int8 means one stored in 8 bits.

The host sends 80 bytes, the chip sends 40 bytes back, and the host picks the next character from them. The character table is the one part that grows with the size of the alphabet. ROM on a tile is expensive, so that table stays on the host. Most of the work still happens on the chip.

Configuration

Here is every number that describes the model.

quantity	value
residual width `E`	40
transformer blocks `L`	2
MLP hidden width	2E = 80
arithmetic lanes	5
ternary weights	22,400
weight ROM	4,480 bytes: 4,096 bytes in the ROM block, plus 384 bytes built from ordinary logic
other baked constants	280 int8 values (RMSNorm scales and gate biases), a 256-entry sigmoid table, a 48x16 rsqrt table
quality	2.824 bits per character
input bytes per token (`2E`)	80
output bytes per token (`E`)	40
compute clocks per token	5,458
I/O clocks per token (`3E`)	120
total clocks per token	5,578
clock	45 ns, 22.222 MHz
speed	3,984 tokens per second, 251.0 µs per token

"Bits per character" says how good the guesses are, and lower is better. The figure is measured on Shakespeare text the model never saw while it was trained, with the same integer arithmetic the chip uses, and with the memory carried the whole way as it is on the chip.

The speed figure is the chip alone: 5,578 clocks at 45 ns each. It leaves out the work the host does and any delay in the wires.

Interface

There is one clock domain. Everything happens on the rising edge of clk, and no signal crosses between clocks anywhere in the design. rst_n is synchronous, so the clock must run for a reset to take effect. Hold rst_n low for at least 4 clocks with the clock running. ena must stay high for a whole token: switch it off between tokens, or leave it on.

Bytes move with a valid/ready handshake on uio. The sender raises valid when it has a byte, the receiver raises ready when it can take one, and the byte moves on the clock edge where both are high.

pin	direction	function
`ui_in[7:0]`	in	one byte of the input vector
`uo_out[7:0]`	out	one byte of the output vector
`uio[0]`	in	`in_valid`
`uio[1]`	out	`in_ready`
`uio[2]`	out	`out_valid`
`uio[3]`	in	`out_ready`
`uio[4]`	in	`sot`, start of sequence
`uio[5]`	out	`dbg_busy`
`uio[6]`	out	`dbg_rx`
`uio[7]`	out	`dbg_tx`

uio_oe is the constant 8'b1110_0110. The three dbg_* pins show which phase the chip is in. Exactly one of them is high at any time.

Because the chip waits for the host and the host waits for the chip, a slow host is safe. Nothing in the protocol times out.

One token

One token is one character. It takes three phases, and they do not overlap. They cannot overlap, because the chip must finish one character before it knows the next one.

Input: 40 values x 2 bytes = 80 bytes. Send value 0 first, and send the high byte of each value first. Each pair of bytes is a signed 16-bit whole number that stands for a fraction. Divide it by 32 to get the real value. The chip stores only 14 bits of each value. So the host must clamp every value to the range -255.97 to +255.97 before it sends it. The chip cuts the extra bits off; it does not clamp for you.
Compute: 5,458 clocks. dbg_busy is high the whole time. Wait for out_valid instead of counting clocks.
Output: 40 bytes, value 0 first. Each byte is a signed 8-bit whole number with 2 fractional bits, so divide it by 4. Values run from -127 to +127. The chip never sends -128.

sot means "start of text". The chip reads it with the first byte of a token. It clears the mixer memory, and nothing else clears it. Set sot for the first character of a piece of text, and clear it for every character after that.

Weight ROM

The 4,480 weight bytes do not fit in one ROM block, so bytes 0 to 4,095 sit in the ROM macro and bytes 4,096 to 4,479 sit in a small tail built from ordinary logic. A macro is a piece of layout that is drawn in advance and dropped into the chip as one part. Both parts return a byte after the same number of clocks. Any address above the last real byte reads the byte 0x79, which decodes to five zero weights.

The ROM macro is a derived work of an Apache-2.0 layout by Sylvain Munaut ("tnt", 246tnt), released in smunaut/ttsky25a-tv-b-gone-eu. Only the programmed bit pattern was replaced. The row decoder, the bitline circuit, the output drivers and the pin positions are reused as they are. See macro/NOTICE.md for the full attribution.

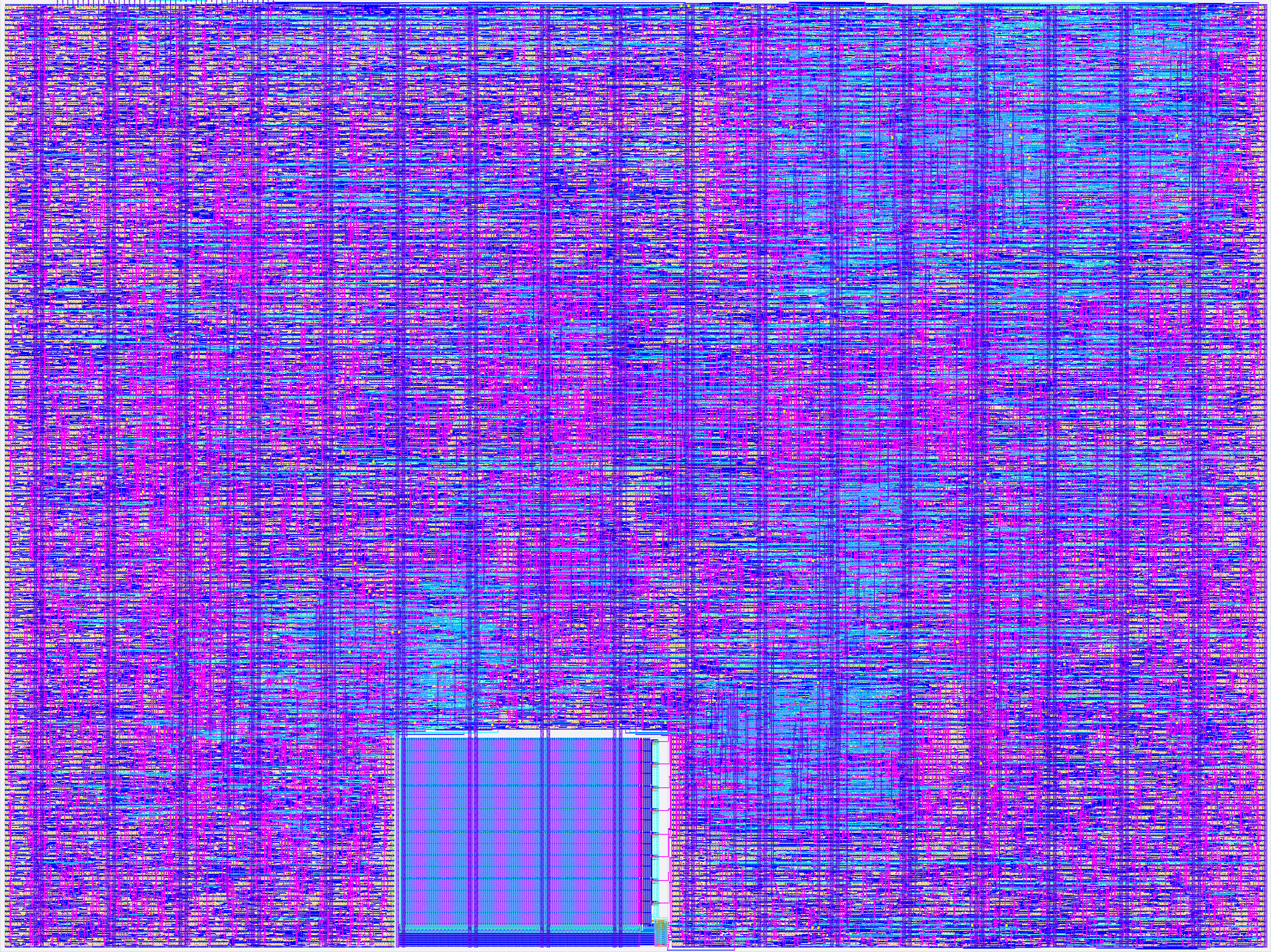

Silicon

quantity	value
tile	4x4, 682.64 x 511.36 µm
process	SkyWater 130 nm (`sky130A`)
clock period	45 ns
estimated power	about 1.1 mW. This comes from the design software, not from a real chip

What is measured, and what is not

The chip has not been tested on silicon, because it has not been manufactured yet.

How to test

The chip needs a host that drives the byte protocol on its pins. The reference host is the RP2350B microcontroller on the Tiny Tapeout demo board.

With the reference firmware. The firmware does the parts of the model that are not on the chip: it turns a character into the 80 input bytes, and it turns the 40 output bytes back into a character. A small dedicated unit inside the microcontroller makes the chip's clock, so the clock and the data can never drift apart.

Build the firmware and copy the .uf2 file it produces onto the board. The build must name the same trained model that the ROM holds. It sets the model size, the number format and the set of characters. If it does not match the silicon, the link hangs instead of reporting an error.
Select this project on the demo board. The firmware clocks the chip at 21.43 MHz, not 22.222 MHz. The RP2350 can only divide its own 150 MHz clock by whole numbers, and 7 is the smallest divider that keeps every chip clock at or above 45 ns. Any slower clock also works, because nothing in the protocol times out.
Connect to the board over USB. It gives you a text prompt. Type info to see which model is on the chip and how fast it is clocked. Type gen 400 KING RICHARD III: to make 400 characters of Shakespeare-like text.
Type clksweep to find the fastest clock the chip is happy with. The command tries one divider after another and reports where the link starts to fail.

A test with no firmware at all. Hold in_valid and out_ready high, clock the chip, and watch uio[7:5]. The high bit must walk from dbg_rx to dbg_busy to dbg_tx and back. That shows the sequencer is running, and it needs only a logic analyser.

If the link stops, read uio[7:5] first. Stuck with dbg_rx high means the host sent too few bytes. Stuck with dbg_tx high means the host read too few. A reset clears it.

External hardware

None. The project needs only the Tiny Tapeout demo board. The RP2350B on the board is the host, and it drives the link through the standard input, output and bidirectional Pmod headers.

A logic analyser on uio is useful during bring-up, but it is not required.

#	Input	Output	Bidirectional
0	data_in[0]	data_out[0]	in_valid (host drives)
1	data_in[1]	data_out[1]	in_ready (chip drives)
2	data_in[2]	data_out[2]	out_valid (chip drives)
3	data_in[3]	data_out[3]	out_ready (host drives)
4	data_in[4]	data_out[4]	sot, start of sequence (host drives)
5	data_in[5]	data_out[5]	dbg_busy (chip drives)
6	data_in[6]	data_out[6]	dbg_rx (chip drives)
7	data_in[7]	data_out[7]	dbg_tx (chip drives)
