162 Ascon bit-serial permutation engine
162 : Ascon bit-serial permutation engine
- Author: Pranav Ullas
- Description: Bit-serial Ascon permutation with streaming column-XOR interface; full AEAD-128 in the test suite
- GitHub repository

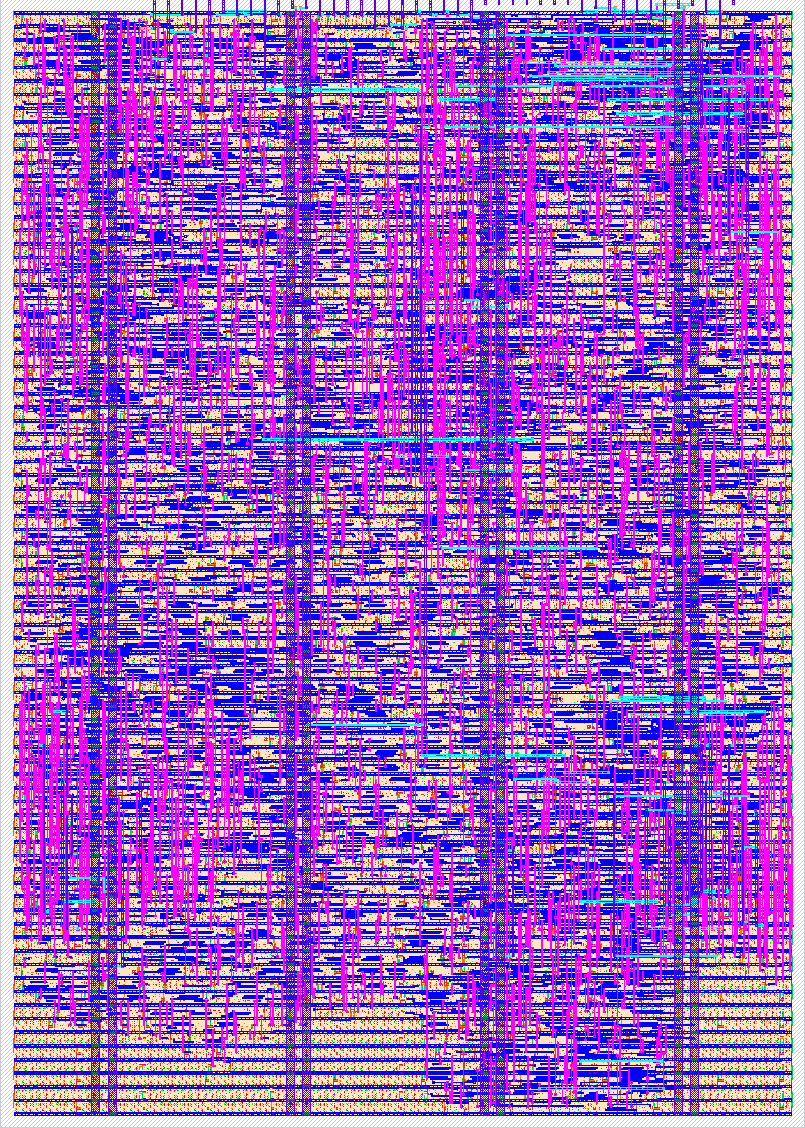

- Open in 3D viewer
- Open in Tiny Tapeout Explorer
- Clock: 50000000 Hz
How it works
A bit-serial implementation of the Ascon permutation (NIST SP 800-232). The 320-bit state lives in five 64-bit recirculating shift registers, processed one 5-bit column per cycle through a single shared S-box; a round is a 64-cycle substitution lap followed by a 64-cycle linear-diffusion lap, so p8 takes 1024 cycles and p12 takes 1536.
The host interface is a streaming "lap" port with no on-chip data buffers. A lap is 64 cycles during which the host supplies one 5-bit column per cycle (COL_IN) and the write-back column appears live on COL_OUT. Two lap modes: RAW (state := COL_IN, used to load the initial state) and XOR (state ^= COL_IN, used for everything else). A lap can optionally trigger the permutation (8 or 12 rounds) when it ends.
All Ascon-AEAD128 protocol steps map onto laps with host-computed columns: initialization is a RAW lap carrying IV/key/nonce followed by p12; key XORs, block absorption, domain separation, and tag generation are XOR laps. Ciphertext bits appear on COL_OUT[1:0] during absorb laps and tag bits on COL_OUT[4:3] during the tag lap. The chip performs all state processing; the host performs padding, block sequencing, and scheduling, and must be cycle-synchronous with the design clock.
This host/chip split is an intentional area optimization, as removing all on-chip 128-bit buffers was necessary to fit the complete Ascon datapath in two tiles.
How to test
cd test && make runs 8 Ascon-AEAD128 known-answer tests end-to-end through the pins; expected values come from the pyascon reference implementation. A 1113-vector KAT sweep driving the same interface is in verif/.
On hardware, the host must control or be locked to the design clock (e.g., the demo board RP2040 stepping the clock while bit-banging the pins). Wait for READY, assert LAP_GO with the lap mode on LAP_XOR and perm controls on PERM_AFTER/PERM_12, then supply one column per cycle for 64 cycles while sampling COL_OUT.
External hardware
None.
IO
| # | Input | Output | Bidirectional |
|---|---|---|---|
| 0 | COL_IN[0] | COL_OUT[0] | LAP_XOR |
| 1 | COL_IN[1] | COL_OUT[1] | |
| 2 | COL_IN[2] | COL_OUT[2] | |
| 3 | COL_IN[3] | COL_OUT[3] | |
| 4 | COL_IN[4] | COL_OUT[4] | |
| 5 | LAP_GO | LAP_ACTIVE | |
| 6 | PERM_AFTER | PERM_BUSY | |
| 7 | PERM_12 | PERM_DONE | READY |
