PCB (Tiny Tapeout 1-3)

PCB for TT01, 02 & 03

Board overview

Carrier board

PCB files: https://github.com/TinyTapeout/caravel-breakout-pcb

Chips are mounted on a carrier board. There are 2 versions, one for QFN package and one for WLCSP. We expect all TT chips to be in QFN.

The carrier board makes it easy to:

  • access all the chip signals
  • build your own motherboard without having to solder QFN or WLCSP

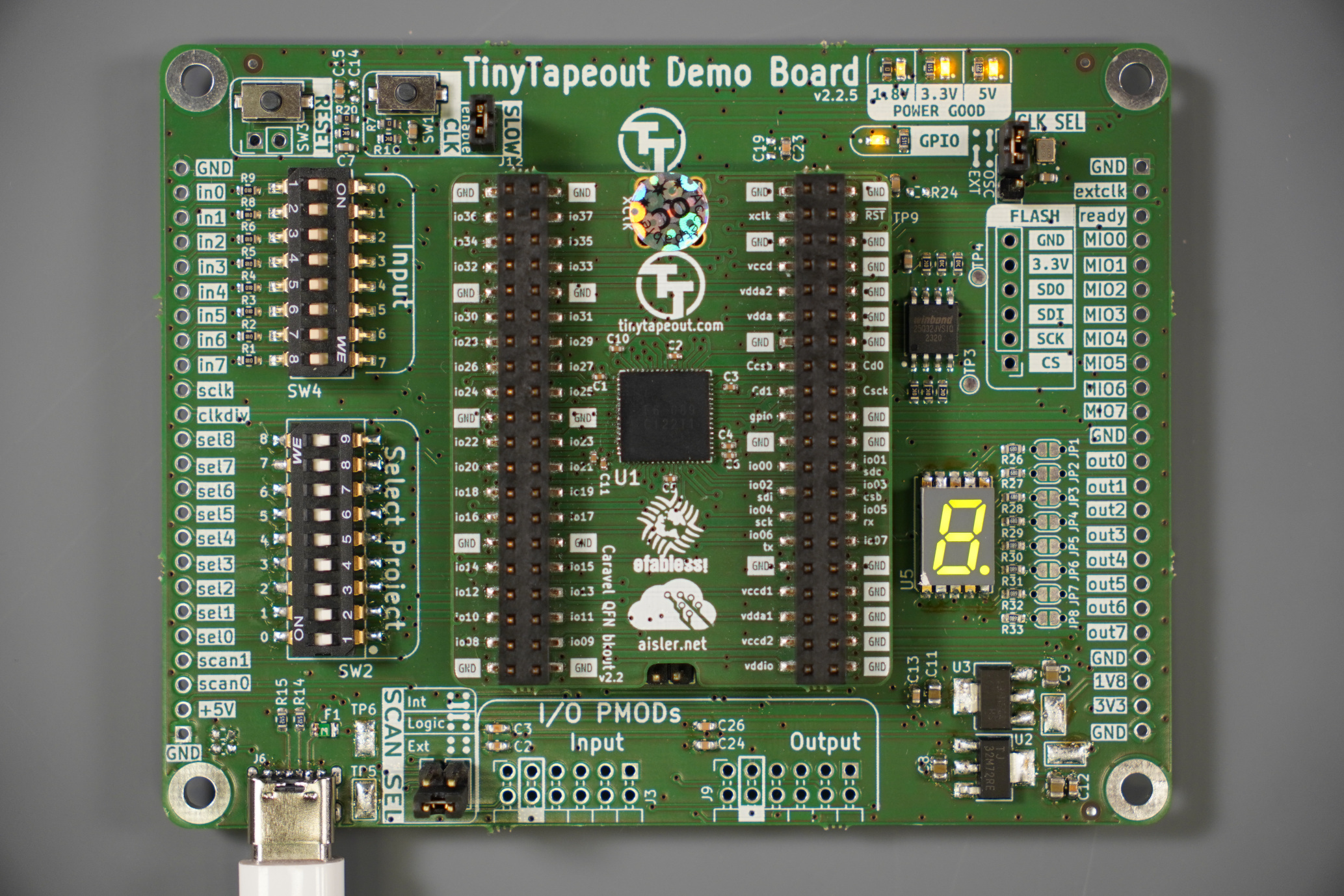

Demo board for TT01, 02 & 03

PCB files: https://github.com/TinyTapeout/tt123-demo-pcb

The demo board provides easy ways to:

  • select the active design with dip switches
  • single cycle clock and reset
  • connect external components via headers or PMODs
  • see the 8 outputs on the 7 segment display
  • control the 8 inputs with dip switches
