1007 4 bit unlock (IEEE)
1007 : 4 bit unlock (IEEE)
- Author: Genuka Giyon
- Description: 4 bit unlocking system with correct password as(1010)
- GitHub repository

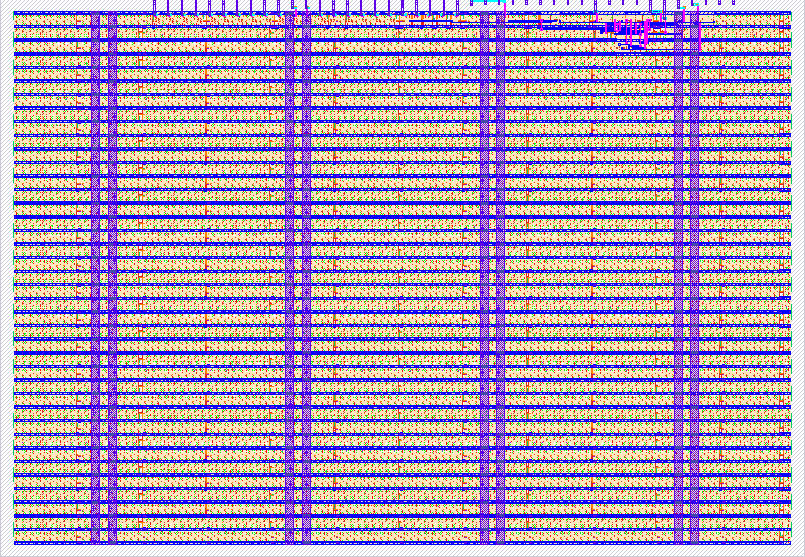

- Open in 3D viewer
- View in Wokwi
- Clock: 0 Hz
How it works
The system is a digital locking circuit that checks a 4-bit input (A, B, C, D). It uses basic logic gates to compare the input against a fixed password.
The correct password is 1010, and the logic implemented is:
E = A · B' · C · D'
This means:
A and C must be HIGH (1) B and D must be LOW (0), enforced using NOT gates
All four conditions are combined using AND gates. Only when all conditions are satisfied does the output (E) become HIGH, which turns on the display (showing “U” for unlocked).
Additionally, a latch is used to implement a permanent lock condition. If the input 1111 is entered, the latch is triggered and forces the system into a locked state. After this, even entering the correct password will not unlock the system.
How to test
Set the inputs A, B, C, and D using switches. Try different combinations: Enter 1010 → the system should unlock (display turns on) Enter any other combination → the system should remain locked Test the special condition: Enter 1111 → system enters permanent lock After this, try entering 1010 again → it should NOT unlock
This confirms both the password logic and the latch behavior are working correctly.
External hardware
4 input switches (for A, B, C, D) Logic gates (AND, NOT, NAND as required) SR latch (for permanent lock condition) 7-segment display (to show “U” when unlocked) LED or output indicator (optional, for debugging)
IO
| # | Input | Output | Bidirectional |
|---|---|---|---|
| 0 | Pin 1 | LED | |
| 1 | Pin 2 | Display Pin 1 | |
| 2 | Pin 3 | Display Pin 2 | |
| 3 | Pin 4 | Display Pin 3 | |
| 4 | Display Pin 4 | ||
| 5 | Display Pin 5 | ||
| 6 | |||
| 7 | Memory reset |
