204 tiny tapeout test gates
204 : tiny tapeout test gates
- Author: chloe jukes
- Description: just some gates
- GitHub repository

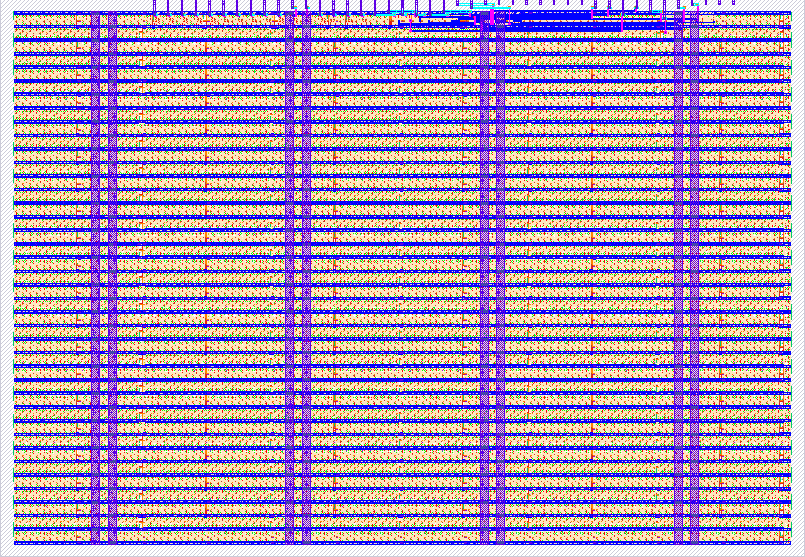

- Open in 3D viewer
- View in Wokwi
- Clock: 0 Hz
How it works
AND, NAND and OR gates are connected to input a and b.
X flip flops are used to divide the clock speed with 2 outputs, one at the 12th flop and one at the 16th.
doesn't really
How to test
Set the inputs and check the outputs match with the expected results:
| input a and b | output AND | output NAND | output OR | |000000000000000||000000000000000||000000000000000||000000000000000| |000000000000000||000000000000000||000000000000000||000000000000000| |000000000000000||000000000000000||000000000000000||000000000000000| |000000000000000||000000000000000||000000000000000||000000000000000|
External hardware
List external hardware used in your project (e.g. PMOD, LED display, etc), if any
IO
| # | Input | Output | Bidirectional |
|---|---|---|---|
| 0 | input a | output NAND | |
| 1 | inbut b | output OR | |
| 2 | input c | ||
| 3 | input d | ||
| 4 | |||
| 5 | |||
| 6 | |||
| 7 |
