206 tj wowki
206 : tj wowki
- Author: tj
- Description: test file of my first wowki design
- GitHub repository

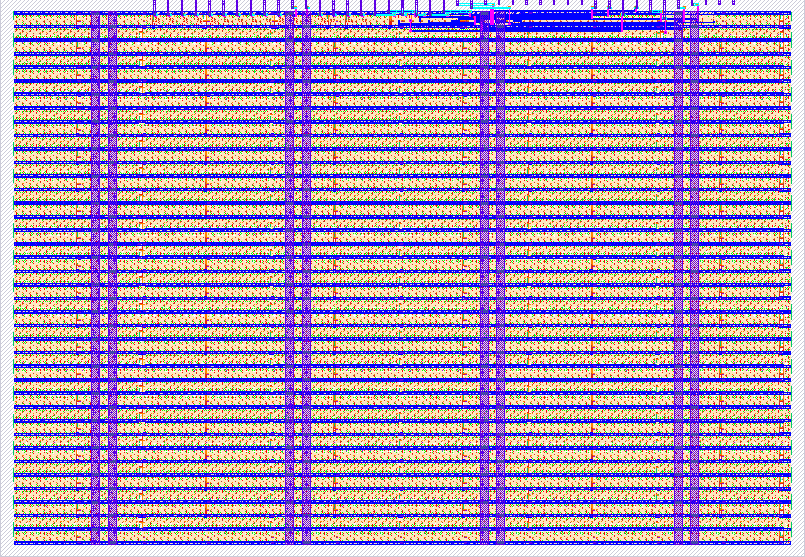

- Open in 3D viewer
- View in Wokwi
- Clock: 10000 Hz
How it works
This project is a basic test that simply activates outputs to a 7 segment display based on some pre-defined inputs.
How to test
Inputs d, e, and f are used to turn on segments in the bottom where as a and b are conencted to a mux dictated by c.
External hardware
7 segment display and switches.
IO
| # | Input | Output | Bidirectional |
|---|---|---|---|
| 0 | input a | output a | |
| 1 | input b | output b | |
| 2 | output c | ||
| 3 | input c | ||
| 4 | input d | output d | |
| 5 | input e | ||
| 6 | input f | output e | |
| 7 |
