335 Nicolas' first Wokwi design
335 : Nicolas' first Wokwi design
- Author: Nicolas van Wyk
- Description: Demo design which produces the leter n with the correct inputs
- GitHub repository

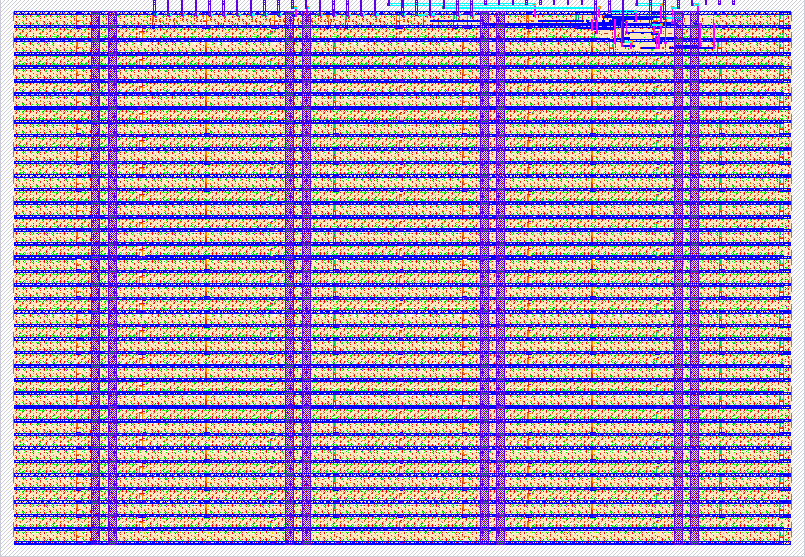

- Open in 3D viewer
- View in Wokwi
- Clock: 0 Hz
How it works
A small n appears when the right inputs are on
How to test
Flip inputs, IN: 0,1,3,5 and 7 on with everything else off
External hardware
List external hardware used in your project (e.g. PMOD, LED display, etc), if any
IO
| # | Input | Output | Bidirectional |
|---|---|---|---|
| 0 | input 1 (set to on) | ||
| 1 | input 2 (set to on) | ||
| 2 | input 3 (set to on) | right down stroke of n | |
| 3 | input 4 (set to off) | ||
| 4 | input 5 (set to off) | left up stroke of n | |
| 5 | input 6 (set to on) | ||
| 6 | input 7 (set to off) | side stroke of n | |
| 7 | input 8 (set to on) |
