680 D-Type Flip Flop
680 : D-Type Flip Flop
- Author: Michael E
- Description: Trying out the D Type Flip Flop
- GitHub repository

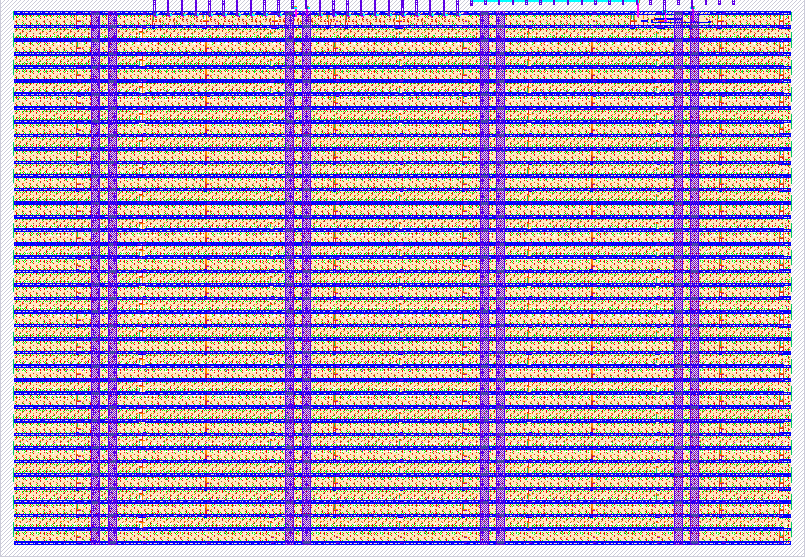

- Open in 3D viewer
- View in Wokwi
- Clock: 10000 Hz
How it works
If the IN0 and IN3 are ON, then an output is made to be on.
How to test
No lights should be on originally, but if the first and thrid inputs are on, then a light turns on.
External hardware
None
IO
| # | Input | Output | Bidirectional |
|---|---|---|---|
| 0 | IN0 | sevseg1 | None |
| 1 | IN2 | ||
| 2 | |||
| 3 | |||
| 4 | |||
| 5 | |||
| 6 | |||
| 7 |
