967 FirstTinyTapeoutWokwiProject

967 : FirstTinyTapeoutWokwiProject

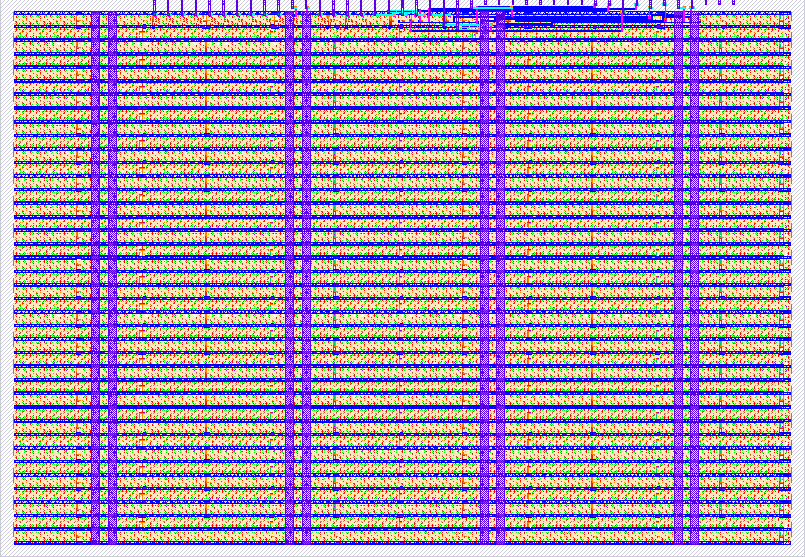

Design render

How it works

Binary up counter is interfaced using AND, OR and NOT logic gates to allow for the pattern sabba to be displayed on the 7-segment display by

How to test

Run the system at clock frequency of 1Hz and observe the output as it should should SAbbA

External hardware

List external hardware used in your project (e.g. PMOD, LED display, etc), if any

IO

#InputOutputBidirectional
0sevsegA
1sevsegB
2sevsegC
3sevsegD
4sevsegE
5sevsegF
6sevsegG
