11 First Design
11 : First Design
- Author: Nandana
- Description: logic gate simulation
- GitHub repository

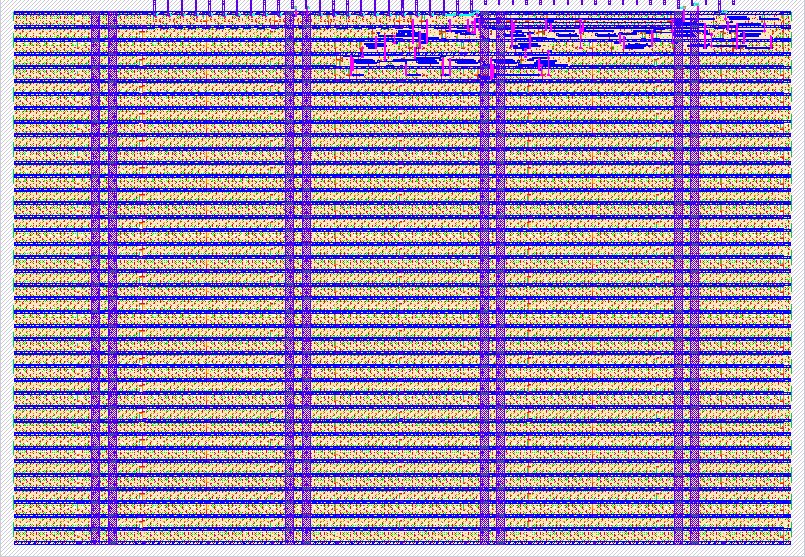

- Open in 3D viewer
- View in Wokwi
- Clock: 10000 Hz
How it works
When the input switches are pressed, a part of the 7 segment display lights up. In this project, only the input switches 5-8 display an output since an AND gate is used.
How to test
The project can be tested by switching the input switches on and off.
External hardware
Seven segment display
IO
| # | Input | Output | Bidirectional |
|---|---|---|---|
| 0 | input 1 | out 0 | |
| 1 | input 2 | ||
| 2 | input 3 | ||
| 3 | input 4 | ||
| 4 | input5 | out 4 | |
| 5 | input 6 | out 5 | |
| 6 | input 7 | out 6 | |
| 7 | input 8 | out 7 |
