902 Plane with a banner
902 : Plane with a banner
- Author: Vighnesh Sawant
- Description: Outputs a pleasant looking scene to VGA
- GitHub repository

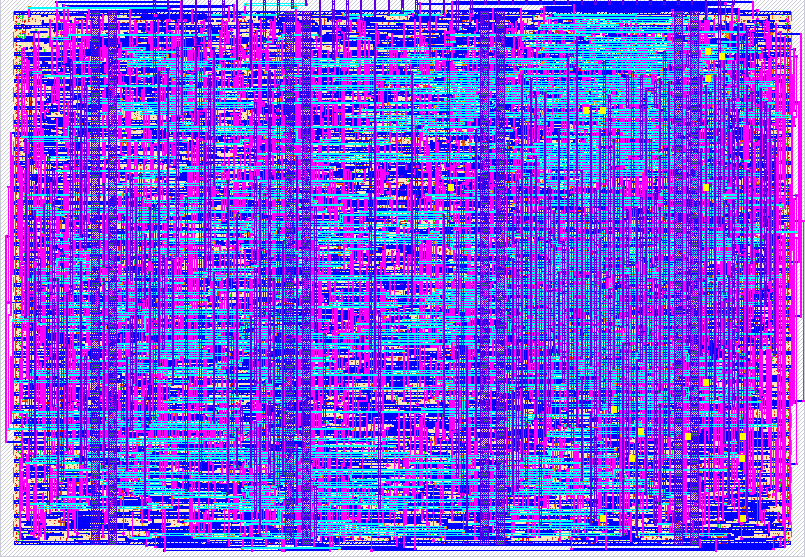

- Open in 3D viewer
- Open in VGA Playground
- Clock: 0 Hz
How it works
Does xor and add and magic
How to test
Plug in the TinyVGA PMOD and then plug in the montior, give it a reset signal and you should be good to go
External hardware
TinyVGA PMOD
IO
| # | Input | Output | Bidirectional |
|---|---|---|---|
| 0 | R1 | ||
| 1 | G1 | ||
| 2 | B1 | ||
| 3 | VSYNC | ||
| 4 | R0 | ||
| 5 | G0 | ||
| 6 | B0 | ||
| 7 | HSYNC |
