930 DDS Sine Chirp Beacon
930 : DDS Sine Chirp Beacon
- Author: Dheeraj Sharma
- Description: Fixed-tone / chirp / dual-tone DDS sine source with 8-bit sample and 1-bit PDM outputs
- GitHub repository

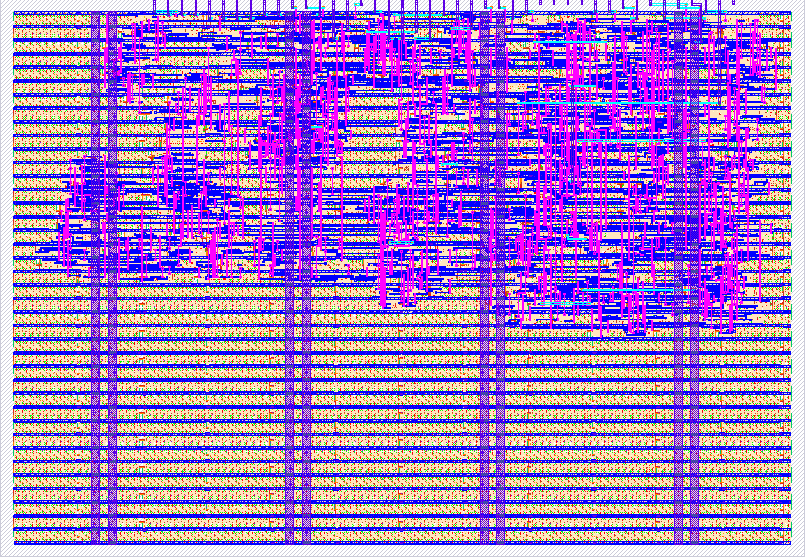

- Open in 3D viewer
- Clock: 1000000 Hz
DDS Sine Chirp Beacon
What it does
This project is a small direct digital synthesis (DDS) engine for Tiny Tapeout.
It can generate:
- a fixed sine tone
- a rising chirp
- a ping-pong chirp
- a dual-tone beacon
The design exposes the waveform in two ways:
uo_out[7:0]carries the current 8-bit sine sampleuio[0]carries a 1-bit PDM version of the same signal
That makes it useful as a tiny audio tone source, piezo driver reference, or resonance-finder / swept-sine exciter for simple experiments.
Why it is a good Tiny Tapeout project
- Purely digital, so it maps naturally onto the Tiny Tapeout flow
- Small architecture: one phase accumulator, a tiny LUT, and simple control logic
- Easy to demonstrate on a board with a resistor ladder, RC filter, piezo, logic analyzer, or LEDs
Modes
ui[7:6] selects the mode:
00= fixed sine01= rising chirp10= ping-pong chirp11= dual-tone beacon
ui[4:0] is the base pitch code.
ui[5] enables the generator.
uio[7:6] selects the sweep / toggle rate.
uio[5:4] selects chirp depth or the separation between the two beacon tones.
How it works
The core uses a 24-bit phase accumulator.
Every clock cycle, the current tuning word is added into the phase accumulator.
The top 6 bits of the phase select one of 64 values in a sine lookup table.
That produces an 8-bit waveform sample.
A simple first-order PDM stage converts that 8-bit sample into a 1-bit bitstream on uio[0].
The chirp modes vary the DDS tuning word slowly over time, which creates a swept-frequency tone.
That is the application angle of the project: it can be used to excite a resonant system or scan an audio
path and watch for the strongest response.
External hardware ideas
- R-2R DAC on
uo[7:0]for a parallel analog output - RC low-pass filter on
uio[0]for a 1-bit DAC - Piezo buzzer or amplifier input driven from
uio[0]through a buffer - Logic analyzer / LEDs on
uo[7:0]anduio[1:3]
Suggested demo
- Set
clock_hz: 1000000. - Connect
uo[7:0]to a simple resistor ladder, or connectuio[0]through an RC filter to an amplifier. - Try fixed-tone mode first.
- Switch to chirp mode and listen for resonances in a piezo, speaker, or filter setup.
IO
| # | Input | Output | Bidirectional |
|---|---|---|---|
| 0 | PITCH0 | SINE_DAC0 | PDM_OUT |
| 1 | PITCH1 | SINE_DAC1 | SQUARE_REF |
| 2 | PITCH2 | SINE_DAC2 | CHIRP_SYNC |
| 3 | PITCH3 | SINE_DAC3 | ENABLE_MON |
| 4 | PITCH4 | SINE_DAC4 | DEPTH0 / INTERVAL0 |
| 5 | ENABLE | SINE_DAC5 | DEPTH1 / INTERVAL1 |
| 6 | MODE0 | SINE_DAC6 | RATE0 |
| 7 | MODE1 | SINE_DAC7 | RATE1 |
