524 1V-LDO

524 : 1V-LDO

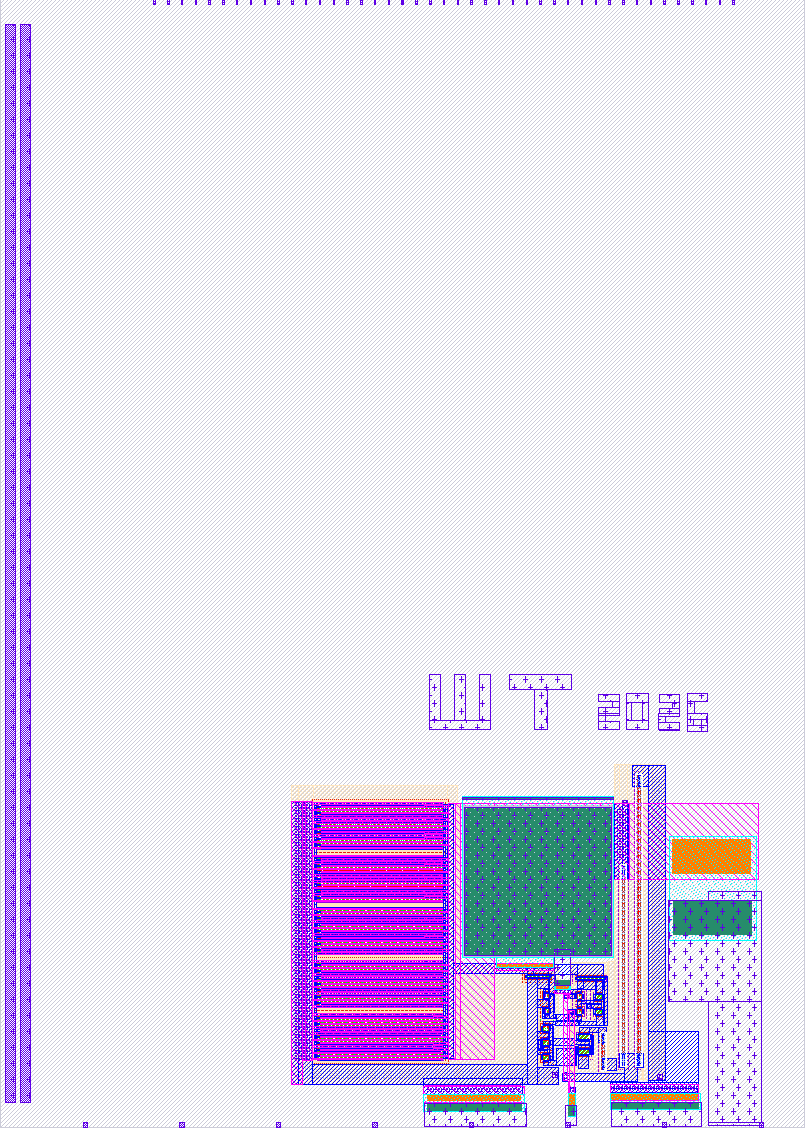

Design render

How it works

Just a low-drop out regulator that takes in 1.2V-3V on an analog pin and outputs 1V through another analog pin.

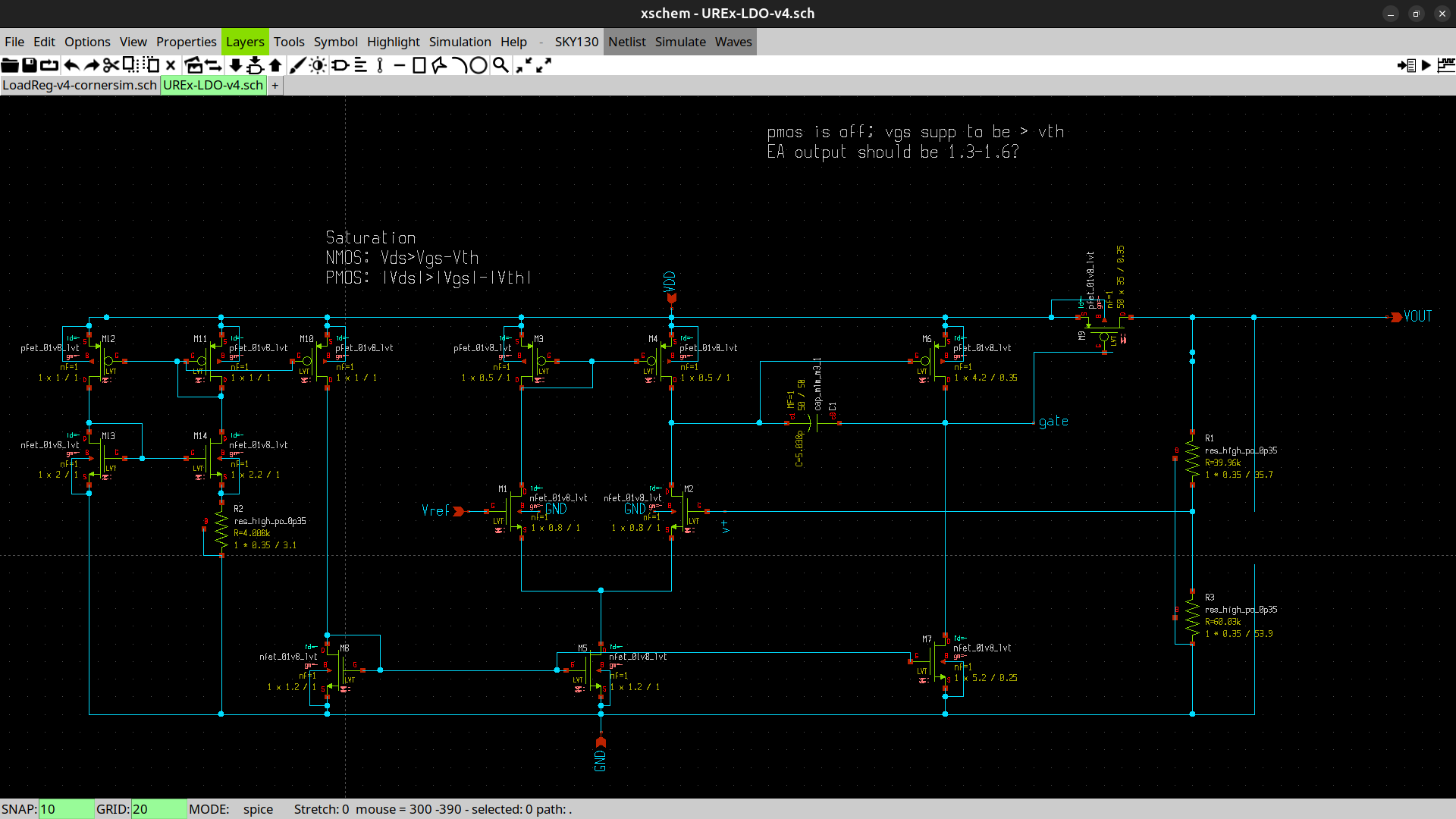

schematic

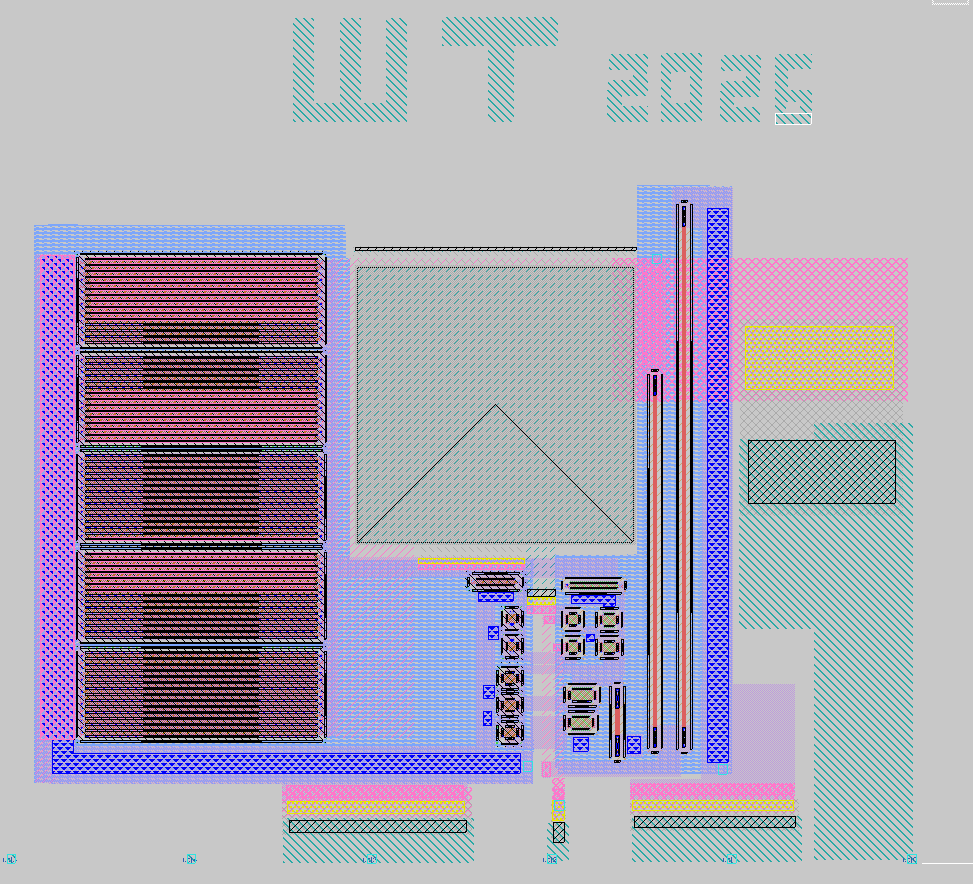

layout

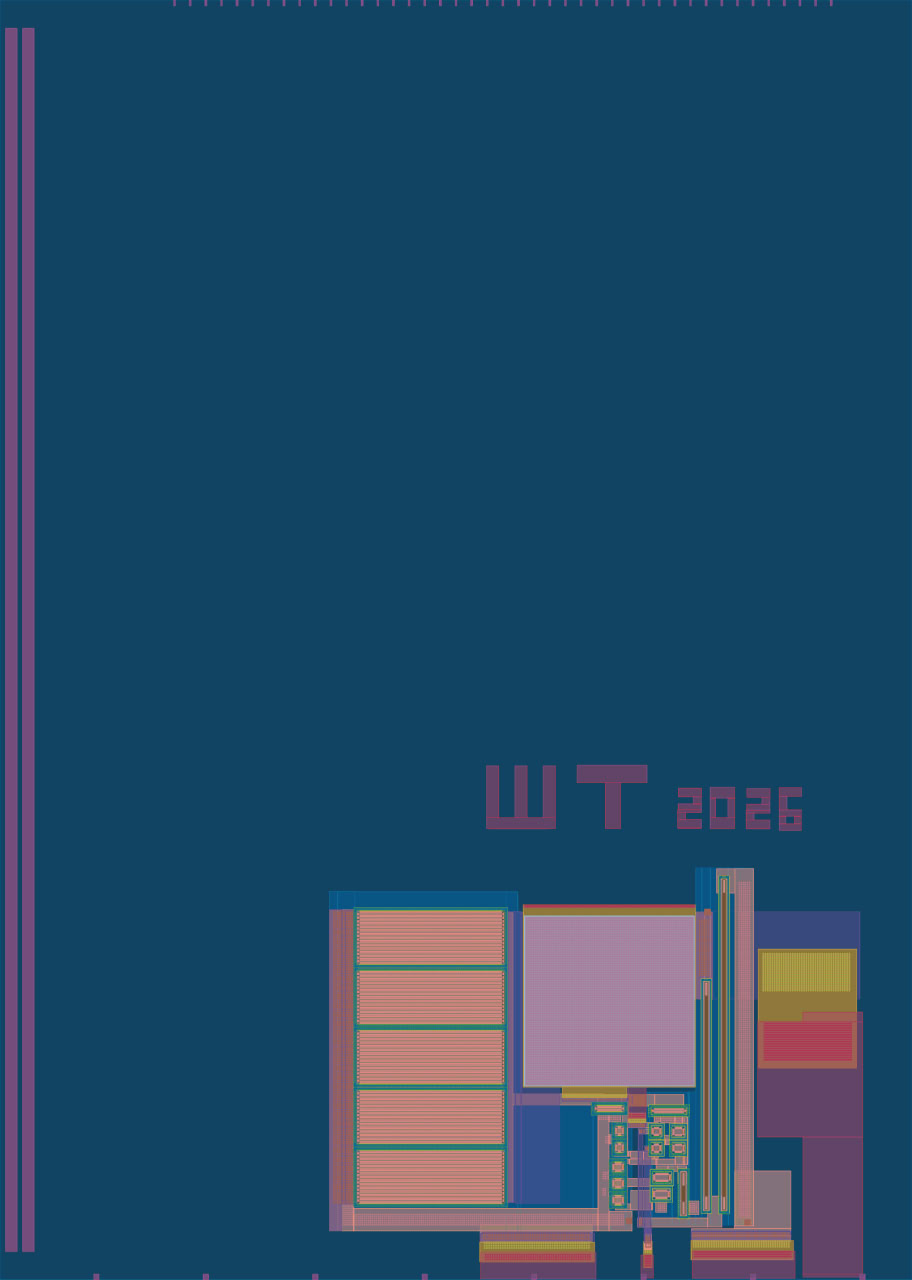

ttlayout

Its expected characteristics are:

  • output voltage: 1V
  • dropout voltage: 0.2V
  • maximum output current: 50mA
  • efficiency: 82% @Vin=1.2V, 55% @Vin=1.8V
  • max Vin: 4V
  • line regulation: 6.78mV/V
  • load regulation: 67mV/A

How to test

Connect Vin to your input voltage and Vref to 0.6V, Vout is the output voltage

External hardware

List external hardware used in your project (e.g. PMOD, LED display, etc), if any

IO

#InputOutputBidirectional
0
1
2
3
4
5
6
7

Analog pins

uaPCB PinInternal indexDescription
0B06Vin
1B17Vref
2B39GND
3B28Vout
