550 Tiny_Divider

550 : Tiny_Divider

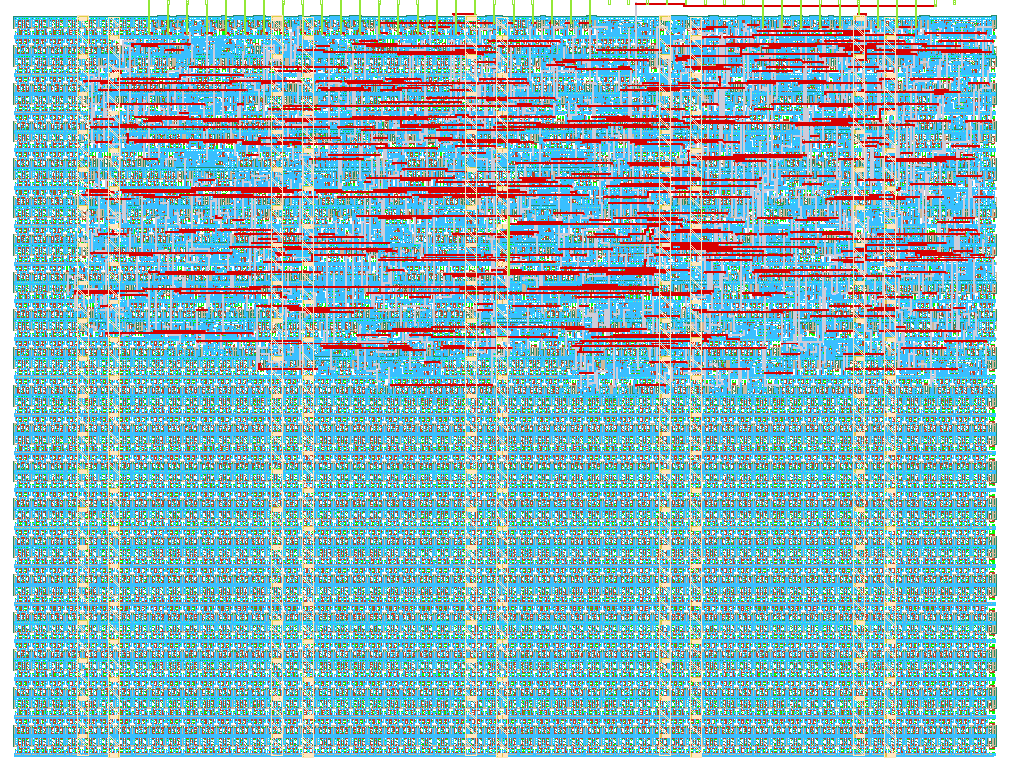

Design render

How it works

The Input is via the 8 switches, where [0 to 5] are binary inputs for both nominator and denominator and [6] is a hold, [7] is the toggle to toggle nominator/Denominator.

How to test

(Will be explained later)

External hardware

N/A

More Info will follow. - OzelHD

IO

#InputOutputBidirectional
0Binary 1Display
1Binary 2Display
2Binary 3Display
3Binary 4Display
4Binary 5Display
5Binary 6Display
6KeepDisplay
7Nom/Denom ToggleDisplay
