611 Barrel Shifter

611 : Barrel Shifter

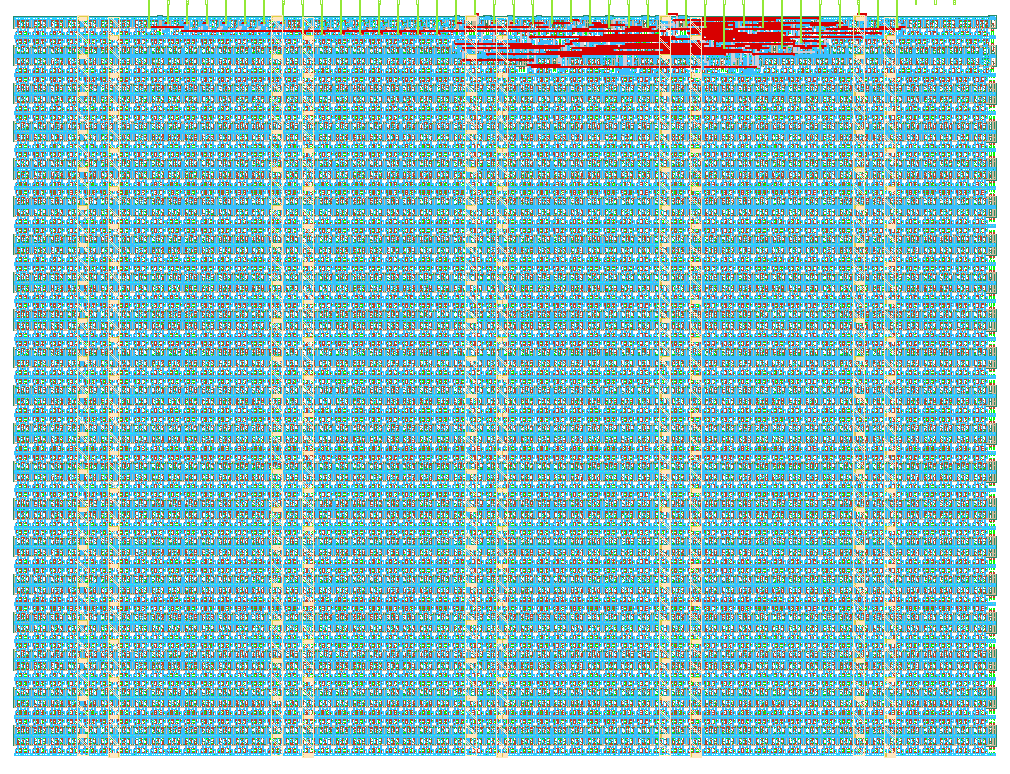

Design render

How it works

A barrel shifter shifting input but 1 bit, 2 bit, or 4 bit based on the control signal.

How to test

Input Bits and a control signal and you should notice the output shifts by a certain bits based on the control signal.

External hardware

You may use LEDs for visualization.

IO

#InputOutputBidirectional
0b0b7
1b1b8
2b2b9
3b3b10
4b4b11
5b5b12
6b5b13
7b6b14
