619 4x4NPU: Dual-Lane INT4 Neural Accelerator
619 : 4x4NPU: Dual-Lane INT4 Neural Accelerator
- Author: Maadeshwar
- Description: Host-controlled IHP SG13G2 INT4 neural accelerator with two parallel MAC lanes, saturation, ReLU, and accumulator readback.
- GitHub repository
- Open in 3D viewer
- Open in Tiny Tapeout Explorer
- Clock: 50000000 Hz

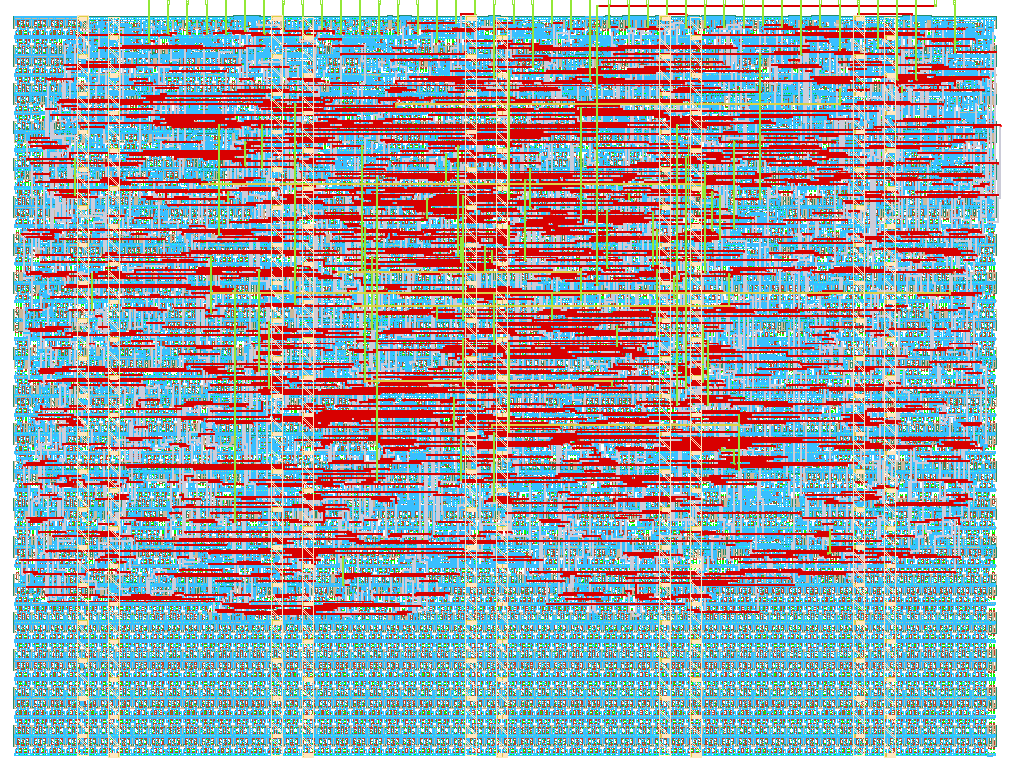

4x4NPU specification
4x4NPU is a host-controlled two-lane signed INT4 neural datapath targeting a single IHP SG13G2 Tiny Tapeout tile. It uses a three-process controller FSM:
IDLEcaptures one command and its operands.EXECperforms the command and updates the datapath.DONEreturns the controller toIDLEand provides a clean command-cycle boundary.
Datapath
ui_in[3:0] is a signed INT4 activation. ui_in[7:4] is lane-0's signed
INT4 weight. uio_in[7:4] is lane-1's signed INT4 weight during MAC.
Each accepted MAC command updates both independent signed 16-bit accumulators.
Products are exact signed INT4 products and accumulators saturate at -32768 and
+32767. Overflow is sticky until CLEAR or reset.
Commands
uio_in[2:0] selects the command and uio_in[3] qualifies it:
| Command | Name | Function |
|---|---|---|
| 000 | NOP | No operation |
| 001 | CLEAR | Clear biases, accumulators, result, and overflow |
| 010 | BIAS_LOW | Load the low bias nibble for the lane selected by ui_in[0] |
| 011 | BIAS_HIGH | Combine the high nibble with the stored low nibble as signed INT8 bias |
| 100 | MAC | Accumulate both lane products |
| 101 | FINISH_RELU | ReLU, arithmetic shift, and signed INT4 saturation |
| 110 | FINISH_LINEAR | Arithmetic shift and signed INT4 saturation |
| 111 | READ_ACC | Read one accumulator nibble selected by uio_in[5:4] |
The parameter field is uio_in[7:4]. For FINISH_*, it is the arithmetic
right-shift amount. For READ_ACC, its low two bits select accumulator nibble
0 through 3. For bias commands, it carries the bias nibble.
Outputs
uo_out[3:0] is the quantized result or accumulator nibble. uo_out[4] is a
one-cycle DONE indication for finish/read commands. uo_out[5] is sticky
overflow, uo_out[6] is the selected accumulator sign, and uo_out[7] is
RESULT_VALID.
All bidirectional pads are input-only (uio_oe = 0) to avoid contention with
the host board.
Applications
The block can execute quantized neural layers, two-neuron perceptrons, small convolution/dot-product kernels, sensor-feature classifiers, and compact DSP filters. Training and quantization remain off-chip; the fabricated chip performs the deterministic INT4 inference arithmetic.
Verification boundary
The project includes Cocotb RTL tests and Tiny Tapeout IHP130 GDS/precheck/ gate-level workflows. Final silicon claims require all CI jobs, STA, DRC, LVS, and post-fabrication measurements to pass.
IO
| # | Input | Output | Bidirectional |
|---|---|---|---|
| 0 | activation[0] / lane select | INT4 result bit 0 | command bit 0 |
| 1 | activation[1] | INT4 result bit 1 | command bit 1 |
| 2 | activation[2] | INT4 result bit 2 | command bit 2 |
| 3 | activation[3] | INT4 result bit 3 | command valid |
| 4 | weight lane 0 bit 0 | DONE | weight lane 1 / parameter bit 0 |
| 5 | weight lane 0 bit 1 | OVERFLOW | weight lane 1 / parameter bit 1 |
| 6 | weight lane 0 bit 2 | accumulator negative | weight lane 1 / parameter bit 2 |
| 7 | weight lane 0 bit 3 | RESULT_VALID | weight lane 1 / parameter bit 3 |
