585 CRC-8 Serial LFSR
585 : CRC-8 Serial LFSR
- Author: Mena Emil
- Description: 8-bit serial LFSR-based CRC generator/checker, seed 8'hD8, LSB-first data shift-in
- GitHub repository

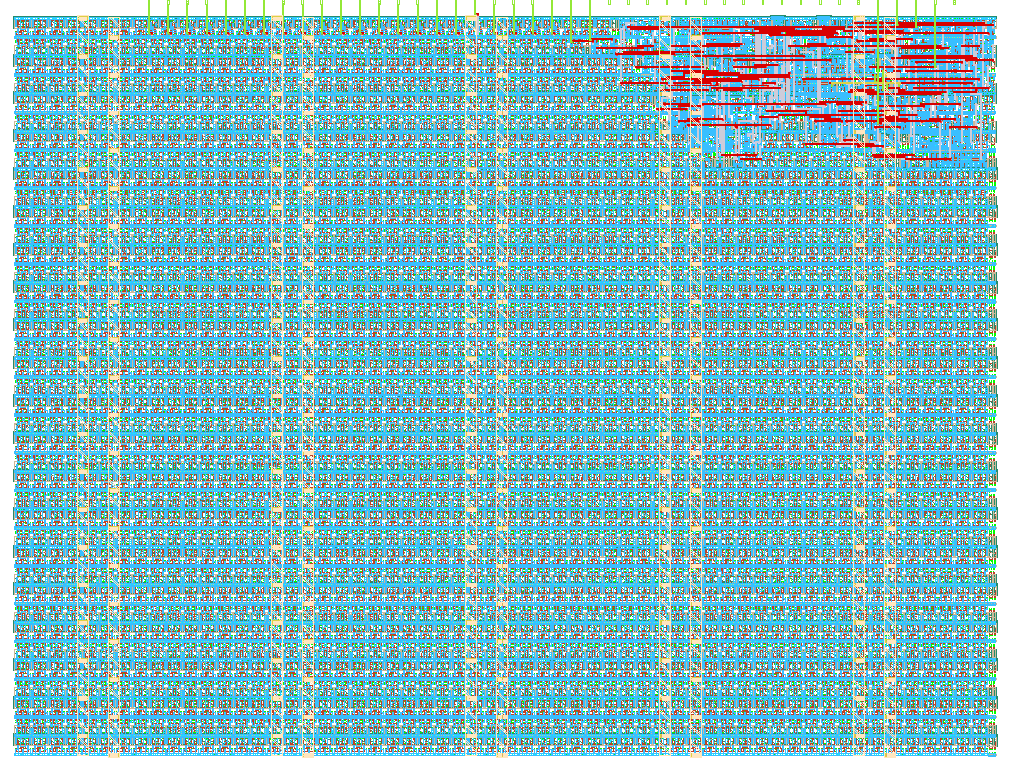

- Open in 3D viewer
- Open in Tiny Tapeout Explorer
- Clock: 10000000 Hz
How it works
This is an 8-bit Linear Feedback Shift Register (LFSR) used as a serial
CRC-8 generator/checker. The register (R7..R0) is seeded with 8'hD8
on reset, with two internal XOR feedback taps (between R7/R6 and
R3/R2). The feedback signal is Feedback = DATA_in ^ R0.
While ui_in[1] (ACTIVE) is high, one bit of ui_in[0] (DATA) is shifted
in per clock, LSB first, XORed into the feedback path. After 8 clocks (one
full byte), the register holds the CRC remainder.
Once ACTIVE drops low, the register shifts itself out serially for 8
clocks — R0 first — while uo_out[1] (Valid) is held high on uo_out[0]
(CRC). Valid drops low again once all 8 bits have been shifted out.
How to test
The automated Cocotb test is in test/test.py. From the test directory
run:
make
The test runs the 10 test cases from DATA_h.txt and Expec_Out_h.txt. For each byte, it resets the design, shifts the data byte in LSB-first while holding ACTIVE high, waits for Valid, and checks the 8 output CRC bits against the expected value.
External hardware
None. This project uses only the TinyTapeout dedicated I/O pins
(ui_in[0], ui_in[1], uo_out[0], uo_out[1]) — no PMOD, display, or
other external hardware is required, either in simulation or on the
fabricated chip.
IO
| # | Input | Output | Bidirectional |
|---|---|---|---|
| 0 | DATA - serial input data bit (LSB first) | CRC - serial CRC output bit | |
| 1 | ACTIVE - high while DATA is being shifted in | Valid - high while CRC bits are being shifted out | |
| 2 | |||
| 3 | |||
| 4 | |||
| 5 | |||
| 6 | |||
| 7 |
