How it works

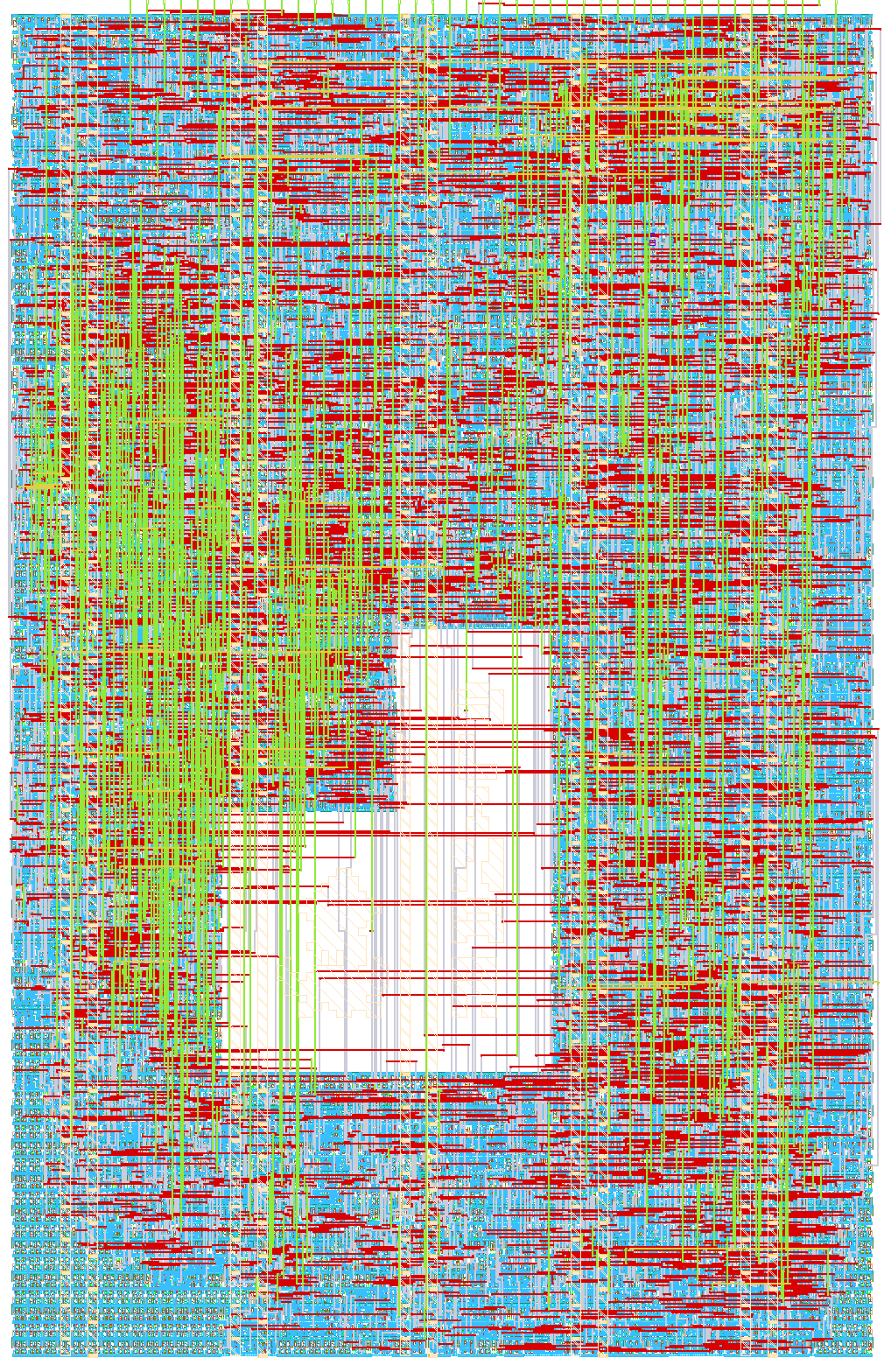

Kraken IO Subprocessor (mini) is a two-tile, RP2040-PIO-compatible programmable I/O block for Tiny Tapeout. It runs short programs compiled with pioasm and is meant for bit-banged protocols (UART, SPI, WS2812, and similar) without tying up a host CPU.

The design contains:

One PIO state machine with an 8-word instruction memory (IMEM), 2-bit GPIO (uo[1:0]), TX/RX shift registers, and depth-2 TX/RX FIFOs.
A pin loader for programming IMEM and SM configuration without a system bus. Set uio[7]=1 to enter config mode; set uio[7]=0 for run mode.
A runtime clock divider so the SM can run slower than the chip clock.

Instruction encoding and opcodes match the RP2040 PIO (JMP, WAIT, IN, OUT, PUSH/PULL, MOV, IRQ, SET). The SM fetches from IMEM, executes one instruction per enabled clock (after optional delay cycles), drives the two GPIO outputs, and can shift data to/from the host through the FIFO interface.

Pin loader (config mode, `uio[7]=1`)

Pulse uio[0] (rising edge) to apply the operation, with payload bytes on ui[7:0]:

Encoding	Operation	Details
`uio[6]=0`	IMEM write	`uio[4:2]` = address (8 words), `uio[1]` = half, `uio[0]` = strobe. Low byte on first strobe (`half=0`), high byte on second (`half=1`). Latch addr/half while `strobe=0`.
`uio[6]=1`	Other ops	`uio[5:3]` = op code, `uio[0]` = strobe

`uio[5:3]`	Operation	`ui[7:0]` meaning
1	EXEC wrap	`ui[3:0]` = wrap bottom, `ui[7:4]` = wrap top (low 3 bits used)
2	PIN config	Set/out/sideset counts, side-set enable, side-set pindir
3	CLKDIV low	Low byte of 16-bit divider
4	CLKDIV high	High byte of 16-bit divider
5	SHIFT	Input/output shift direction, autopush, autopull
6	THRESH	Push/pull bit thresholds
7	INPIN	Input base pin and jump pin

Run mode (`uio[7]=0`)

Pin	Role
`ui[1:0]`	GPIO inputs to the SM
`ui[7:0]`	TX FIFO data (e.g. UART TX bytes)
`uio[0]`	`tx_push` — rising edge pushes `ui[7:0]` when FIFO not full
`uio[1]`	`sm_enable` (with `ena`) — SM runs when high
`uio[2]`	`sm_restart` — rising edge clears SM and FIFOs
`uio[3]`	`rx_pop` — rising edge pops RX FIFO into a host-visible latch
`uio[4]`	RX hold acknowledge — clears latched RX byte on `uo_out`
`uo[1:0]`	PIO GPIO outputs
`uo[2]`	`tx_full`
`uo[3]`	`rx_empty`
`uo[7:4]`	IRQ flags (when no latched RX byte)
`uo[7:0]`	Latched RX byte (after `rx_pop`, until `uio[4]` ack)

How to test

RTL simulation

From the test/ directory (requires pioasm on PATH, or macOS pico-sdk-tools):

make assemble   # hello_world.pio → generated/hello_world.hex
make -B         # cocotb: pin-load IMEM, enable SM, check uo[0] square wave

The default test loads a two-instruction SET-pin square wave through config mode (uio[7]=1), then enables the SM in run mode and checks uo[0] toggles 1,1,0,0,....

On silicon (Tiny Tapeout IHP demo board)

Select this design on the chip multiplexer (reset sel_rst_n, pulse sel_inc to your project address).
Hold reset (rst_n low), then release.
Program the SM in config mode (uio[7]=1): write IMEM words, set wrap/clock divider/shift thresholds, then leave config mode (uio[7]=0).
Run: drive uio[1]=1 (sm_enable). Pulse uio[2] once if you need a clean restart.
UART TX example: load a standard 8N1 UART TX pioasm program with wrap covering your program range, set clkdiv for your baud rate, then for each byte place it on ui[7:0] and pulse uio[0]. Watch uo[2] (tx_full) before pushing; serial data appears on uo[0] (or whichever OUT pin your program uses).
UART RX example: connect the incoming serial line to the GPIO input used by your program (ui[0] or ui[1]). When data arrives, pulse uio[3] to latch a received byte on uo[7:0], read it from the host, then pulse uio[4] to release the latch. Check uo[3] (rx_empty) before popping.

Monitor uo[7:4] for IRQ flags if your program uses irq instructions.

Gate-level simulation (after hardening): copy the generated netlist to test/gate_level_netlist.v and run make -B GATES=yes.

External hardware

Tiny Tapeout IHP demo / breakout board and a 3.3 V host microcontroller (RP2040, Arduino, ESP32, etc.) to select the design, bit-bang the config loader, and drive run-mode control pins.
For UART: a USB–serial adapter or logic analyzer on the PIO TX output (uo[0] or uo[1], depending on your program). For RX testing, tie the adapter’s TX to the PIO input pin, or loop TX back to RX on the breadboard.
Optional: LEDs or a scope on uo[1:0] to visualize bit-banged waveforms (WS2812, SPI, etc.).

No PMOD or dedicated daughterboard is required; all control and data paths use the standard Tiny Tapeout ui / uo / uio pins.

#	Input	Output	Bidirectional
0	gpio_in (also LSBs of TX byte when pushing) / TX byte for UART programs	PIO GPIO out	tx_push (rising edge)
1	gpio_in (also LSBs of TX byte when pushing) / TX byte for UART programs	PIO GPIO out	sm_enable (level, with ena)
2	TX byte for UART programs	tx_full	sm_restart (rising edge)
3	TX byte for UART programs	rx_empty	rx_pop (rising edge)
4	TX byte for UART programs	irq_flags[3:0] (or full uo[7:0]=rx byte when rx_hold_valid)	rx_hold ack (clear latched RX byte on uo)
5	TX byte for UART programs	irq_flags[3:0] (or full uo[7:0]=rx byte when rx_hold_valid)	config-mode select
6	TX byte for UART programs	irq_flags[3:0] (or full uo[7:0]=rx byte when rx_hold_valid)	config-mode select
7	TX byte for UART programs	irq_flags[3:0] (or full uo[7:0]=rx byte when rx_hold_valid)	config-mode select
