iTALU: Interactive Testable Arithmetic Logic Unit

Project Overview

iTALU is an 8-bit Arithmetic Logic Unit (ALU) with comprehensive Design-for-Testability (DFT) features, designed for Tiny Tapeout using the IHP SG13G2 (130nm) technology. The project demonstrates industry-standard testing techniques — scan chain, LFSR/MISR-based BIST, and fault injection — with a simple serial user interface.

Key Features

8-bit ALU with 16 operations (arithmetic, logic, shifts/rotates, compare, min/max, saturating arithmetic)
4 status flags (Zero, Carry, Negative, Overflow)
20-bit serial instruction interface (LSB first)
64-bit scan chain covering all internal state
Built-In Self-Test (BIST) with 8-bit LFSR pattern generator and 8-bit MISR response compactor (256 patterns per run)
User-controlled fault injection: stuck-at-0/1, inversion, coupling
Status readback mux: flags/BIST status, MISR signature, fault counter, cycle counter

Specifications

Parameter	Value
Technology	IHP SG13G2 (130nm)
Tile Size	1x1
Clock Frequency	50 MHz (tested), no hard requirement
Top Module	`tt_um_italu`
I/O Pins	8 input, 8 output, 8 bidirectional

Architecture

                    +---------------------------------------------+
                    |                  tt_um_italu                |
                    |                                             |
 ui_in[0] DATA ---->| +------------------+   +-----------------+   |
 ui_in[1] LOAD ---->| | Serial           |   | Normal ALU      |   |
 ui_in[2] EXEC ---->| | Instruction Reg  |-->| + Result/Flags  |-->| uo_out = result
                    | | (20b, LSB first) |   +-----------------+   |
                    | +--------+---------+                         |
                    |          |                                   |
                    |          v   +-----------------+             |
                    | +------->|   | Direct Exec ALU |             |
                    | |        |   +-----------------+             |
                    | |  +-----+---------+                         |
                    | |  | Fault Injector|--+ (SA0/SA1/invert/couple)
                    | |  +---------------+                         |
 uio_in fault cfg ->| |                                            |
                    | v                                            |
                    | +------------------+   +-----------------+   |
 ui_in[7] START --->| | BIST FSM         |   | LFSR -> MISR    |   |
                    | | IDLE/LOAD/EXEC/  |<->| 256 patterns    |   |
                    | | DONE             |   | golden sig 0x93 |   |
                    | +------------------+   +-----------------+   |
                    |                                              |
 ui_in[3] CAPTURE ->| +------------------+   +-----------------+   |
 ui_in[6] SHIFT --->| | 64-bit Scan Chain|   | Status Mux      |-->| uio_out
                    | +------------------+   +-----------------+   |
                    +---------------------------------------------+

ALU Operations

Code	Operation	Description
0x0	ADD	A + B with carry out
0x1	SUB	A - B (carry = no borrow)
0x2	AND	Bitwise AND
0x3	OR	Bitwise OR
0x4	XOR	Bitwise XOR
0x5	NOT	Bitwise NOT of A
0x6	SHL	Logical shift A left by 1
0x7	SHR	Logical shift A right by 1
0x8	SAR	Arithmetic shift A right by 1
0x9	ROL	Rotate A left by 1
0xA	ROR	Rotate A right by 1
0xB	SLT	Signed less-than: 1 if A < B else 0
0xC	MIN	Unsigned minimum of A and B
0xD	MAX	Unsigned maximum of A and B
0xE	SATADD	Saturating signed add (clamps at 0x7F / 0x80)
0xF	SATSUB	Saturating signed subtract (clamps at 0x7F / 0x80)

Status Flags

With STATUS_SEL = 00, uio_out[3:0] shows:

Flag	Bit Position	Description
Zero (Z)	bit 0	Result is 0x00
Carry (C)	bit 1	Carry out (ADD) or no borrow (SUB)
Negative (N)	bit 2	MSB of result is 1
Overflow (O)	bit 3	Signed arithmetic overflow

The same select also reports [4] = BIST done, [5] = BIST pass and [6] = scan out.

Design-for-Testability (DFT) Implementation

1. Serial Instruction Interface

A 20-bit shift register is filled LSB first while LOAD_EN is high:

[19:16] opcode
[15:8]  operand B
[7:0]   operand A

Pulsing EXECUTE latches the operands/op into the normal ALU registers and stores the (possibly fault-injected) result and flags.

2. Scan Chain

A single 64-bit chain captures all internal state:

operand_a(8) -> operand_b(8) -> operation(4) -> alu_result(8) ->
flags Z/C/N/O(4) -> misr(8) -> bist_done(1) -> test_pass(1) ->
fault_counter(8) -> cycle_counter(8) -> padding(6)

SCAN_CAPTURE (ui_in[3]) loads the chain from live state in one clock
SCAN_SHIFT (ui_in[6]) shifts one bit per clock onto SCAN_OUT (uio_out[6]), LSB first

3. Built-In Self-Test (BIST)

+-----------+    +----------------+    +-----------+
|   LFSR    |--->|      ALU       |--->|   MISR    |
|  Pattern  |    |  (Under Test)  |    | Response  |
| Generator |    |  Reference     |    | Compactor |
+-----------+    +-------+--------+    +-----------+
                         |
                   +-----v-----+
                   | Comparator|----> pass/fail + fault counter
                   +-----------+

8-bit LFSR generates operand A; operand B is a nibble-swap of A; the opcode comes from the low nibble of the LFSR value
256 patterns run automatically (IDLE → LOAD → EXEC → DONE FSM)
Responses are compacted into an 8-bit MISR
Fault-free golden MISR signature: 0x93
On completion BIST_DONE (uio_out[4]) asserts and stays asserted until the next BIST_START, so it can be polled reliably
TEST_PASS (uio_out[5]) is high on a fault-free run, low when any mismatch or active fault injection was observed
Detected faults increment an 8-bit fault counter (STATUS_SEL = 10)

4. Fault Injection

Configured via uio_in while the status output is driven:

Field	Pins	Values
Enable	`uio_in[0]`	1 = inject
Type	`uio_in[2:1]`	00 = stuck-at-0, 01 = stuck-at-1, 10 = inversion, 11 = coupling
Bit	`uio_in[5:3]`	Result bit 0–7 the fault applies to

The injected fault affects the normal ALU path, the serial-execution path and the BIST comparison simultaneously — so a faulted chip fails its own self-test, which is the core demonstration of the DFT flow.

5. Status Readback Multiplexer

`STATUS_SEL` (`uio_in[7:6]`)	`uio_out` content
00	Flags + BIST done/pass + scan out
01	MISR signature
10	Fault counter
11	Free-running cycle counter

Pin Configuration

Input Pins (ui_in)

Pin	Name	Description
ui_in[0]	DATA_IN	Serial data input for instruction loading
ui_in[1]	LOAD_EN	Shift one bit into the instruction register
ui_in[2]	EXECUTE	Execute the loaded instruction
ui_in[3]	SCAN_CAPTURE	Capture state into the scan chain
ui_in[4]	—	Unused
ui_in[5]	—	Unused
ui_in[6]	SCAN_SHIFT	Shift the scan chain one bit per clock
ui_in[7]	BIST_START	Start a BIST run

Output Pins (uo_out)

Pin	Name	Description
uo_out[7:0]	RESULT	8-bit ALU result

Bidirectional Pins (uio)

Inputs (fault configuration / status select):

Pin	Name	Description
uio[0]	FAULT_ENABLE	Fault injection enable
uio[2:1]	FAULT_TYPE	Fault type selection
uio[5:3]	FAULT_BIT	Faulted result bit
uio[7:6]	STATUS_SEL	Status output select

Outputs (status, selected by STATUS_SEL):

Pin	Select 00	Select 01	Select 10	Select 11
uio[7:0]	Flags/BIST/scan-out	MISR	Fault counter	Cycle counter

How to Test

RTL Simulation

Requires cocotb and Icarus Verilog:

cd test
make -B

This runs the full 11-test regression against src/project.v, producing results.xml and an FST waveform. See test/README.md for gate-level simulation and waveform viewing.

Regression Coverage

#	Test	What it verifies
1	`test_add`	Basic ADD: 0x0F + 0x03 = 0x12
2	`test_sub`	Basic SUB: 0x0A - 0x05 = 0x05
3	`test_all_alu_operations`	All 16 opcodes vs a Python reference model
4	`test_alu_flags`	Zero/Carry/Negative/Overflow flag generation
5	`test_normal_fault_injection`	Injected fault changes the ALU result
6	`test_bist_pass`	Fault-free BIST completes, passes, MISR = 0x93
7	`test_bist_fault_detection`	All 4 fault types detected by the BIST
8	`test_fault_counter`	Fault counter increments on detected faults
9	`test_scan_chain`	Capture + shift returns operands correctly
10	`test_cycle_counter`	Cycle counter advances with the clock
11	`test_complete_system`	End-to-end: ALU, clean BIST, fault detection

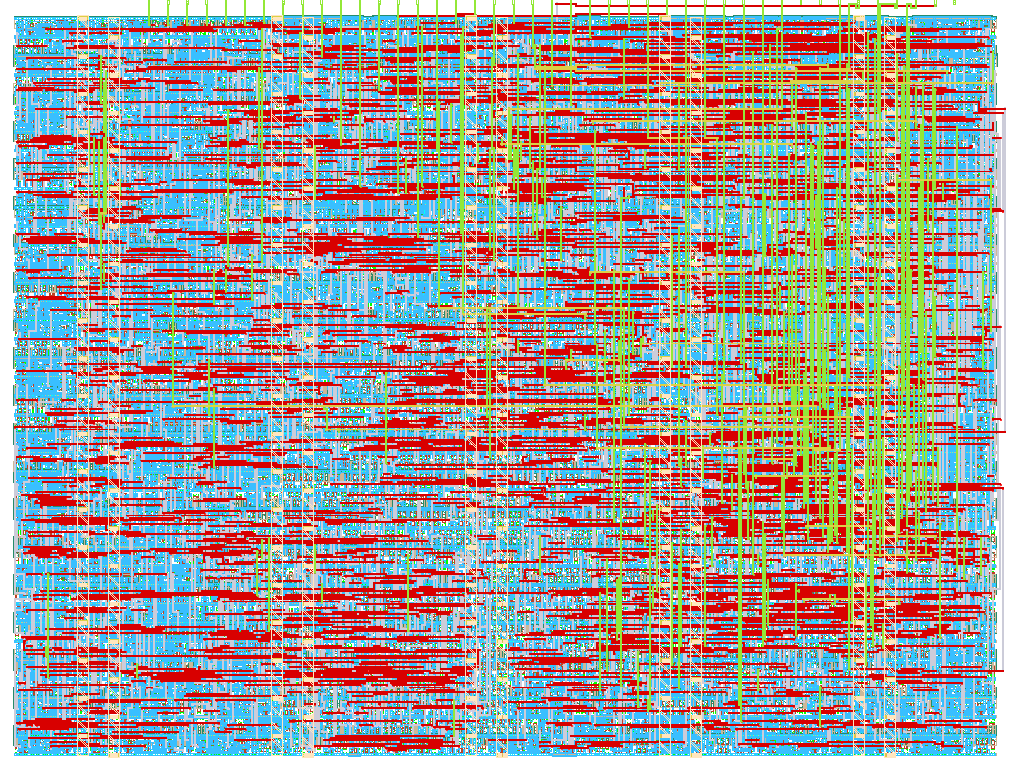

Status: 11/11 passing, GDS hardened successfully with LibreLane.

Manual Testing on Hardware

Basic operation:

Reset the chip (rst_n = 0, then release).
Shift a 20-bit instruction in LSB first via DATA_IN/LOAD_EN.
Pulse EXECUTE; read the result on uo_out and the flags on uio_out.

Self-test:

Pulse BIST_START.
Poll uio_out until bit 4 (BIST done) is high.
Check bit 5 (pass/fail) and optionally read the MISR via STATUS_SEL = 01.

Fault demonstration:

Set FAULT_ENABLE with a type/bit combination on uio_in.
Re-run the BIST; TEST_PASS now goes low and the fault counter (STATUS_SEL = 10) increments.

Scan:

Pulse SCAN_CAPTURE, then clock SCAN_SHIFT 64 times reading SCAN_OUT.

External Hardware

No external hardware is strictly required — everything can be driven by a microcontroller or FPGA over the serial interface. For standalone bench use: push buttons/DIP switches for ui_in, LEDs or a logic analyzer on uio_out, and an LED bus or MCU reading uo_out.

License

This project is licensed under Apache-2.0.

Acknowledgments

Tiny Tapeout for providing the platform
IHP for the SG13G2 PDK
Open source EDA community
