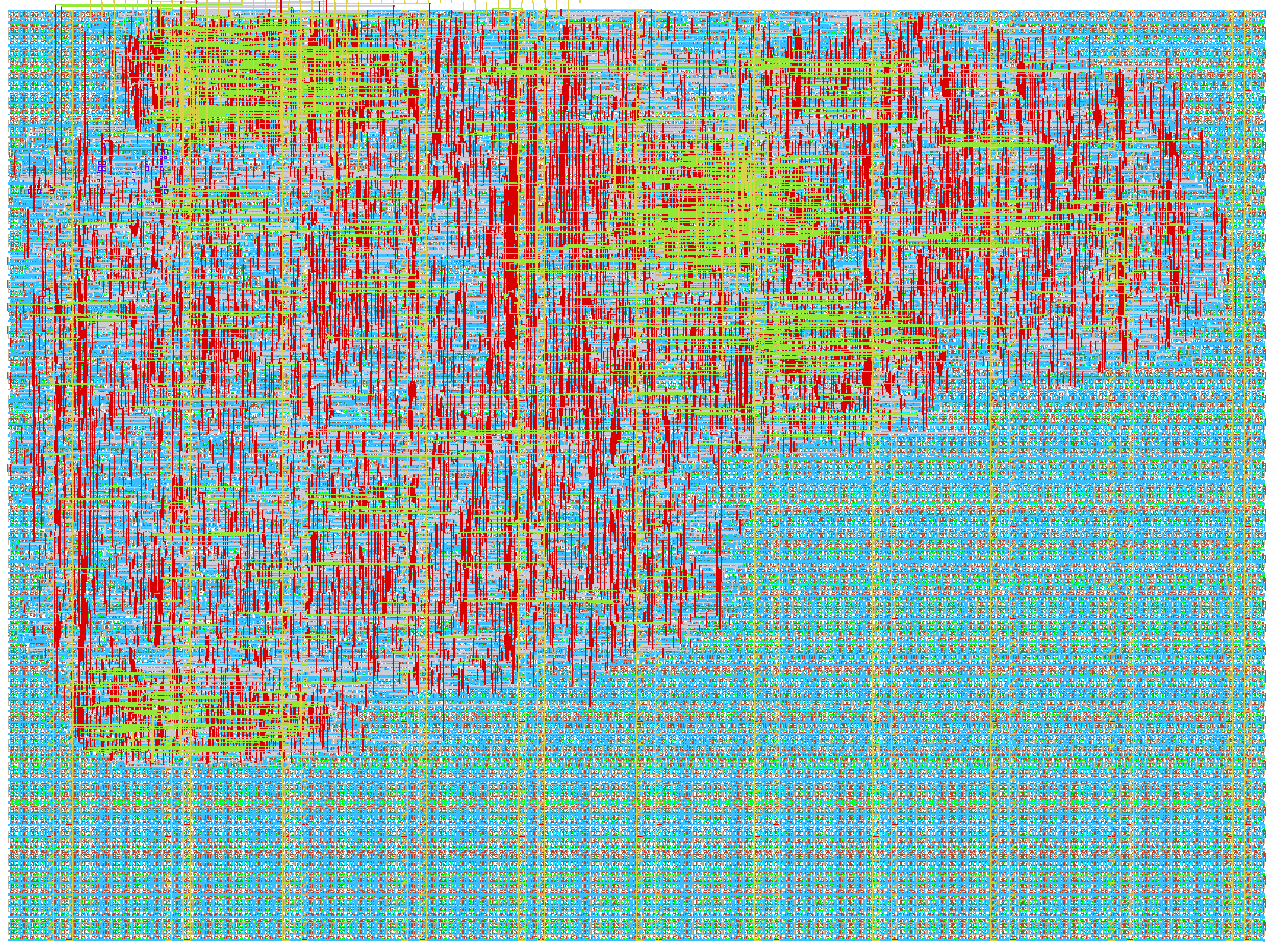

Intro

Curly / Medieval presents

Sequential Shadows logo

my contribution to the Tiny Tapeout 8 demo competition. Code, graphics, and music by Curly (Toivo Henningsson) of Medieval.

This is the deluxe version, with Pmod VGA RGB444 output support and a few changes from the original, in 2x2 tiles compared to the original's 1x2.

How to test

Plug in a TinVGA compatible Pmod on the TT08 demo board's out Pmod. Plug in a Pmod compatbile with Mike's audio Pmod compatible Pmod on the TT08 demo board's bidir Pmod. Set all inputs to zero to get the default behavior. Warning: The default behavior includes some flashing ligts. Set v_bass_off and v_drums_off (keep ui_in at 3 instead of 0) to remove flashing. The demo starts directly after reset.

This demo is best viewed with the monitor rotated 90 degrees, with the left side facing down.

Inputs

There is no guarantee that changing the inputs after reset is released works as intended, but it probably does. Some of the inputs provide options on how the demo is run:

v_bass_off: Setting this high reduces flashing, but also turns off the bass in some parts.
v_drums_off: Setting this high reduces flashing, but also turns off the drums in some parts.
v_bass_low: Setting this high keeps the bass at its default octave during the entire demo, and increases flashing.
pause: While this is high, the demo is paused and the sound is turned off.
step_frame: While this is high, the the demo advances one frame per cycle. Used for testing.
rgb444_mode: Setting this high sets the output to RGB444 mode instead of the default RGB222
pmod_vga_pinout: Setting this high enables the alternative Pmod VGA pinout.
- The t_ outputs are used when pmod_vga_pinout is low. This fits the TinyVGA Pmod pinout. (p_ only outputs are not driven.)
- The p_ outputs are used when pmod_vga_pinout is high. This fits the Pmod VGA pinout.
logo_shadow_off: When high, removes the logo's shadow (like in the non-deluxe version).

If using A Pmod VGA as output, set rgb444_mode unless you want the original RGB222 experience.

For the demo competition, set pmod_vga_pinout and rgb444_mode if you have a Pmod VGA, and please consider if you can still hook up the sound. Don't set any of the other inputs.

External hardware

This project needs

either
- a TinVGA VGA Pmod.
- Mike's audio Pmod.
or a Pmod VGA
- There is no ready option to output the audio in this case, but it's still present on the same pins, so you may be able to get it out with some creative wiring, and e g feed it to Mike's audio Pmod.

The choice of pinout is controlled by the pmod_vga_pinout input.

#	Input	Output	Bidirectional
0	v_bass_off	t_R1 / p_R0	p_G0
1	v_drums_off	t_G1 / p_R1	p_G1
2	v_bass_low	t_B1 / p_R2	p_G2
3	pause	t_vsync / p_R3	p_G3
4	rgb444_mode	t_R0 / p_B0	p_hsync
5	pmod_vga_pinout	t_G0 / p_B1	p_vsync
6	logo_shadow_off	t_B0 / p_B2	audio_out_n
7	step_frame	t_hsync / p_B3	audio_out
