Tiny Tapeout 2

Design details

Launch stats

  • Launched: 9 November 2022
  • Submission closed: 2 December 2022
  • Submitted to Efabless 2211Q chipIgnite shuttle using Skywater 130nm open source PDK
  • Chips expected September 2023, PCBs expected November 2023
  • Chips shipped early Feb 2024.

Project statistics

  • 165 projects submitted. Each project is 150 x 170um
  • Youngest submitter: 4 years old
  • 64 used Wokwi graphical editor, 82 Verilog, 5 Amaranth, 1 Chisel
  • 39935 standard cells used across all projects.
  • Most cells used in a design was 1105, the least was 8.
  • Max utilisation was 52%
  • Total wire length 2024 mm.

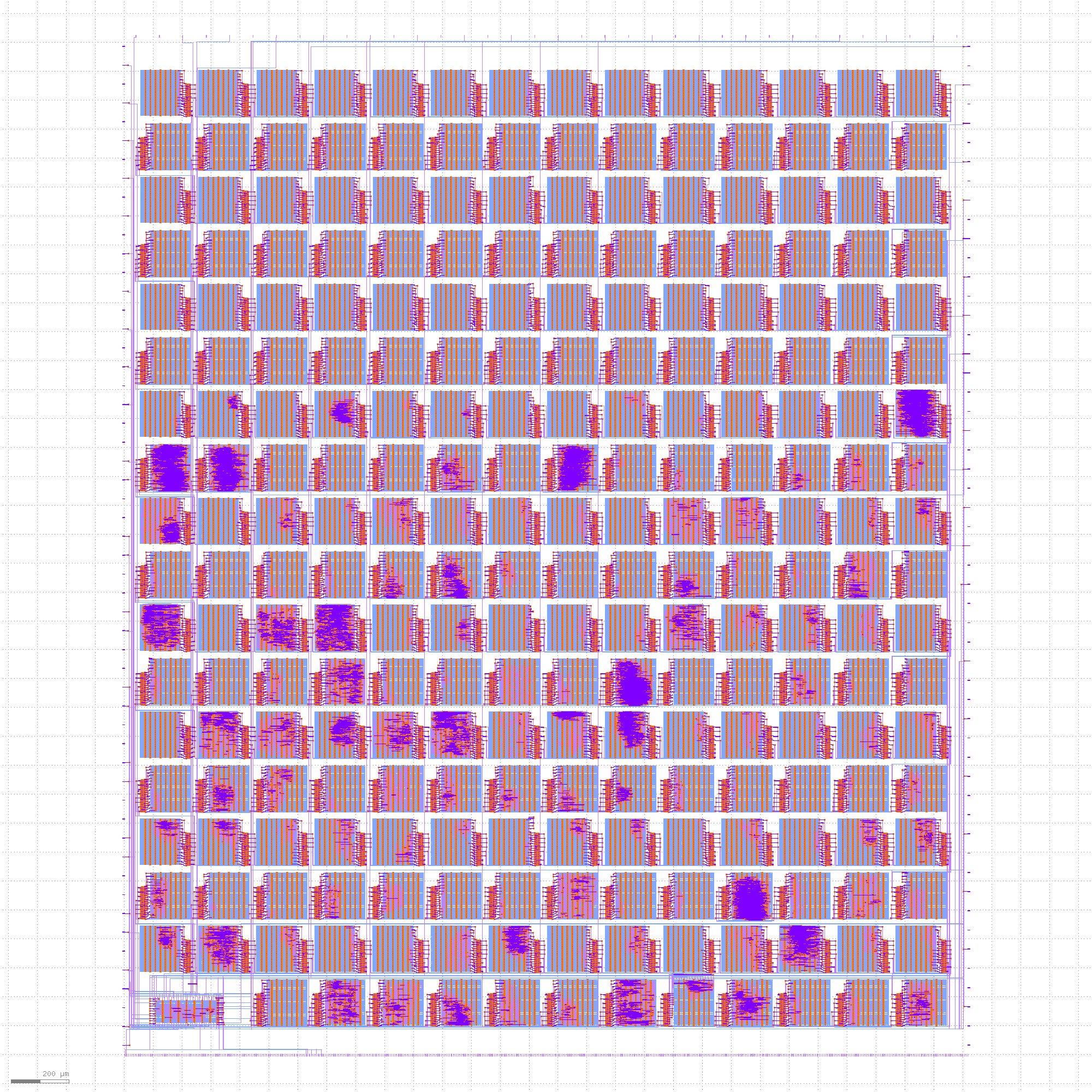

Whole die render

whole die

Project Showcase

Wokwi projects

HDL projects

Testimonials / Endorsements

An educational chip development workflow entirely in-browser, from graphic entry to GDSII output for #sky130! Stunning work by @matthewvenn to make an opaque area of technology accessible.


Last week I designed an integrated circuit for #tinytapeout, my first digital circuit design not to include any kind of cpu.


I still can’t get over how smooth the ASIC design workflow of the #tinytapeout is


Thank you @matthewvenn and everyone who made #tinytapeout happen! I made a simple counter FSM based on a UTexas presentation (linked below), but I made it all on my new Steamdeck!


Created a 128-Bit Memory (8 x 16-Bit Blocks) custom ASIC. I hope it will be manufactured in next shuttle run. Aside from that, It was amazing how seamless and easy was the whole process.


More on Twitter.
