498 Tinysynth

498 : Tinysynth

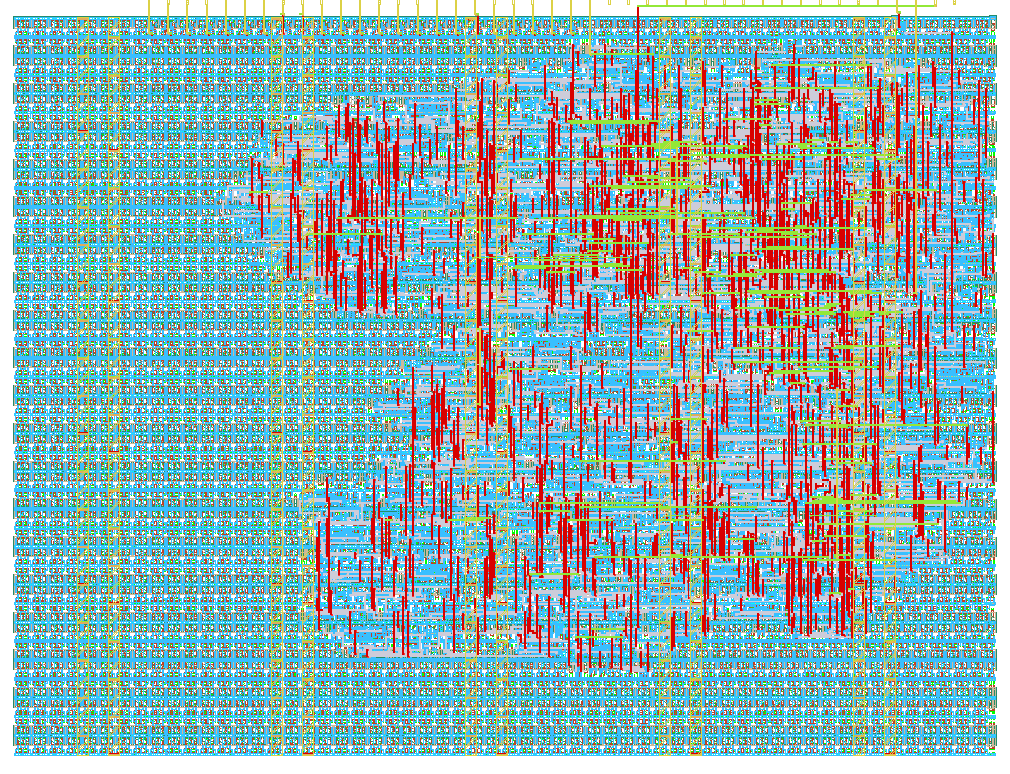

Design render

How it works

Accepts MIDI commands over UART, generates a corresponding square wave signal using PWM.

How to test

External hardware

A Pmod AMP2 connected to the PMOD connector.

IO

#InputOutputBidirectional
0ax0b0
1bx1b1
2cx2b2
3dx3b3
4ex4b4
5fx5b5
6gx6b6
7hx7b7
