- Author: djuara
- Description: This is a PWM generator and 8-bit width IO, spi controlled (2 different interfaces, just for testing).
- GitHub repository

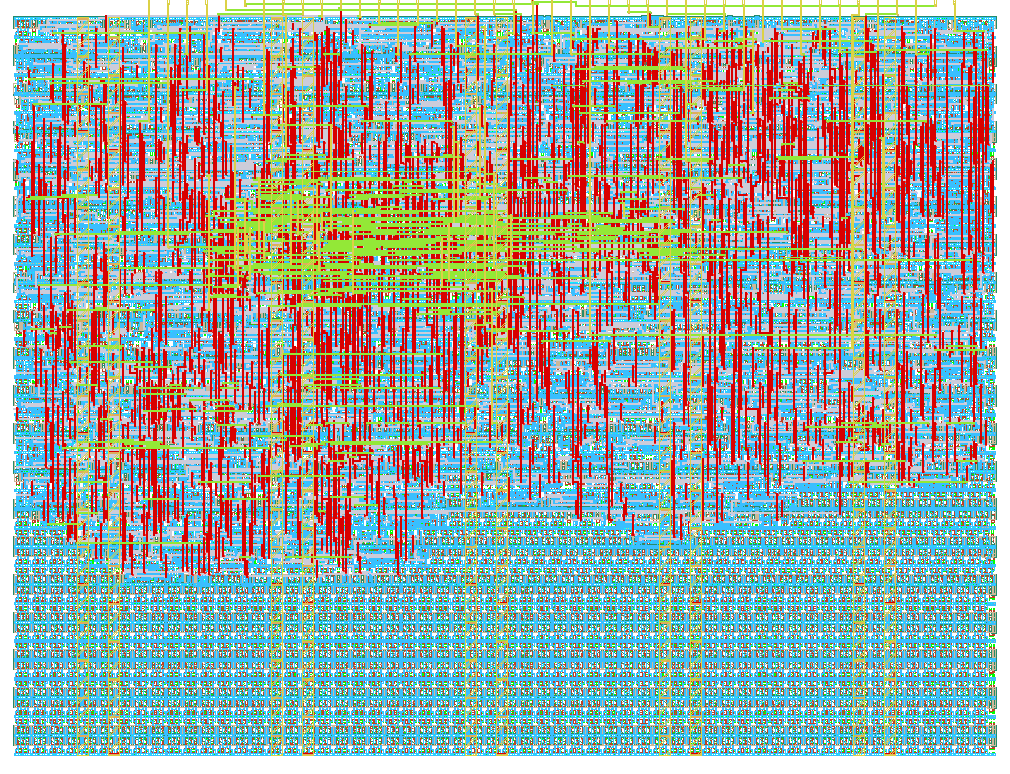

- Open in 3D viewer
- Clock: 0 Hz
How it works
This design is an SPI controlled PWM generator and 8-pin IO controller. IOs can be configure as output or input. Through registers we can configure number of ticks the PWM signal is ON and the cycle. Ticks are related to the system clk provided externally.
The design contain 8 registers that can be accessed by the two SPI interfaces. With these registers user can control PWM generator, allowing control of time on and cycle time. Also there are 8 IOs that can be set as inputs or outputs.
If two SPI writes occurs at the same time, SPI_CLK prevails over SPI_SAMPLED.
Configuration example
PWM
Configuration of PWM is based on system clk. Registers to be configured are TICKS_ON and TICKS_CYCLE, which is basically the number of ticks of system clk the pwm signal is on and the period.
So assuming a system clk of 50 MHz, if we want to obtain a PWM signal with period 1 ms and duty cycle of 33%:
We need to calculate the number of clk ticks that are in 1 ms:
cycle_ticks = T / T_clk = 1 ms / (1 / 50 MHz) = 50 MHz * 1 ms = 50000 ticks
And now calculate the number of clk ticks the signal is on:
on_ticks = cycle_ticks * duty_cycle = 50000 * 0.33 = 16500 ticks
So configuring the registers with these values, and activating PWM (through external signal or register)
IOs
In order to use the IOs, we just need to configure the IO_DIR register in order to set the pin as input or output.
Then, if it is an input, just read the IO_VALUE register, and if it is an output, just write the desired value to the IO_VALUE register.
Ports
| Port | in/out | Description |
|---|---|---|
| ui_in[7] | in | Input and'ed with ena and reported in bit 7 of reg 0x01 |
| ui_in[6] | in | Control start of PWM externally |
| ui_in[5] | in | CS signal of SPI_SAMPLED |
| ui_in[4] | in | MOSI signal of SPI_SAMPLED |
| ui_in[3] | in | SCLK signal of SPI_SAMPLED |
| ui_in[2] | in | CS signal of SPI_CLK |
| ui_in[1] | in | MOSI signal of SPI_CLK |
| ui_in[0] | in | SCLK signal of SPI_CLK |
| uo_out[7:3] | out | Always 0 |
| uo_out[2] | out | PWM output |
| uo_out[1] | out | MISO signal of SPI_SAMPLED |
| uo_out[0] | out | MISO signal of SPI_CLK |
| uio_in[7:0] | in | Input signals of IOs |
| uio_out[7:0] | out | Output signals of IOs |
| uio_oe[7:0] | out | OE signals of IOs |
| ena | in | Design selected signal |
| clk | in | System clk |
| rst_n | in | Active low reset |
Registers
| Reg | Addr | Addr | Description | Default |
|---|---|---|---|---|
| ID | 0x00 | R | Identification register | 0x96 |
| PWM_CTRL | 0x01 | R/W | Control register | 0x00 |
| TICKS_ON_LSB | 0x02 | R/W | Ticks PWM signal is on LSB | 0x14 |
| TICKS_ON_MSB | 0x03 | R/W | Ticks PWM signal is on MSB | 0x82 |
| TICKS_CYCLES_LSB | 0x04 | R/W | PWM period in ticks LSB | 0x50 |
| TICKS_CYCLES_MSB | 0x05 | R/W | PWM period in ticks MSB | 0xC3 |
| IO_DIR | 0x06 | R/W | Set the dir of each IO pin | 0x00 |
| IO_VALUE | 0x07 | R/W | Set the IO_output value | 0x00 |
Only 3 bits of address are taken into account for addressing.
When PWM is active, registers cannot be written.
ID
This register is read only, it's value is 0x96.
PWM_CTRL
This register controls the PWM. Bit 0 control if it's on (Bit 0 set) or off (Bit 0 clear). This register also contain the AND value of inputs ui_in[7] & ena in bit 7.
TICKS_ON LSB and MSB
This two registers contains the number of ticks of the system clk that the PWM signal is high. It's a 16 bit wide value, separate in LSB and MSB.
TICKS_CYCLES LSB and MSB
This two registers contains the period of the PWM signal in number of ticks of the system clk. It's a 16 bit wide value, separate in LSB and MSB.
IO_DIR
In this register each bits configure the direction of each io pin. Value 0 indicates input and value 1 indicate output
IO_VALUE
This register contain the value of the io pin. When read it reports the values of uio_in, when writes it sets the values of uio_out (depending on values set in IO_DIR).
SPI Interfaces
Registers are accesed through one of the two SPI interfaces. Both interfaces share the access to the registers, so just one interface can be accessed at the same time.
SPI mode is CPOL = 0 and CPHA = 1. Signal changes on rising edges and is capture on falling edges.
SPI CLK
This interface is clocked with the sclk clock of the SPI.
To write a register, 16 bits must be written.
- Bit 15 (MSB, first sent) is the R/W bit, for writes, must be 0
- Bits 14 to 11 are ignored
- Bit 10 to 8 is address
- Bit 7 to 0 is data to be written
To read a register, 24 bits must be sent
- Bit 23 (MSB, first sent) is the R/W bit, for reads, must be 1
- Bits 22 to 19 are ignored
- Bit 18 to 16 is address
- Bit 15 to 8 is dummy bits
- Bit 7 to 0 is data read in MISO line
SPI SAMPLED
This interface is sampled with the system clk. As this interface needs to be sampled twice in order to avoid errors due to CDC, the frequency for the SPI_CLK must be equal or less than sys_freq/6. If this is not met, reads would be erroneous
To write a register, 16 bits must be written.
- Bit 15 (MSB, first sent) is the R/W bit, for writes, must be 0
- Bits 14 to 11 are ignored
- Bit 10 to 8 is address
- Bit 7 to 0 is data to be written
To read a register, 16 bits must be sent
- Bit 15 (MSB, first sent) is the R/W bit, for reads, must be 1
- Bits 14 to 11 are ignored
- Bit 10 to 8 is address
- Bit 7 to 0 is data read in MISO line
How to test
Different tests to check all functionalities:
- SPI Reads: Read the ID register (0x00) and the byte received should be 0x96. Use both SPI_CLK and SPI_SAMPLED interface.
- SPI Writes: you can write a register different than ID register, and then read it back an check you read the value previously written. Use both SPI_CLK and SPI_SAMPLED interface.
- PWM output: Configure a desired pwm cycle in the corresponding registers TICKS_ON_LSB/MSB and TICKS_CYCLES_LSB/MSB, and activate the PWM output in PWM_CONTROL register. Check PWM output.
- External PWM on/off: Set high value on ui_in[6] and check PWM output.
- Bidir ios: Configure direction of ios with IO_DIR, and set values for the outputs in IO_VALUE, then read IO_VALUE and check correctness.
- Spare in/out: Set ui_io[7] to high and check bit 7 of PWM_CTRL is high when this design is selected.
External hardware
Some devices to peform SPI transactions
IO
| # | Input | Output | Bidirectional |
|---|---|---|---|
| 0 | clk_sclk | clk_miso | IO0 |
| 1 | clk_mosi | sampled_miso | IO1 |
| 2 | clk_cs | pwm | IO2 |
| 3 | sampled_sclk | IO3 | |
| 4 | sampled_mosi | IO4 | |
| 5 | sampled_cs | IO5 | |
| 6 | start pwm ext | IO6 | |
| 7 | input and'ed with ena | IO7 |
