837 Patater Demo Kit Waggling Rainbow on a Chip

837 : Patater Demo Kit Waggling Rainbow on a Chip

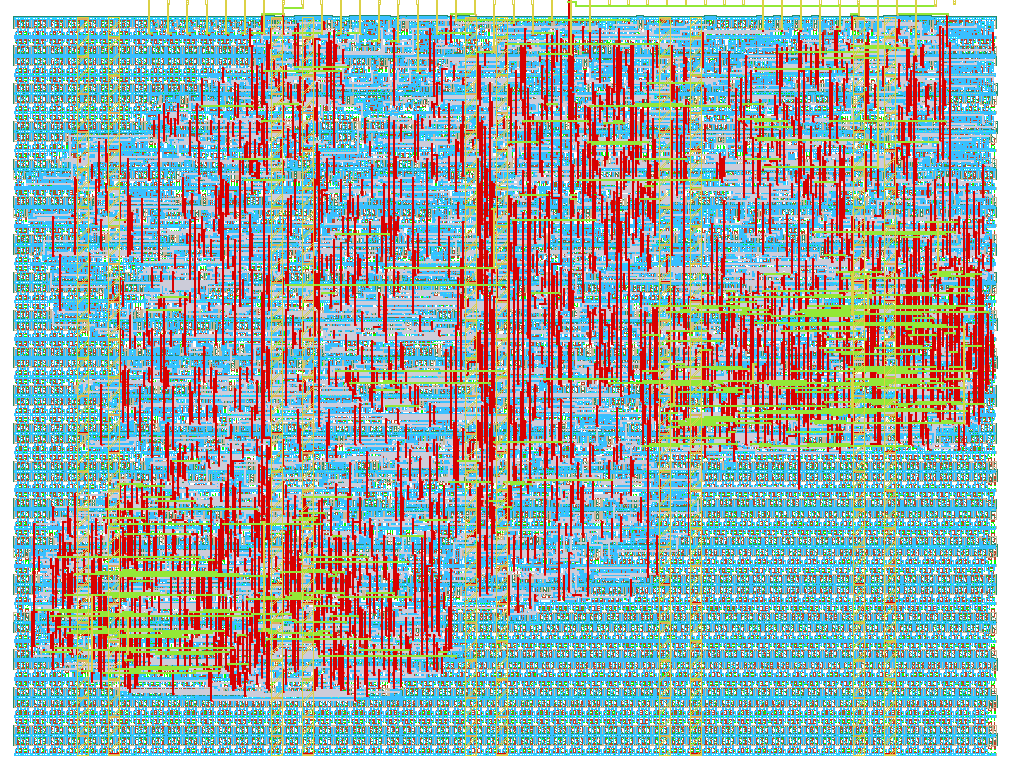

Design render

How it works

This design outputs a waggling 6-bit rainbow demo on VGA.

The demo will change effect based on inputs on ui_in.

Pin Pin Name Setting Effect
ui_in[0] DUAL_EN Dual mode Horizontally flips the image each scan line
ui_in[1] HWAVE_EN H wave Enables use of horizontal waves
ui_in[4:2] P0_OFF_{2,1,0} P0 offset Controls the speed of the H wave
ui_in[7:5] P1_OFF_{2,1,0} P1 offset Controls the speed of the V wave

Screenshots

Default <br /> Default

Dual Mode <br /> Dual Mode

H Wave <br /> H Wave

Video

A video of a different (software rather than hardware) implementation, of the waggling rainbow effect can be found at https://www.youtube.com/watch?v=AxT45_7WZUQ.

How to test

If wanting to test without hardware, use the VGA playground. Copy and paste the contents of the entire src/project.v file into the playground's text editor, replacing all previous content. Then, change the name of the module from tt_um_patater_demokit to tt_um_vga_example and the simulator will start running in your browser.

If testing with hardware, use a TinyVGA PMOD. Clock the design with 25.175 MHz as described in info.yaml (25.157 MHz is standard for 60 Hz 640x480 VGA video).

If testing with lower level simulation tools, an incomplete cocotb test bench (test/test.py) is provided. Passing the tests in the cocotb bench is no guarantee that the design will work.

External hardware

External hardware required:

IO

#InputOutputBidirectional
0DUAL_ENR1
1HWAVE_ENG1
2P0_OFF_0B1
3P0_OFF_1VSync
4P0_OFF_2R0
5P1_OFF_0G0
6P1_OFF_1B0
7P1_OFF_2HSync
