44 Synchronous FIFO
44 : Synchronous FIFO
- Author: Monish V.R
- Description: It's a synchronous fifo which has 4 bit of width
- GitHub repository

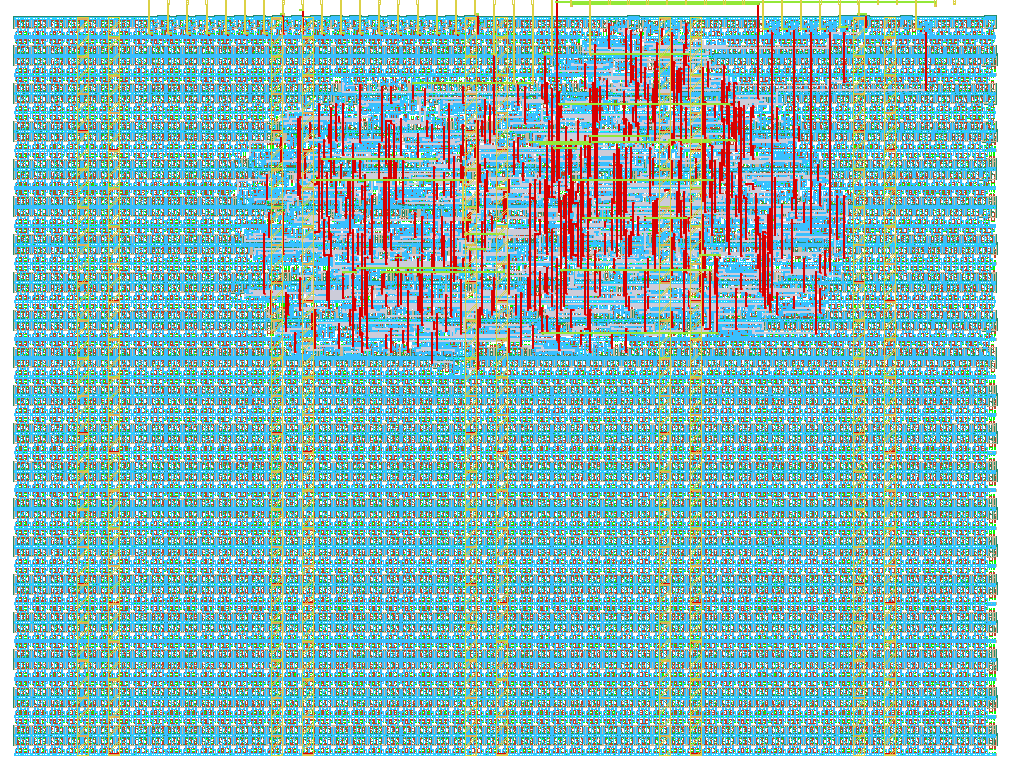

- Open in 3D viewer
- Clock: 0 Hz
How it works
The synchronous FIFO is a first in first out memory. When the data is entered and written it gets stored in the memory. And when read out, it will be removed from the memory.
It's based on debouncing mechanism.
How to test
TBA
External hardware
NIL
IO
| # | Input | Output | Bidirectional |
|---|---|---|---|
| 0 | full | ||
| 1 | empty | ||
| 2 | wr | dout[0] | |
| 3 | rd | dout[1] | |
| 4 | din[0] | dout[2] | |
| 5 | din[1] | dout[3] | |
| 6 | din[2] | ||
| 7 | din[3] |
