483 SPI test
483 : SPI test
- Author: Matt Venn
- Description: SPI test design
- GitHub repository

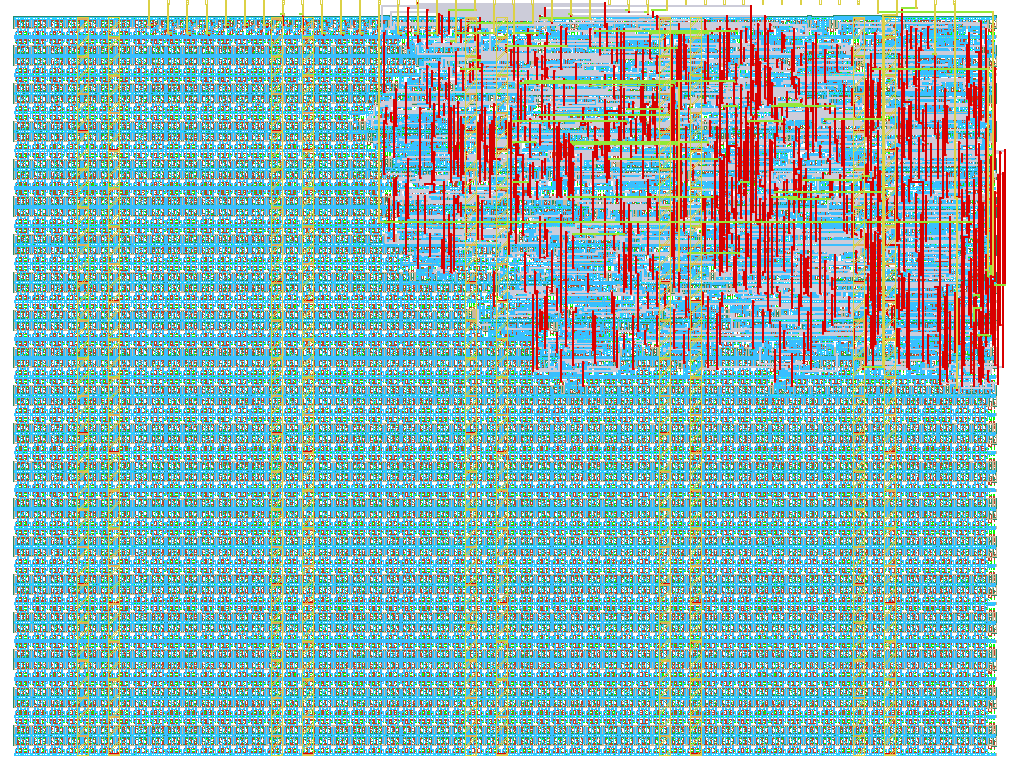

- Open in 3D viewer
- Clock: 50000000 Hz
How it works
SPI test design based from https://github.com/calonso88/tt07_alu_74181
How to test
See https://github.com/calonso88/tt07_alu_74181
External hardware
Nothing required
IO
| # | Input | Output | Bidirectional |
|---|---|---|---|
| 0 | cpol | ||
| 1 | cpha | ||
| 2 | |||
| 3 | spi_miso | ||
| 4 | spi_cs_n | ||
| 5 | spi_clk | ||
| 6 | spi_mosi | ||
| 7 |
