679 Fuzzy Search Engine

679 : Fuzzy Search Engine

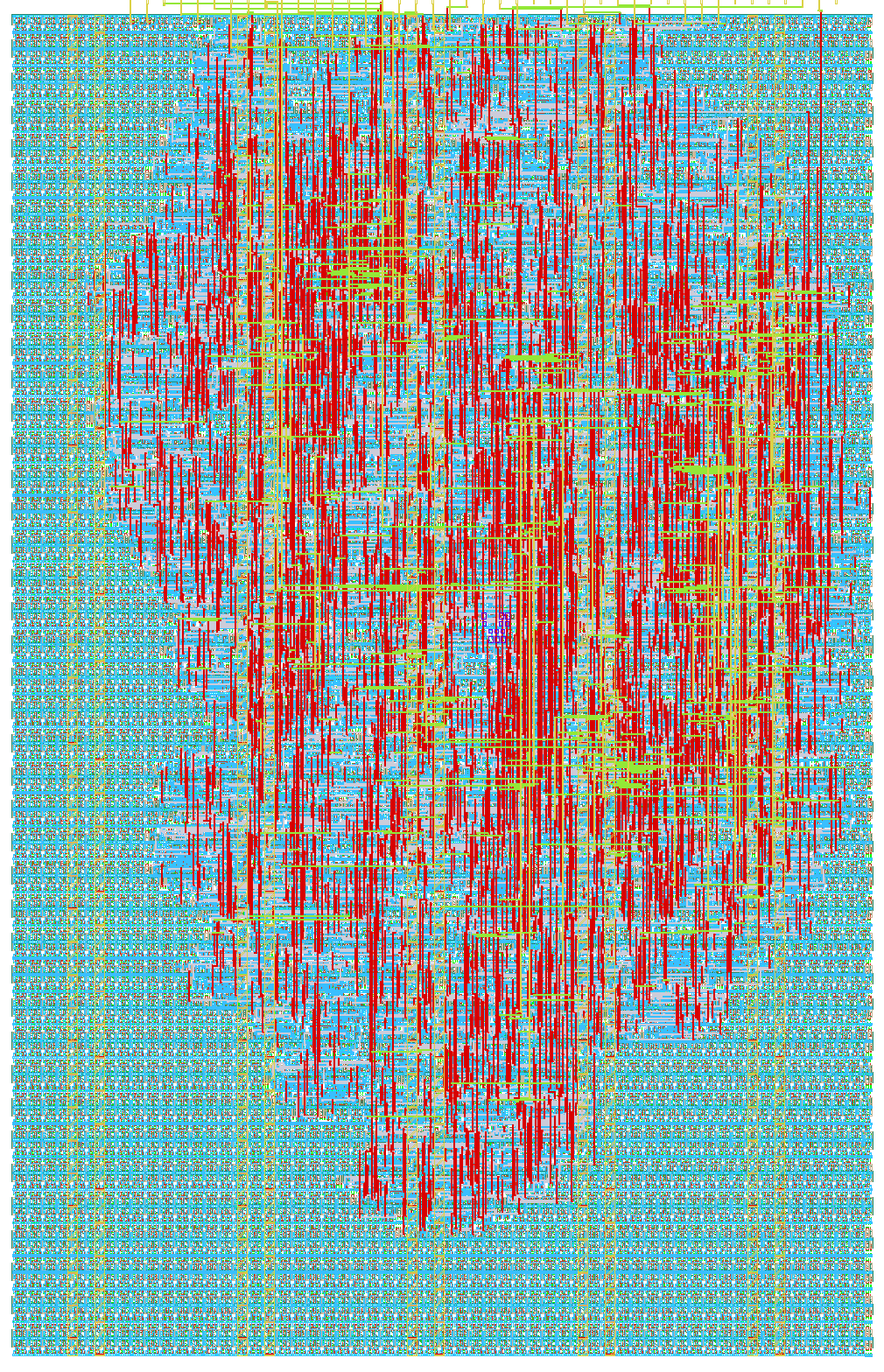

Design render

How it works

tt09-levenshtein is a fuzzy search engine which can find the best matching word in a dictionary based on levenshtein distance.

Fundamentally its an implementation of the bit-vector levenshtein algorithm from Heikki Hyyrö's 2003 paper with the title A Bit-Vector Algorithm for Computing Levenshtein and Damerau Edit Distances.

Architecture

The overall architecture is a Wishbone Classic system with two masters (The levenshtein engine and an SPI controlled master) and two slaves (The levenshtein engine and a QSPI SRAM controller).

Using the SPI interface, you store a dictionary and some bitvectors representing a search word in SRAM and then configures and activates the engine. The engine will then read the dictionary and bitvectors from the SRAM and, ultimately store the index and distance of the word in the dictionary with the lowest levenshtein distance in registers which can be read by the user.


SPI

The device is organized as a wishbone bus which is accessed through commands on an SPI bus.

The maximum SPI frequency is 25% of the master clock (12.5MHz when the chip is running at 50MHz).

The bus uses SPI mode 3 (CPOL=1, CPHA=1)

Input bytes:

Byte Bit Description
0 7 READ=0 WRITE=1
0 6-0 Address bit 22-16
1 7-0 Address bit 15-8
2 7-0 Address bit 7-0
3 7-0 Byte to write if WRITE, otherwise ignored

Output bytes:

Byte Bit Description
0 7-0 Byte read if READ, otherwise just 0x00

Since the SPI bridges to a wishbone bus which is shared by another master and because register and SRAM have different latencies, the response time is variable.

While the bus is working, the output bits will be zero. The final output byte will be preceeded by a one-bit.

Note that this means that the value 0x5A can appear 8 different ways on the SPI bus:

01 5A   0000000 1 01011010
02 B4   000000 1 01011010 0
05 68   00000 1 01011010 00
0A D0   0000 1 01011010 000
15 A0   000 1 01011010 0000
2B 40   00 1 01011010 00000
56 80   0 1 01011010 000000
AD 00   1 01011010 00000000

Memory Layout

As indicated by the SPI protocol, the address space is 23 bits.

The address space is basically as follows:

Address Size Access Identifier
0x000000 1 R/W CTRL
0x000001 1 R/W SRAM_CTRL
0x000002 1 R/W LENGTH
0x000003 1 R/O MAX_LENGTH
0x000004 2 R/O INDEX
0x000006 1 R/O DISTANCE
0x000200 512 R/W VECTORMAP
0x000400 8M R/W DICT

CTRL

The control register is used to start the engine and see when it has completed.

The layout is as follows:

Bits Size Access Description
0 1 R/W Enable flag
1-7 7 R/O Not used

Set the enable flag to start the engine. When the engine is finished, the enable flag is changed to 0

SRAM_CTRL

Controls the SRAM

Bits Size Access Description
0-1 2 R/W Chip select
2-7 6 R/O Not used

The chip select flag controls which chip select is used on the PMOD when accessing SRAM

Value Pin Notes
0 None Default value
1 CS Uses the default CS on the PMOD (Pin 1). Compatible with Machdyne's QQSPI PSRAM
2 CS2 Uses CS2 on the PMOD (pin 6). Compatible with mole99's QSPI Flash/(P)SRAM
3 CS3 Uses CS3 on the PMOD (pin 7). Compatible with mole99's QSPI Flash/(P)SRAM

LENGTH

Bits Size Access Description
0-7 8 R/W Word length minus 1

Used to indicate the length of the search word. Note that the word cannot be empty and it cannot exceed 16 characters.

MAX_LENGTH

Bits Size Access Description
0-7 8 R/O Max word length supported minus 1

This field allows for applications to dynamically detect the size of the bit vector.

DISTANCE

When the engine has finished executing, this address contains the levenshtein distance of the best match.

INDEX

When the engine has finished executing, this address contains the index of the best word from the dictionary in big endian byte order.

VECTORMAP

The vector map must contain the corresponding bitvector for each input byte in the alphabet.

If the search word is application, the bit vectors will look as follows:

Letter Index Bit vector
a 0x61 16'b00000000_01000001 (a_____a____)
p 0x70 16'b00000000_00000110 (_pp________)
l 0x6C 16'b00000000_00001000 (___l_______)
i 0x69 16'b00000001_00010000 (____i___i__)
c 0x63 16'b00000000_00100000 (_____c_____)
t 0x74 16'b00000000_10000000 (_______t___)
o 0x6F 16'b00000010_00000000 (_________o_)
n 0x6E 16'b00000100_00000000 (__________n)
* * 16'b00000000_00000000 (___________)

Each vector is 16 bits in bit endian byte order.

The vectormap is stored in SRAM so the values are indetermined at power up and must be cleared.

DICT

The word list.

The word list is stored of a sequence of words, each encoded as a sequence of 8-bit characters and terminated by the byte value 0x00. The list itself is terminated with the byte value 0x01.

Note that the algorithm doesn't care about the particular characters. It only cares if they are identical or not, so even though the algorithm doesn't support UTF-8 and is limited to a character set of 254 characters, ignoring Asian alphabets, a list of words usually don't contain more than 254 distinct characters, so you can practially just map lettters to a value between 2 and 255.

How to test

You can compile the client as follows:

mkdir -p build
cmake -G Ninja -B build .
cmake --build build

Next, you can run the test tool:

# Machdyne QQSPI PSRAM
./build/client/client --interface tt --test --verify-dictionary --verify-search

# mole99 PSRAM
./build/client/client --interface tt --cs cs2 --test --verify-dictionary --verify-search

This will load 1024 words of random length and characters into the SRAM and then perform a bunch of searches, verifying that the returned result is correct.

External hardware

To operate, the device needs a QSPI PSRAM PMOD. The design is tested with the QQSPI PSRAM PMOD from Machdyne, but any memory PMOD will work as long as it supports:

  • WRITE QUAD with the command 0x38 in 1S-4S-4S mode and no latency
  • FAST READ QUAD with the command 0xE8 in 1S-4S-4S mode and 6 wait cycles
  • 24-bit addresses
  • Uses pin 0, 6, or 7 for SS#.
  • Must be able to run at half the clock speed of the TT chip.

Note that this makes it incompatible with the spi-ram-emu project for the RP2040.

IO

#InputOutputBidirectional
0SRAM QSPI CS
1SRAM QSPI SIO0/MOSI
2SRAM QSPI SIO1/MISO
3SRAM QSPI SCK
4SPI SS#SRAM QSPI SIO2
5SPI SCKSRAM QSPI SIO3
6SPI MOSISRAM QSPI CS2
7SPI MISOSRAM QSPI CS3
