- Author: moritz puehringer
- Description: test some logical gates
- GitHub repository

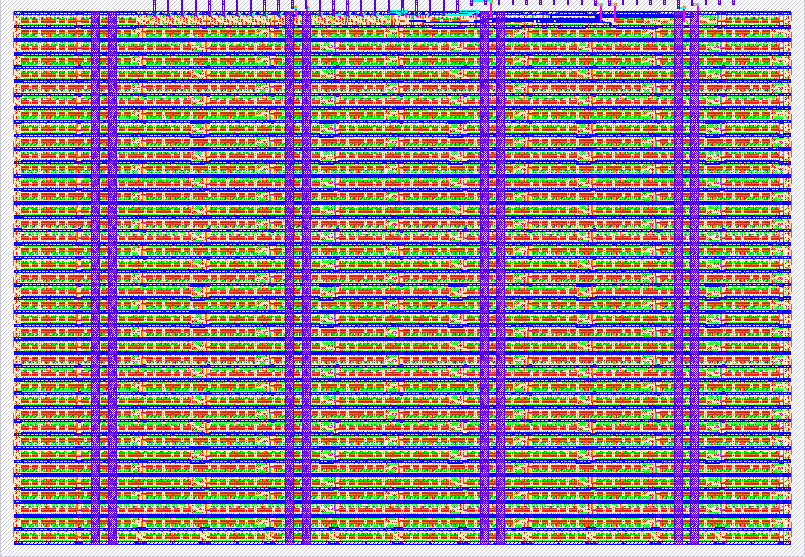

- Open in 3D viewer
- View in Wokwi
- Clock: 0 Hz
How it works
when pressing clock and 1 it hsould set 1 on the display
How to test
when pressing clock and 2 it hsould set 2 on the display
External hardware
List external hardware used in your project (e.g. PMOD, LED display, etc), if any
IO
| # | Input | Output | Bidirectional |
|---|---|---|---|
| 0 | Anzeige auf 1 schalten | ||
| 1 | Anzeige auf 2 schalten | ||
| 2 | |||
| 3 | |||
| 4 | |||
| 5 | |||
| 6 | |||
| 7 |
