365 Tiny Tapeout Full Adder
365 : Tiny Tapeout Full Adder
- Author: nusli7
- Description: 1 bit full adder
- GitHub repository

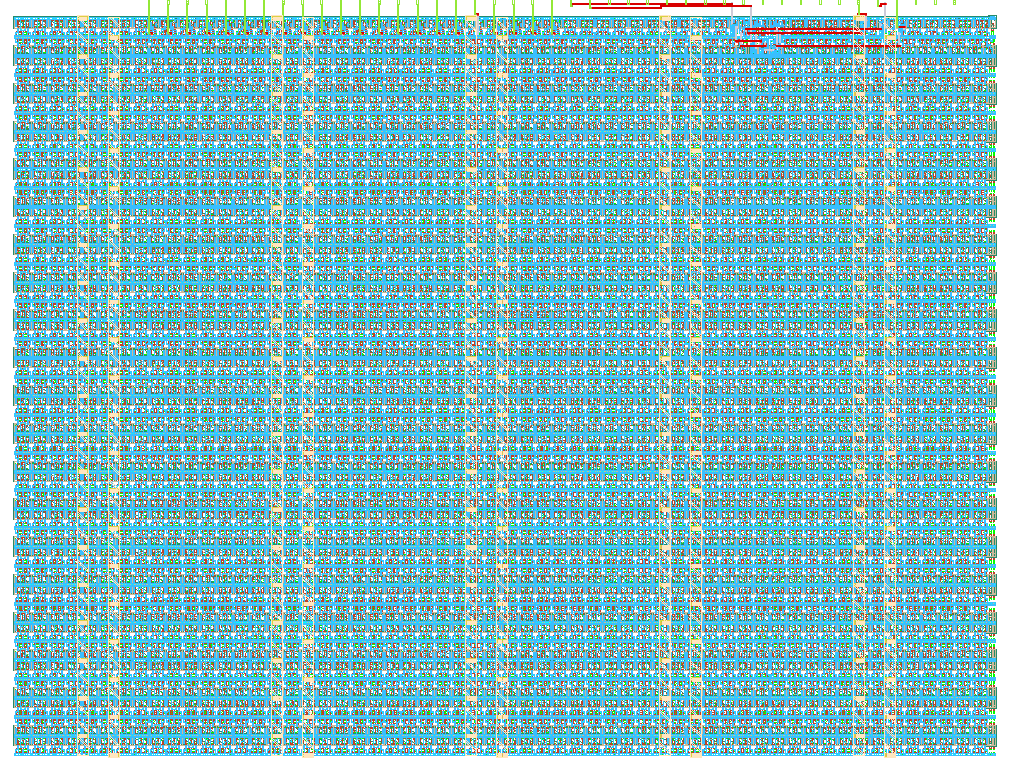

- Open in 3D viewer
- View in Wokwi
- Clock: 0 Hz
How it works
1 bit Full Adder using NAND, XOR and OR gates.
How to test
Input 1 bit binary numbers to the input and watch the outputs.
External hardware
List external hardware used in your project (e.g. PMOD, LED display, etc), if any
IO
| # | Input | Output | Bidirectional |
|---|---|---|---|
| 0 | input a | output sum | |
| 1 | input b | output carry | |
| 2 | input carry | ||
| 3 | |||
| 4 | |||
| 5 | |||
| 6 | |||
| 7 |
