769 TinyTapeout test
769 : TinyTapeout test
- Author: Tom Ulrich
- Description: Only a test so far
- GitHub repository

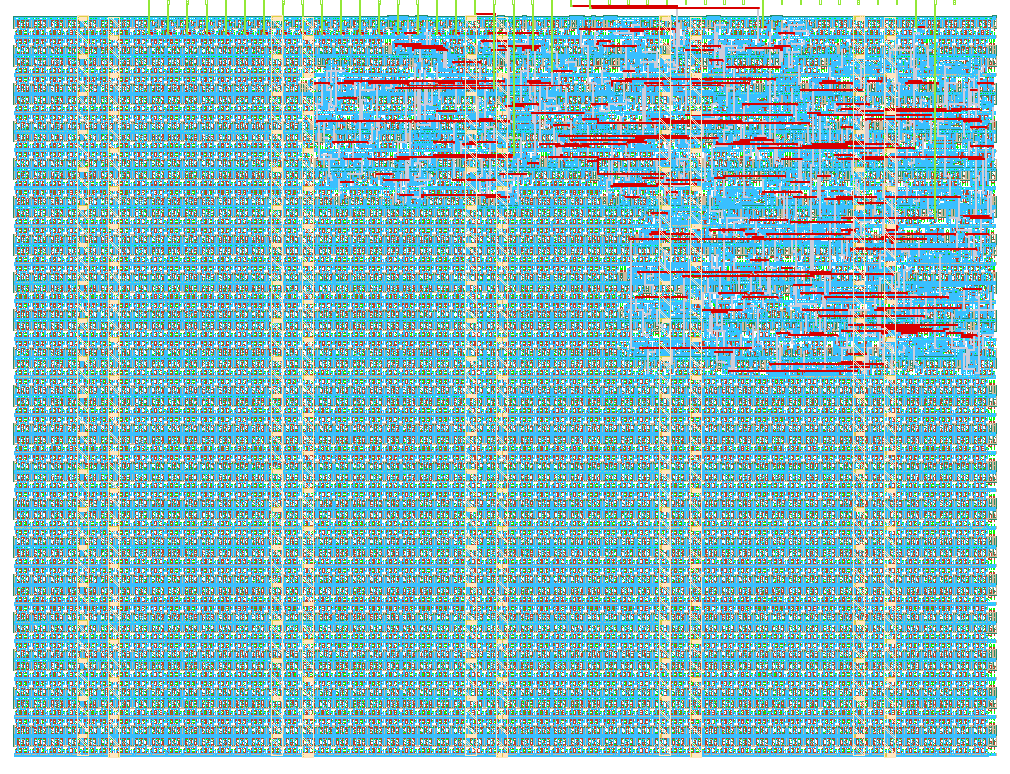

- Open in 3D viewer
- View in Wokwi
- Clock: 0 Hz
How it works
This block shows the name Elias by displaying the letters E L I A S one after another with one second in between.
How to test
Start the block with the 10 kHz clock enabled and the letters should show up on the 7-segment-display.
External hardware
None.
IO
| # | Input | Output | Bidirectional |
|---|---|---|---|
| 0 | |||
| 1 | First input | ||
| 2 | First output | ||
| 3 | Second input | ||
| 4 | |||
| 5 | |||
| 6 | |||
| 7 |
