722 moss_display
722 : moss_display
- Author: Abhishek Kumar
- Description: A moss jump gif and wiwiwi sound player
- GitHub repository

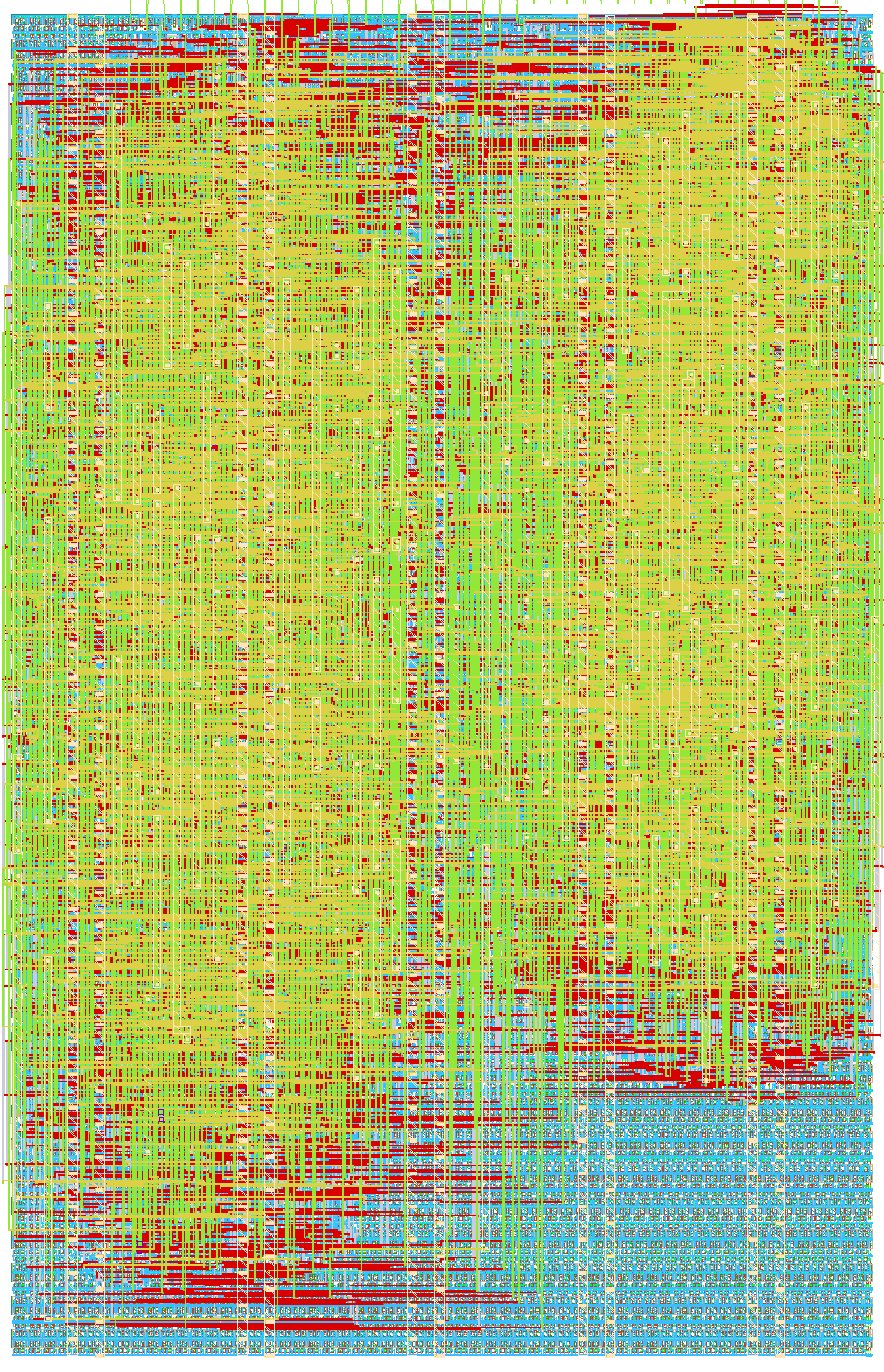

- Open in 3D viewer
- Clock: 25175000 Hz
The story of Moss
Specimen Profile: Fluffulus Hoppi (aka "Moss")
"Moss is a newly identified species of potentially sentient Fluffulus Hoppi enigmatica bryophyta. She is, to date, the only recorded specimen of her kind, and researchers have yet to determine her origins, ecological role, or underlying biology. What is known is that she is undeniably adorable: predominantly green, equipped with several antennae whose function remains a mystery, and capable of communicating exclusively through a series of soft “wiwiiwiiwiii!” vocalizations. She has been observed to possess four small feet; however, their practical function remains unclear, as she has thus far only been seen using them to jump in place.
While the broader characteristics of this organism remain unclear, preliminary observations suggest a strong and possibly symbiotic association with another little-understood, recently documented species known as Chipsaur. Early interactions between the two indicate behavioral coordination, though the nature and purpose of this relationship are still under investigation.
Further research is urgently required. We are currently seeking additional funding to better understand both of these remarkable bio-anomalies."
- Dr. Sophie Zweifel
Read the full article: What is Moss?
Acknowledgements
Special thanks to swisschips for making this project possible. SwissChips
Honorary Moss
<img src="MOSS_SMOL.png" width="400"/>
MOSS Media Player
The chip brings Moss to life by continuously looping her animation and vocalizations directly from hardware memory.
How it works
A previously extracted MOSS GIF and sound file have been converted to LUTs and are being played on repeat.
The sprite ROM stores 4 animation frames at 64×64 pixels, scaled 4× and centered on a 640×480 VGA display. The background should imitate some 'electricity' flowing. The audio ROM holds 1-bit samples played back via 1-bit PCM on uio[7].
Source GIF
<img src="jump_sequence.gif" width="300"/>
VGA output
<img src="vga_output.png" width="300"/>
How to test
Connect the TinyVGA PMOD to the Out PMOD and an Audio PMOD to the Bidir PMOD. Pull ui_in[0] high to mute audio.
External hardware
- TinyVGA PMOD
- Audio PMOD
IO
| # | Input | Output | Bidirectional |
|---|---|---|---|
| 0 | Audio mute | R1 | |
| 1 | G1 | ||
| 2 | B1 | ||
| 3 | VSync | ||
| 4 | R0 | ||
| 5 | G0 | ||
| 6 | B0 | ||
| 7 | HSync | PWM output |
