326 microlane demo project
326 : microlane demo project
- Author: htfab
- Description: Scrolls a message on the 7-segment display. Hardened using microlane.
- GitHub repository

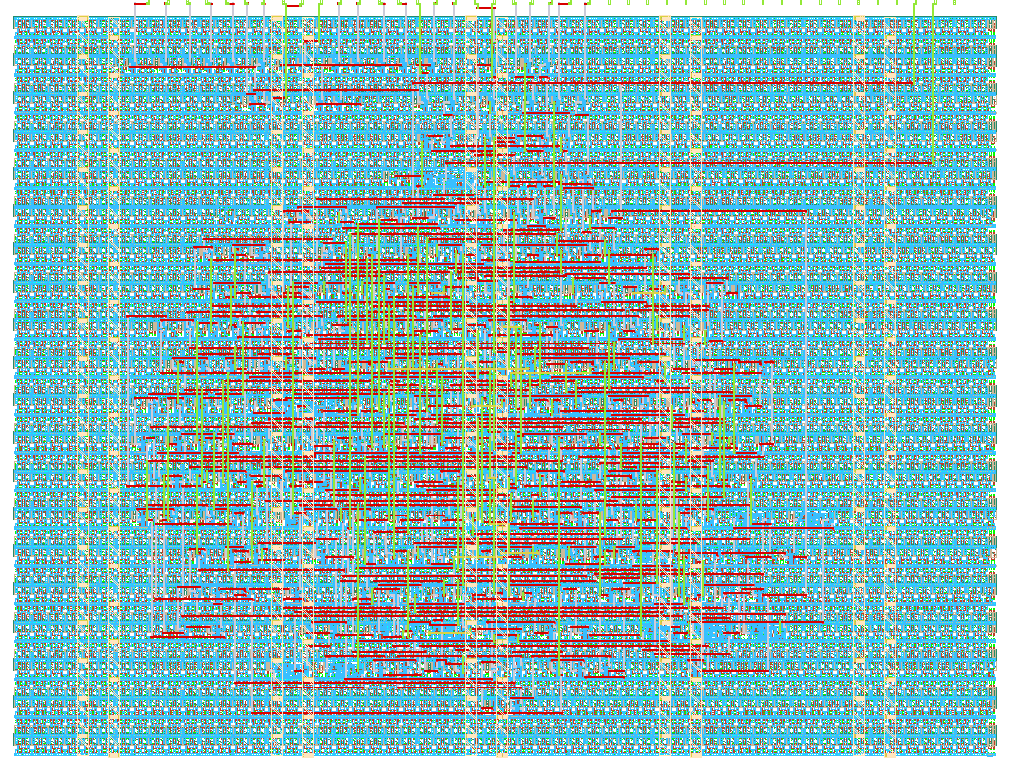

- Open in 3D viewer
- Clock: 5 Hz
How it works
Scrolls the text "hardened using python" over the 7-segment display. This is a demo project for the microlane flow.
How to test
Select the project and provide a slow clock (say, 5 Hz).
External hardware
None
IO
| # | Input | Output | Bidirectional |
|---|---|---|---|
| 0 | segment A | ||
| 1 | segment B | ||
| 2 | segment C | ||
| 3 | segment D | ||
| 4 | segment E | ||
| 5 | segment F | ||
| 6 | segment G | ||
| 7 |
