111 VGA Squares
111 : VGA Squares
- Author: Matthias Fischer
- Description: ETH TT WS VGA Squares
- GitHub repository

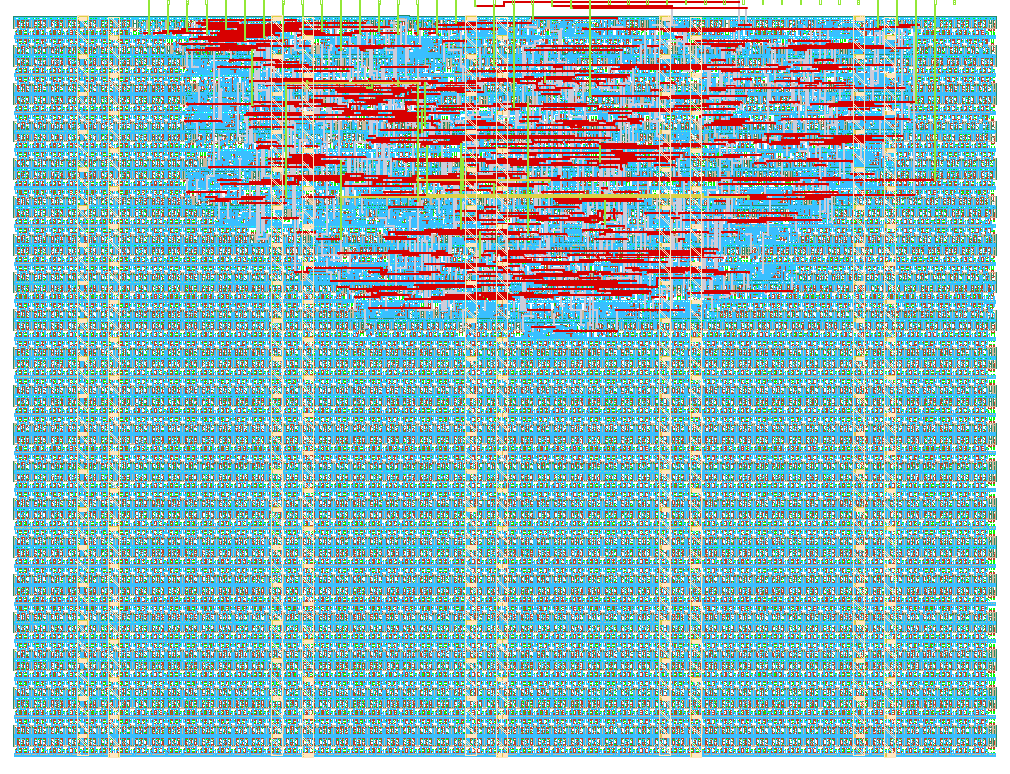

- Open in 3D viewer
- Clock: 25175000 Hz
How it works
Generates VGA squares animation (based on VGA playground rings template)
How to test
Either using the testbench or connect final design. Ui[0] can control the speed and Ui[1] controls the direction of the square animation.
External hardware
List external hardware used in your project (e.g. PMOD, LED display, etc), if any
IO
| # | Input | Output | Bidirectional |
|---|---|---|---|
| 0 | Speed | R1 | |
| 1 | Direction | G1 | |
| 2 | B1 | ||
| 3 | VSync | ||
| 4 | R0 | ||
| 5 | G0 | ||
| 6 | B0 | ||
| 7 | HSync |
