485 2048 sliding tile puzzle game (VGA)
485 : 2048 sliding tile puzzle game (VGA)
- Author: Uri Shaked
- Description: Slide numbered tiles on a grid to combine them to create a tile with the number 2048.
- GitHub repository

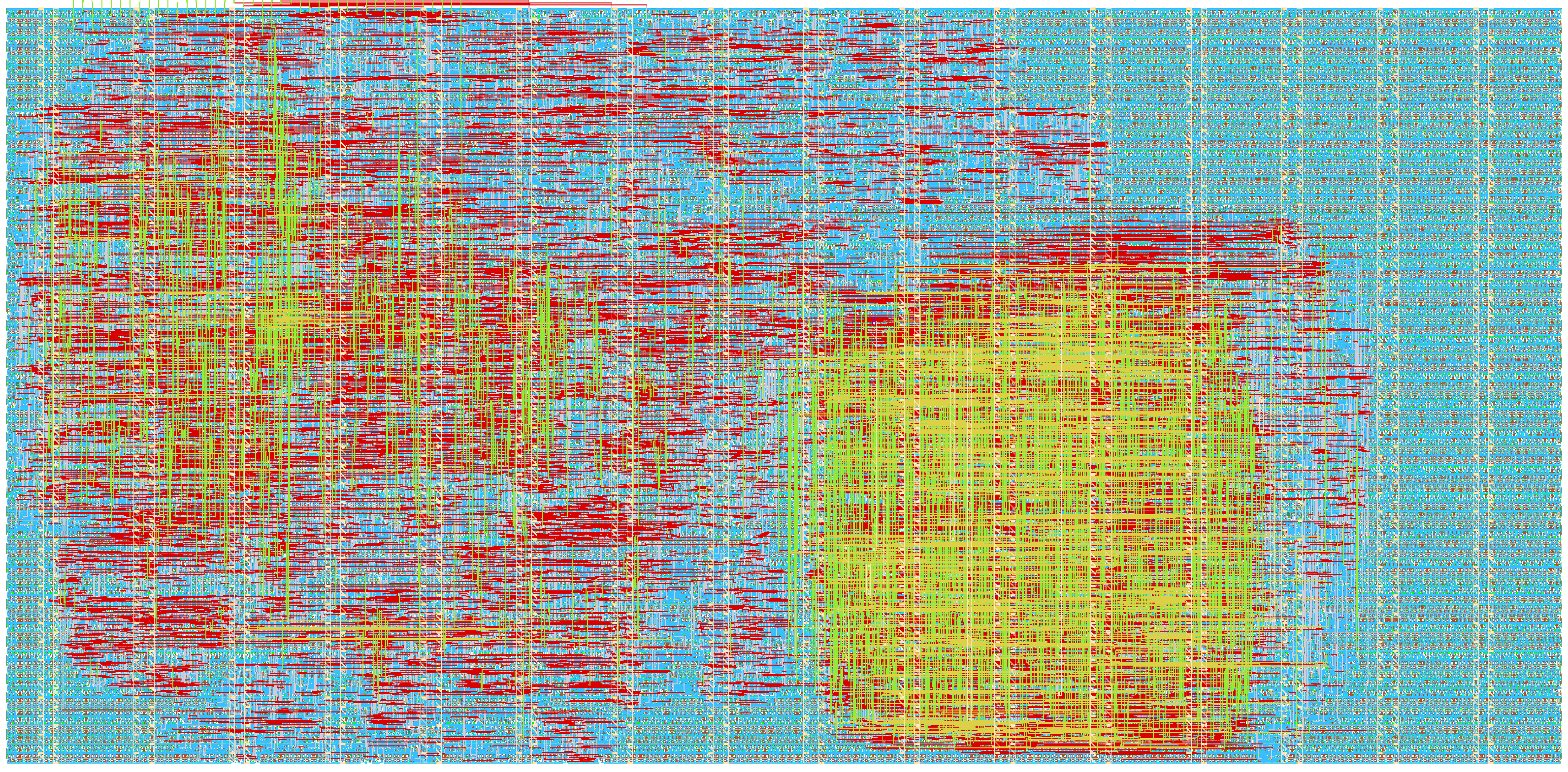

- Open in 3D viewer
- Clock: 25175000 Hz
How it works
2048 is a single-player sliding tile puzzle video game. Your goal is to slide numbered tiles on a grid to combine them and create a tile with the number 2048. The game is won when a tile with the number 2048 appears on the board, hence the name of the game. The game is lost when the board is full and no more moves can be made.
The game is played on a 4x4 grid, with numbered tiles that slide when a player moves them using ui_in pins or using a SNES compatible controller along with the Gamepad Pmod.
The game starts with two tiles with the number 2 on the board. The player can move the tiles in four directions: up, down, left, and right. When the player moves the tiles in a direction, the tiles slide as far as they can in that direction until they hit the edge of the board or another tile. If two tiles with the same number collide, they merge into a single tile with the sum of the two numbers. The resulting tile cannot merge with another tile again in the same move.
How to test
Use the ui_in pins to move the tiles on the board:
ui_in pin |
Direction |
|---|---|
| 0 | Up |
| 1 | Down |
| 2 | Left |
| 3 | Right |
Or use a SNES compatible controller along with the Gamepad Pmod. Both the d-pad and the face buttons can be used for movement:
| D-pad | Face button | Direction |
|---|---|---|
| Up | X | Up |
| Down | B | Down |
| Left | Y | Left |
| Right | A | Right |
After resetting the game, you will see a jumping "2048" animation on the screen. Press any of the ui_in[3:0] pins (or the gamepad buttons) to start the game. The game will start with two tiles with the number 2 on the board. Use the ui_in pins (or the gamepad buttons) to move the tiles in the desired direction. The game will end when the board is full and no more moves can be made.
The game offers two color themes: modern and retro. You can switch between the two themes using the select button on the gamepad or by setting both ui_in[4] and ui_in[5] to 1.
Setting ui_in[7] to 1 will enter unit test mode. In this mode, the game displays a colorful rectangle on the top of the screen, and accepts debug commands on the uio pins. Check out the test bench for more information.
External hardware
- TinyVGA Pmod
- Optional: Gamepad Pmod
IO
| # | Input | Output | Bidirectional |
|---|---|---|---|
| 0 | btn_up | R1 | debug_cmd |
| 1 | btn_down | G1 | debug_cmd |
| 2 | btn_left | B1 | debug_cmd |
| 3 | btn_right | VSync | debug_cmd |
| 4 | gamepad_latch | R0 | debug_data |
| 5 | gamepad_clk | G0 | debug_data |
| 6 | gamepad_data | B0 | debug_data |
| 7 | debug_mode | HSync | debug_data |
