128 UART_SOC
128 : UART_SOC
- Author: Siri Jagadeesh
- Description: Verifies firmware signature using a secure hash comparison module
- GitHub repository

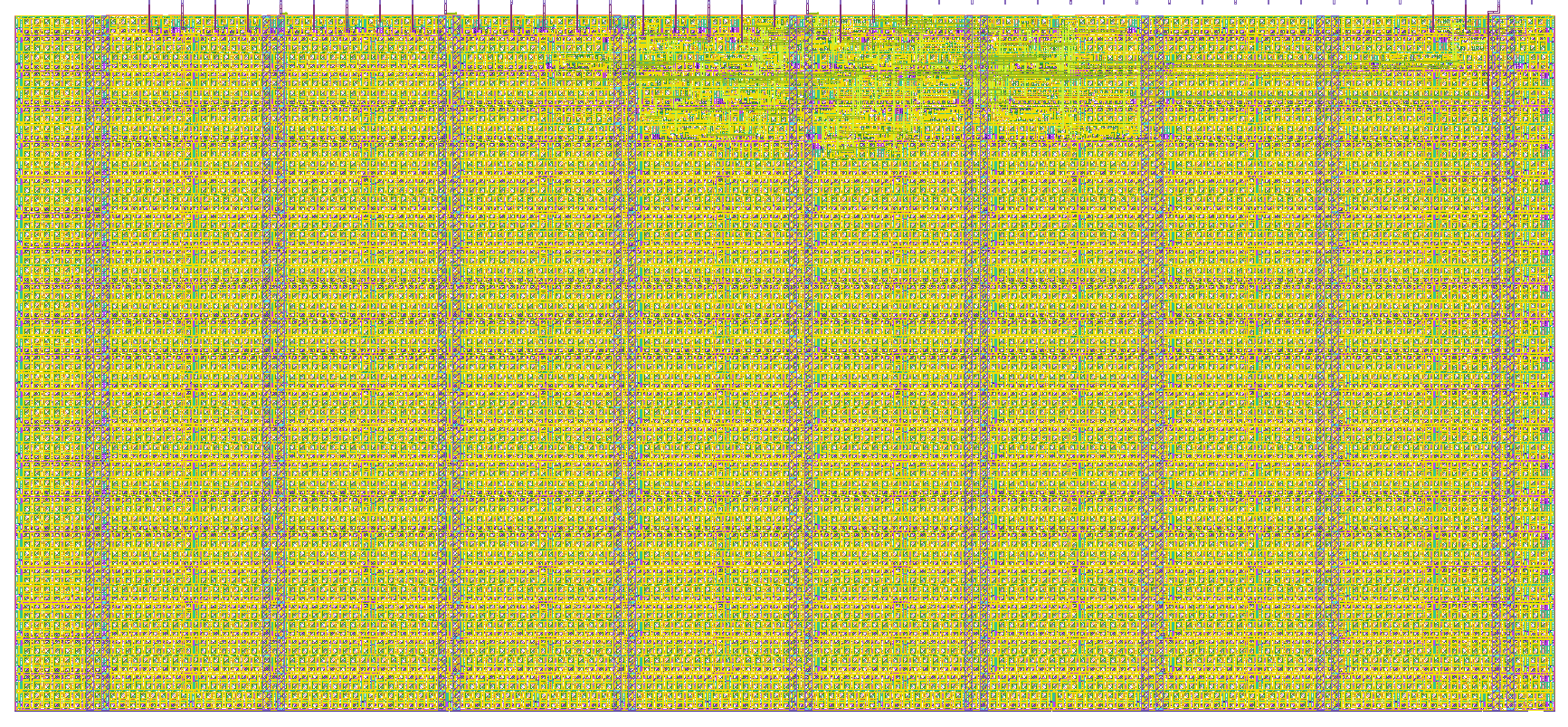

- Open in 3D viewer
- Clock: 0 Hz
Description
SIRI UART SOC is a simple UART receiver System-on-Chip designed in Verilog for Tiny Tapeout.
The design receives serial UART data through the input pin and converts it into parallel data output. After successful reception of data bits, a done signal is generated.
Features
- UART serial receiver
- 7-bit serial data reception
- Parallel data output
- Done signal generation
- Tiny Tapeout compatible
- Simple RTL architecture
How it Works
The UART receiver continuously samples serial data from ui_in[0].
Each clock cycle:
- One serial bit is shifted into an internal shift register.
- A bit counter tracks the number of received bits.
- After receiving 7 bits, the data is transferred to the output register.
- A done signal is generated on
uio_out[0].
The received data appears on uo_out[6:0].
Inputs
| Pin | Description |
|---|---|
ui_in[0] |
UART RX Serial Input |
clk |
System Clock |
rst_n |
Active Low Reset |
Outputs
| Pin | Description |
|---|---|
uo_out[6:0] |
Received UART Data |
uo_out[7] |
Unused |
uio_out[0] |
Data Ready / Done Signal |
Reset Behavior
When rst_n = 0:
- Shift register is cleared
- Bit counter resets to zero
- Output data clears
- Done signal resets
How to Test
-
Apply reset:
- Set
rst_n = 0 - Wait one clock cycle
- Set
rst_n = 1
- Set
-
Send serial data through
ui_in[0]- One bit per clock cycle
-
After 7 received bits:
- Output data appears on
uo_out[6:0] uio_out[0]goes HIGH for one clock cycle
- Output data appears on
Testbench
The project includes a Verilog testbench located in the test directory.
Simulation verifies:
- UART bit shifting
- Bit counting
- Parallel output generation
- Done signal assertion
Tiny Tapeout
This project is designed for the Tiny Tapeout open-source ASIC flow.
More information:
- https://tinytapeout.com
IO
| # | Input | Output | Bidirectional |
|---|---|---|---|
| 0 | data_in_0 | verified | |
| 1 | data_in_1 | status_led | |
| 2 | data_in_2 | ||
| 3 | data_in_3 | ||
| 4 | signature_bit_0 | ||
| 5 | signature_bit_1 | ||
| 6 | signature_bit_2 | ||
| 7 | signature_bit_3 |
