450 Programmable Waveform and PWM Generator

450 : Programmable Waveform and PWM Generator

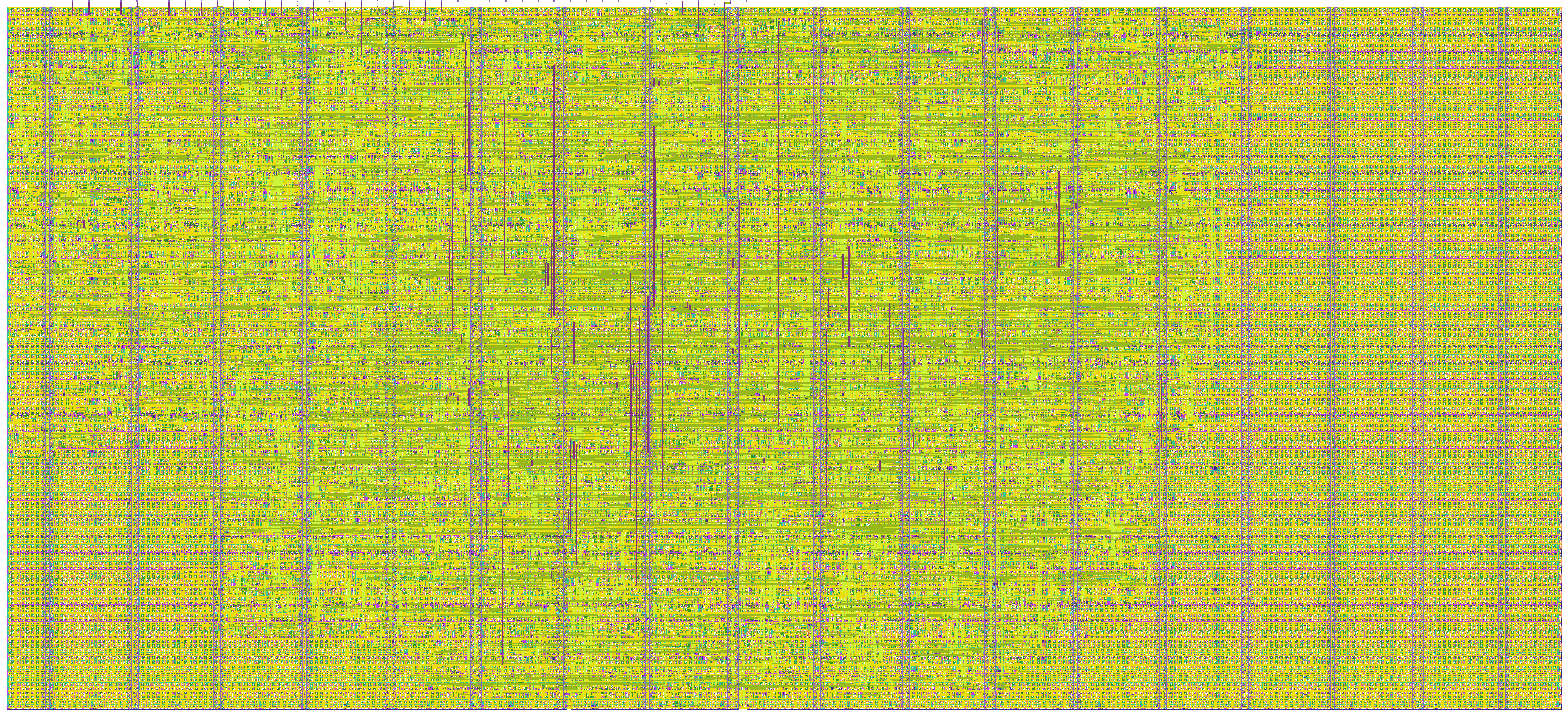

Design render
  • Author: silicon_nomad
  • Description: UART-programmable waveform and PWM generator. Send samples over UART, stored in 256-byte RAM, played back as 8-bit parallel DAC output or 8 independent PWM channels.
  • GitHub repository
  • Open in 3D viewer
  • Clock: 10000000 Hz

How it works

Explain how your project works

How to test

Explain how to use your project

External hardware

List external hardware used in your project (e.g. PMOD, LED display, etc), if any

IO

#InputOutputBidirectional
0UART_RXDAC_D0 / PWM_CH0DAC_WR
1MODEDAC_D1 / PWM_CH1
2LOADDAC_D2 / PWM_CH2
3DAC_D3 / PWM_CH3
4DAC_D4 / PWM_CH4
5DAC_D5 / PWM_CH5
6DAC_D6 / PWM_CH6
7DAC_D7 / PWM_CH7
