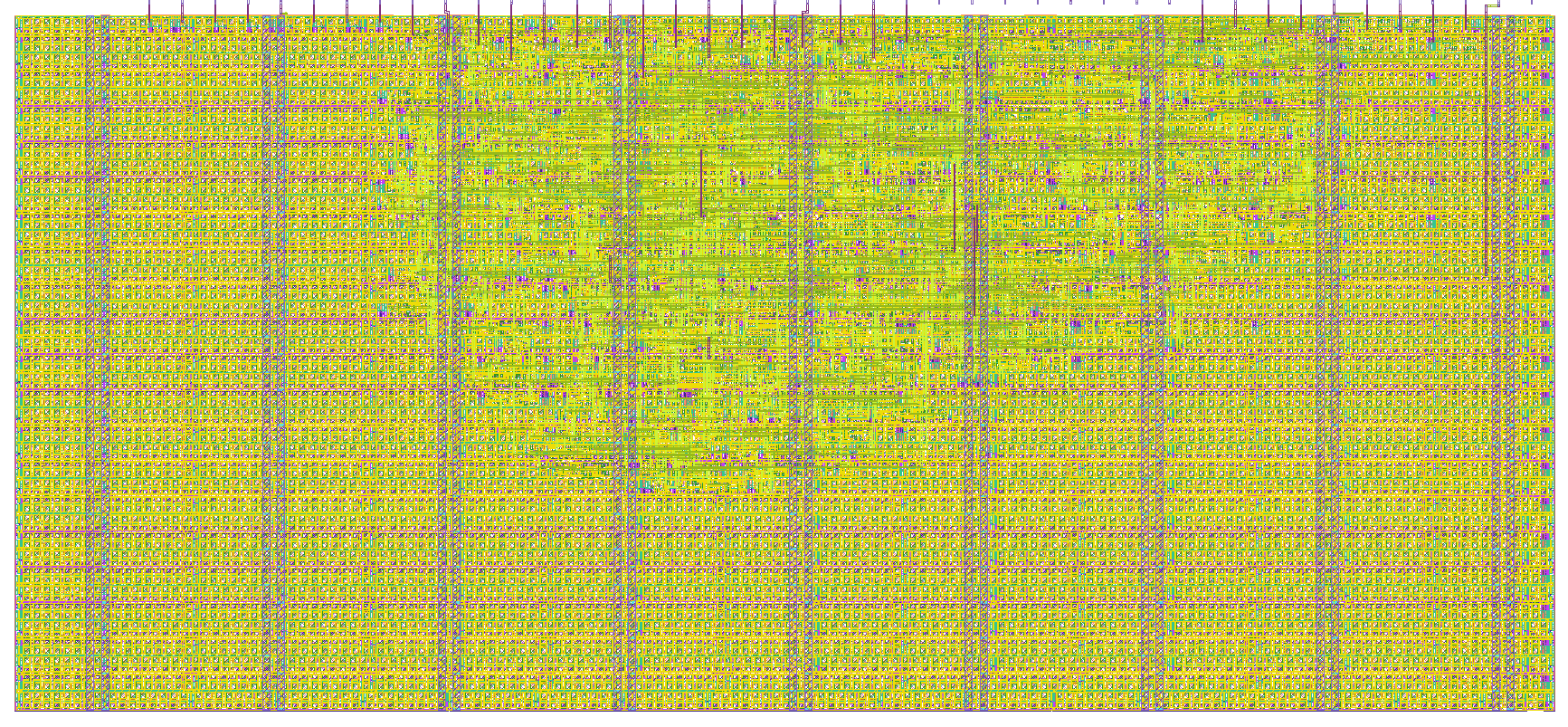

How it works

This project computes the sine and cosine of an input angle using an iterative CORDIC (COordinate Rotation DIgital Computer) algorithm.

The angle is supplied as a 7-bit value on ui[6:0], where 0–127 maps linearly to 0°–360° (so each step is 360 / 128 ≈ 2.81°). Asserting start on ui[7] begins a computation.

Internally the design works in Q2.6 fixed-point (8-bit two's-complement, where 1.0 = 64 = 0x40):

Quadrant fold — the angle is reduced to the first quadrant (0°–90°), and per-quadrant sign flags are recorded so the result can be reflected back into the correct quadrant.
Rotation — a vector is pre-scaled by the CORDIC gain (1/K ≈ 0.607) and rotated through 8 fixed micro-rotations of arctan(2^-i), each taken from a small lookup table. A small FSM (IDLE → LOAD → 8× COMPUTE → DONE) sequences the iterations; each iteration drives a residual-angle accumulator toward zero while the vector's X and Y components converge to cos and sin.
Sign correction — the recorded quadrant flags are applied, producing the final signed sin and cos.

A result is ready roughly 11 clock cycles after start is asserted. start is a level: hold it high to recompute continuously, release it to freeze and hold the last result.

The outputs are 8-bit two's-complement Q2.6 values:

Raw (hex)	Decimal	Real value
`0x40`	+64	+1.0
`0x00`	0	0.0
`0xC0`	−64	−1.0

(Convert any output to its real value with raw / 64.)

sin appears on uo[7:0], cos on uio[7:0] (the bidirectional pins, configured as outputs).

How to test

Put a 7-bit angle on ui[6:0] (0–127 = 0°–360°).
Drive start (ui[7]) high to trigger a computation, then low to latch the result.
After ~11 clock cycles, read sin on uo[7:0] and cos on uio[7:0]. Interpret both as signed Q2.6 (value = raw / 64).

Example angles (input code → angle → expected outputs):

`ui[6:0]`	Angle	`sin` (uo)	`cos` (uio)
0	0°	`0x00` (0)	`0x40` (+1.0)
16	45°	`0x2E` (≈0.72)	`0x2C` (≈0.69)
32	90°	`0x41` (≈+1.0)	`0x01` (≈0)
64	180°	`0x00` (≈0)	`0xC0` (−1.0)
96	270°	`0xBF` (≈−1.0)	`0x01` (≈0)

Outputs are within ±a few LSB of the ideal due to the 8-iteration, 8-bit fixed-point approximation. The included cocotb test (test/test.py) sweeps all 128 angles and checks them bit-exactly against a golden CORDIC model.

External hardware

No external hardware is required to drive the design — the angle and start come from the demo board's input switches.

To view the outputs:

sin is on uo[7:0], which drives the demo board's 8 on-board LEDs directly.
cos is on uio[7:0] (the bidirectional/PMOD pins). To see it, attach an 8-bit LED PMOD (or any 8-LED breakout) to the uio header. This is optional — cos is still readable via the RP2040/test harness without it.

#	Input	Output	Bidirectional
0	angle[0]	sin[0]	cos[0]
1	angle[1]	sin[1]	cos[1]
2	angle[2]	sin[2]	cos[2]
3	angle[3]	sin[3]	cos[3]
4	angle[4]	sin[4]	cos[4]
5	angle[5]	sin[5]	cos[5]
6	angle[6]	sin[6]	cos[6]
7	start	sin[7]	cos[7]
