576 4-bit Maximum-Length LFSR
576 : 4-bit Maximum-Length LFSR
- Author: Geeta Doddamani
- Description: A 4-bit maximum-length LFSR with seed 0x1 and feedback polynomial x4+x+1. Generates pseudo-random sequence of period 15.
- GitHub repository

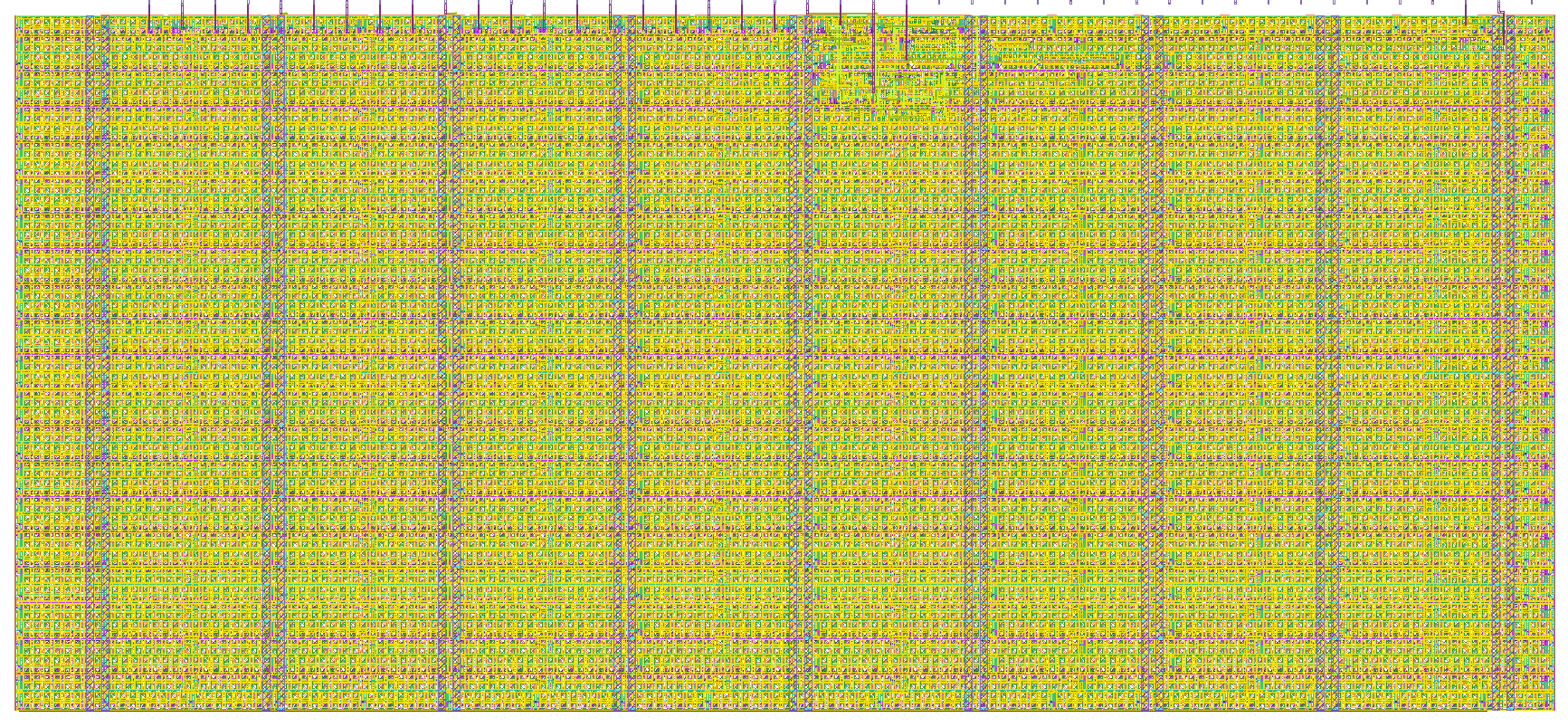

- Open in 3D viewer
- Clock: 10000000 Hz
How it works
This project implements a 4-bit maximum-length Linear Feedback Shift Register (LFSR) using the feedback polynomial x4+x+1 with taps at bit positions 3 and 0.
On every rising clock edge the register shifts left by one position. A feedback bit computed as XOR of bits 3 and 0 is inserted at the LSB. When the active-low reset (rst_n) is asserted the register loads seed value 0x1.
The LFSR cycles through all 15 non-zero states before repeating: 1, 3, 7, F, E, D, A, 5, B, 6, C, 9, 2, 4, 8.
The 4-bit output is on uo_out[3:0]. The upper nibble uo_out[7:4] is always 0. All bidirectional IOs are unused.
How to test
Assert reset by driving rst_n = 0 for at least 2 clock cycles. After reset, uo_out[3:0] should read 0x1. Release reset. On each rising clock edge the output advances through the sequence: 1, 3, 7, F, E, D, A, 5, B, 6, C, 9, 2, 4, 8, then repeats. After 15 cycles the output returns to 0x1.
External hardware
None required.
IO
| # | Input | Output | Bidirectional |
|---|---|---|---|
| 0 | LFSR bit 0 (LSB) | ||
| 1 | LFSR bit 1 | ||
| 2 | LFSR bit 2 | ||
| 3 | LFSR bit 3 (MSB) | ||
| 4 | |||
| 5 | |||
| 6 | |||
| 7 |
