How it works

Overview

This design implements a Sequential EML Engine with Operand Feedback — a compact hardware accelerator for computing exponential-logarithmic expressions using Mitchell's approximation. Instead of building massive expression trees in silicon, we use a single reusable EML unit and feedback loops to compute nested expressions over multiple cycles.

Results

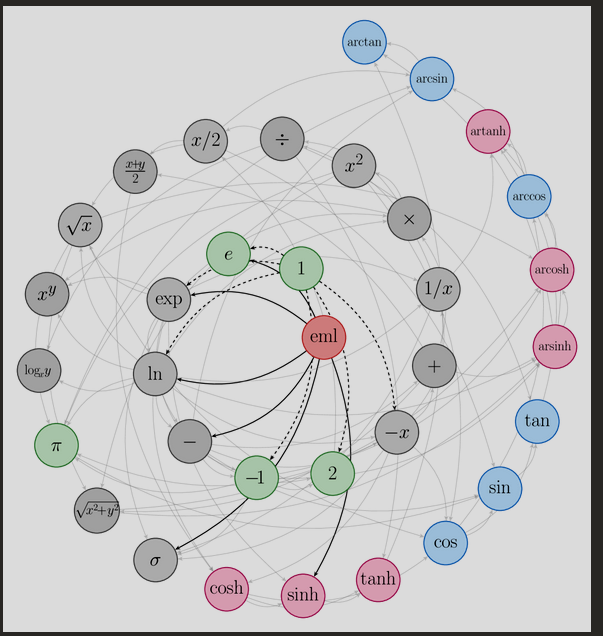

The results figure explains how a single EML block can be reused across cycles to build nested expressions.

Core Formula:

out = exp(x) - ln(y)

Where exp() and ln() are computed using Mitchell's fast approximations:

exp(x) = 2^(x / ln(2)) = 2^(x * 1.4427)
ln(y) = log2(y) / log2(e) = log2(y) * 0.693

This work is based on the techniques and evaluation presented in the paper at arXiv:2603.21852.

Architecture Components

1. EML Tile (Combinational)

The core computation unit (eml_tile.v):

EML internal architecture

No clock — pure combinational logic
Computes: out = exp(x) - ln(y)
Uses Mitchell's approximation for fast exp2 and log2
Fixed-point arithmetic: Q6.6 format (12-bit signed)
- 6 integer bits: range -32 to +31
- 6 fractional bits: resolution ≈ 0.0156
- Example: 0.5 → 32 (0.5 × 64), 1.0 → 64, 2.0 → 128

Constants (Q6.6):

INV_LN2 = 92 (≈ 1.4375/1.4427)
LN2 = 44 (≈ 0.6875/0.6931)

2. Feedback Cell (Sequential)

The stateful wrapper (eml_feedback_cell.v):

Dual feedback cell architecture

Operation Modes (controlled by sel_x, sel_y):

sel_x	sel_y	Mode	Computation
0	0	Feed-forward	`out = eml(x_ext, y_ext)` — single cycle
1	0	Iterate X	`out_n = eml(out_{n-1}, y_ext)` — reuse X result
0	1	Iterate Y	`out_n = eml(x_ext, out_{n-1})` — reuse Y result
1	1	Cross-feedback	`out_n = eml(out_{n-1}, out_{n-1})` — both operands from prev

3. SPI Slave Interface

The control layer (eml_spi_wrapper.v):

SPI wrapper architecture

Bit-bang SPI protocol (standard 3-wire: MOSI, SCLK, CS_N → MISO)
16-bit frames for command/data exchange
3-stage clock synchronizers for cross-domain safety
Result latching after computation completes

Register Map:

Addr 0 (RW=0): Control register

[11:2] = reserved
[1]    = sel_y  (0=external Y, 1=feedback)
[0]    = sel_x  (0=external X, 1=feedback)
[2]    = valid  (write: pulse=1 to trigger; read: n/a)

Addr 1 (RW=0): X input register (signed Q6.6)
```
[11:0] = x_ext value
```
Addr 2 (RW=0): Y input register (unsigned Q6.6)
```
[11:0] = y_ext value
```

Addr 3 (RW=1): Result register (read-only)

[15:13] = reserved (read as 0)
[12]    = overflow flag
[11:0]  = result (signed Q6.6)

4. Top Module

TinyTapeout wrapper (project.v):

Routes UIO pins to SPI interface:
- uio_in[0] = MOSI
- uio_in[1] = SCLK
- uio_in[2] = CS_N
- uio_out[0] = MISO

How Sequential Operation Works

Example: Computing a nested expression

Goal: Calculate f(x) = eml(eml(x, 1), 1) which represents computing:

Inner: temp = exp(x) - ln(1) = exp(x)
Outer: f = exp(temp) - ln(1) = exp(exp(x))

Cycle-by-cycle execution:

Cycle 1 — Load inputs and configure for feed-forward:
  sel_x = 0, sel_y = 0        (use external inputs)
  x_ext = x, y_ext = 1.0
  Result: prev = eml(x, 1.0) = exp(x)

Cycle 2 — Switch to iterate mode (reuse X result):
  sel_x = 1, sel_y = 0        (X from feedback, Y external)
  y_ext = 1.0 (unchanged)
  x_in = prev (from cycle 1)  = exp(x)
  Result: out = eml(exp(x), 1.0) = exp(exp(x)) ✓

Advantage: Single EML unit does the work of a 2-level tree → ~70% area savings vs. a pipeline.

Approximation Accuracy

Mitchell's approximation trades precision for speed:

exp(x): Error typically < 2% for |x| < 8
ln(y): Error typically < 2% for y ∈ [0.5, 2.0]
Q6.6 quantization: Additional ±0.78% rounding error

Typical use cases:

Machine learning inference (softmax, sigmoid approximation)
Signal processing (exponential smoothing)
Logarithmic compression

For applications requiring higher precision, use external high-precision math libraries.

How to test

How to run

pip install -r test/requirements.txt
cd test
make -B

External hardware

Required items

A host SPI master (capable of 3-wire SPI: MOSI, SCLK, CS_N, and reading MISO)
A controller/host flow that provides x, y, and suitable sel settings to realize the target expression
Optional: logic analyzer or oscilloscope for SPI debugging and signal inspection

#	Input	Output	Bidirectional
0	unused	unused	spi_mosi
1	unused	unused	spi_sck
2	unused	unused	spi_cs_n
3	unused	unused	spi_miso
4	unused	unused	unused
5	unused	unused	unused
6	unused	unused	unused
7	unused	unused	unused
