462 ttihp-26a-risc-v-wg-swc1
462 : ttihp-26a-risc-v-wg-swc1
- Author: risc-v-wg
- Description: RISCV rv32i
- GitHub repository

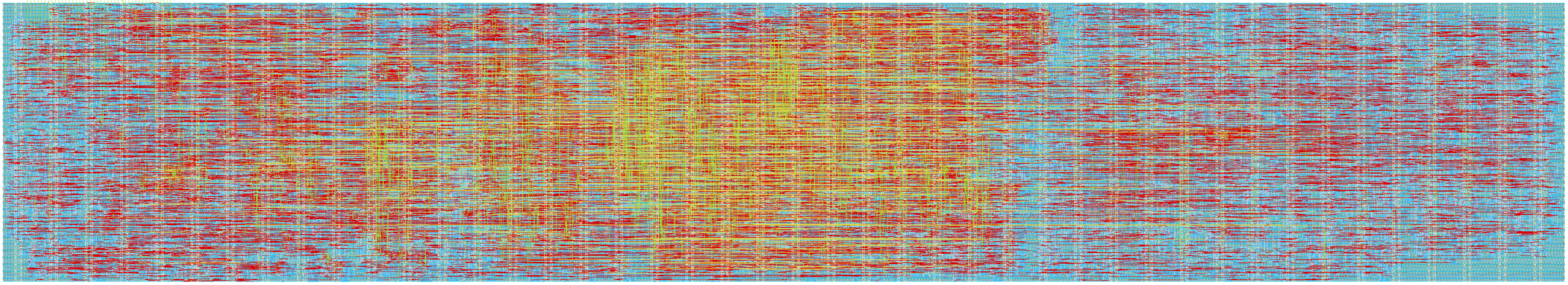

- Open in 3D viewer
- Clock: 0 Hz
How it works
This is a RISC-V 32I instruction set compatible CPU that uses QSPI PSRAM/Flash as external memory. It uses a state machine design for Tiny Tapeout to achieve a compact size. Features:
- 64-bit Free run counter with interrupt
- QSPI memory interface
- 4-bit GPIO, 3-bit GPO, 6-bit GPI
- 1 interrupt pin
- UART with monitor functions (program read/write, etc.) Constraints:
- M mode only
- Fence not supported
- Ebreak not tested
How to test
Connect external QSPI PSRAM and connect the UART to a terminal. Upload the test program from the terminal and execute it to verify operation.
UART monitor command list:
- g : goto PC address (executes until Ctrl-c is pressed) : format: g <address>
- Ctrl-c : Interrupts all commands. Press Ctrl-c if you get stuck : format: Ctrl-c
- w : Writes data to memory : format: w <address> .<data>... Ctrl-c
- r : Reads data from memory : format: r <start_address> <end_address>
- s : Set breakpoint address: format s <break point address> When setting: Specify the address value where you want to break When clearing: Specify an odd number for the address (set bit[0] to 1)
- l : Set data read breakpoint address: format l <break point address> When setting: Specify the address value where you want to break When clearing: Specify an odd number for the address (set bit[0] to 1)
- m : Set data write breakpoint address: format m <break point address> When setting: Specify the address value where you want to break When clearing: Specify an odd number for the address (set bit[0] to 1)
- j : Display the current PC value: format j
- i : Write data to I/O registers, etc. The target changes based on the upper 2 bits of the address : format: I <address> <data> .... Ctrl-c Upper 2 bits == 2'b11 ; I/O register Upper 2 bits == 2'b10 : CSR register Upper 2 bits == 2'b00 : Register File *However, for CSR and RF, specify an address equal to 4 times the register number Example: Address for CSR mstatus (0x300) is 80000c00 RF x3 Register: 0000 000c
- p: Performs data read operations on I/O registers, etc. The upper 16 bits of the address are ignored : format: p <start_address> <end_address> Upper 2 bits == 2’b11 ; I/O Register Upper 2 bits == 2’b10 : CSR Register Upper 2 bits == 2’b00 : Register File *However, for CSR and RF registers, specify an address equal to 4 times the register number Example: CSR mstatus (0x300) address: 80000c00 RF x3 Register 0000 000c
- t : Memory zero-fill : format t <start_address> <end_address>
External hardware
- An external QSPI PSRAM is required.
- UART connection to a terminal is requred for contorlling chip.
IO
| # | Input | Output | Bidirectional |
|---|---|---|---|
| 0 | rx | tx | sio[0] |
| 1 | interrupt_0 | ce_n[0] | sio[1] |
| 2 | init_qspicmd | ce_n[1] | sio[2] |
| 3 | init_latency[0] | ce_n[2] | sio[3] |
| 4 | init_latency[1] | sck | gpio[0] |
| 5 | init_cpu_start | rgb_led[0] | gpio[1] |
| 6 | init_uart[0] | rgb_led[1] | gpio[2] |
| 7 | init_uart[1] | rgb_led[2] | gpio[3] |
