How it works
This design integrates a KianV RV32IMA RISC-V processor with an SV32 MMU and hardware caches (icache + dcache). The system is capable of booting Linux, µLinux (uClinux), and xv6, providing a compact Linux-capable SoC platform.

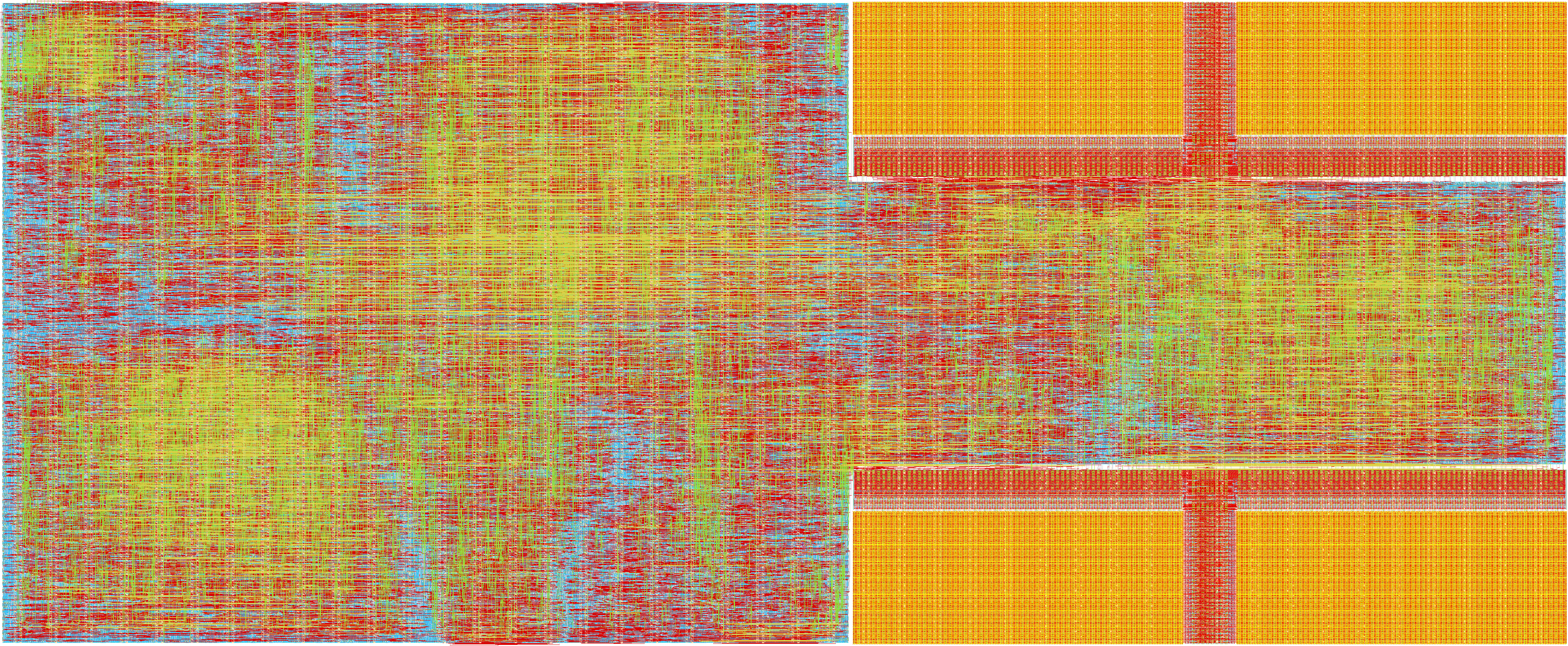

The processor supports virtual memory through the SV32 MMU with two-level page table translation and separate instruction and data TLBs (8 entries each). The cache hierarchy uses a 512-set direct-mapped icache and dcache backed by IHP SG13G2 SRAM macros.
The SoC includes 32 MiB of external QSPI PSRAM (4 × 8 MiB banks), 16 MiB of external SPI NOR flash, and memory-mapped peripherals such as UART, SPI, and GPIO.
System Memory Map
| Address |
Size |
Purpose |
| 0x02000000 |
64 KiB |
CLINT (timer/interrupts) |
| 0x10000000 |
0x06 |
UART Peripheral |
| 0x1000000C |
0x0C |
UART Divider / CPU info |
| 0x10000700 |
0x0C |
GPIO Peripheral |
| 0x10500000 |
0x08 |
SPI Peripheral |
| 0x10600000 |
0x04 |
QSPI PSRAM Control |
| 0x11100000 |
0x04 |
Reset / HALT control |
| 0x20000000 |
16 MiB |
SPI NOR Flash |
| 0x80000000 |
32 MiB |
QSPI PSRAM |
The system boots from SPI NOR flash. After reset, the CPU starts executing code from 0x20000000.
UART Peripheral registers
| Address |
Name |
Description |
| 0x10000000 |
UART_DATA |
Write to transmit, read to receive |
| 0x10000005 |
UART_LSR |
UART line status register |
| 0x1000000C |
UART_DIV0 |
Clock divider for UART baud rate |
| 0x10000010 |
UART_DIV1 |
Clock divider (alternate) |
| 0x10000014 |
CPU_FREQ |
CPU frequency register (Q8.8 MHz) |
| 0x10000018 |
MEMSIZE |
Memory size register |
SPI Peripheral registers
| Address |
Name |
Description |
| 0x10500000 |
SPI_CTRL0 |
SPI control |
| 0x10500004 |
SPI_DATA0 |
SPI data |
GPIO Peripheral registers
| Address |
Name |
Bits |
Description |
| 0x10000700 |
GPIO_DIR |
- |
Direction (output enable), currently unused in HW |
| 0x10000704 |
GPIO_OUT |
[9] |
Output value driven on uo_out[1] |
| 0x10000708 |
GPIO_IN |
[7:0] |
Read all 8 input pins (ui_in[7:0]) |
Notes: GPIO_DIR is implemented in the register file but the output enable has no hardware effect. Only a single output bit exists (uo_out[1]), controlled via bit 9 of GPIO_OUT. All 8 ui_in pins are readable via GPIO_IN; pins 2 and 7 are shared with SPI MISO and UART RX respectively.
QSPI PSRAM Control register
| Address |
Name |
Description |
| 0x10600000 |
QSPI_CTRL |
Bit 0: half_clock (1=div4 slow, 0=div2 fast clock) |
CPU control register
| Address |
Name |
Description |
| 0x11100000 |
CPU_RESET |
Write 0x7777 to reset the CPU, 0x5555 to halt the CPU |
How to test
We will provide a pre-built system image + instructions how to build your own image.
External hardware
