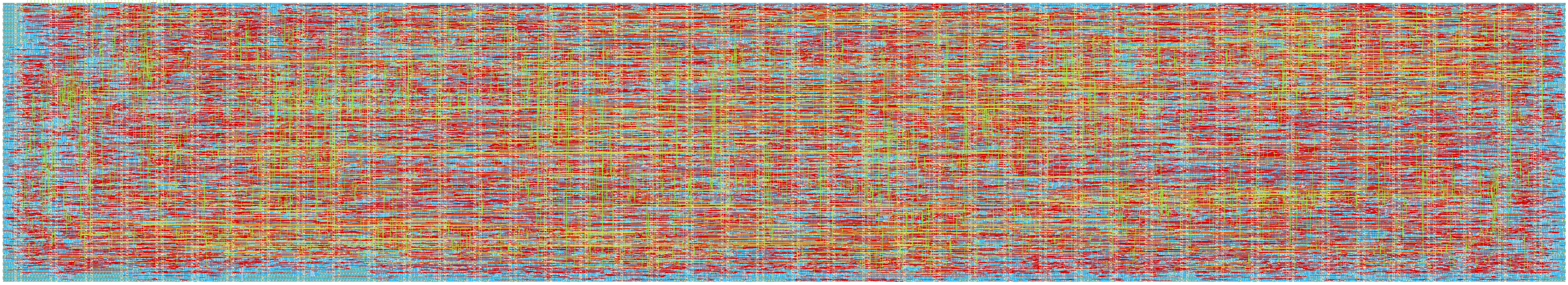

How it works

This design computes the modular multiplicative inverse over the secp256k1 prime field using the Bernstein-Yang divstep algorithm. Given a 256-bit input a, it computes a^(-1) mod p where p is the secp256k1 prime 0xFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFEFFFFFC2F.

Core algorithm

The core iterates a single combinational divstep unit up to 742 times sequentially. Opportunistic double-step and triple-step optimizations fold extra iterations when the intermediate value g has trailing zero bits, reducing the typical cycle count to ~335 clock cycles. Early termination occurs if g reaches zero before all iterations complete. After iteration, a sign-correction step reduces the result into [0, p).

Byte-serial interface

Data is loaded and read via an 8-bit byte-serial interface using a 272-bit shift register (34 bytes). Control signals use rising-edge detection, so holding wr or rd high for multiple cycles only triggers one shift. The FSM has three states:

S_LOAD: Accepts 34 input bytes (MSB-first), shifting each into the register on a wr rising edge.
S_BUSY: Runs the divstep iterations. The valid flag is low. A second input can be pipelined during this state (see below).
S_READ: Result is available. The MSB byte appears on uo_out immediately; pulse rd to shift out the remaining 33 bytes.

Parity error detection

Input and output data are protected by a single even-parity bit. The 34-byte input contains 256 data bits and 1 parity bit (bit 15 of the shift register). On load, the design XORs all data bits with the received parity bit. If the result is non-zero, a parity_error flag is set on uio_out[4] and embedded in the output. The output also includes a parity bit computed from the result so the reader can verify data integrity.

Pipelined input loading

During S_BUSY, the ready signal remains high, allowing a second 34-byte input to be loaded while the first computation runs. When the first result is ready, a single wr pulse in S_READ kicks off the second computation without re-loading.

Output modes

The mode pins (uio_in[5:4]) select what appears in the output shift register:

Mode	Description
`00`	Normal inverse result (256-bit result + parity bit + parity_error flag)
`01`	Performance counters: total cycles, double-step count, triple-step count, iteration count, and a status byte (`{parity_error, trng_ready, 6'b0}`)
`10`	TRNG random bytes (one byte per `rd` pulse, gated by `trng_ready`)
`11`	Reserved (falls through to normal result)

TRNG

A true random number generator provides random bytes via mode 10. In hardware, three ring oscillators (5, 7, and 9 inverters) are XOR'd for raw entropy, then passed through a Von Neumann debiaser to produce unbiased bits. The ring oscillators are gated by the ena signal — when ena is low, the oscillators stop and no entropy is generated. The trng_ready flag (uio_out[6]) indicates when a full byte is available. Pulse rd in TRNG mode to consume the byte and begin filling the next.

In simulation, an LFSR replaces the ring oscillators for deterministic testability.

How to test

Assert rst_n low for at least 2 clock cycles, then release. Ensure ena is high.
Confirm ready (uio_out[0]) is high, indicating the S_LOAD state.
Write 34 bytes MSB-first: place each byte on ui_in[7:0] and pulse wr (uio_in[2]) high then low. The 34 bytes encode 256 data bits, 1 parity bit, and 15 padding bits.
After the 34th byte, computation starts automatically. Wait for valid (uio_out[1]) to go high (~335 clock cycles typical).
Read the first result byte directly from uo_out[7:0].
Pulse rd (uio_in[3]) 33 times to shift out the remaining bytes, reading uo_out after each pulse.
To compute another inverse, start again from step 3. For pipelined operation, load the next input during step 4 (while ready is still high).

Performance counter readout

Set uio_in[5:4] = 01 before the computation completes. The result shift register will contain performance data instead of the inverse result. Read 34 bytes as normal.

TRNG readout

After reaching S_READ, set uio_in[5:4] = 10. Wait for trng_ready (uio_out[6]) to go high, then read the byte from uo_out[7:0]. Pulse rd to consume and request the next byte.

External hardware

A microcontroller or FPGA is needed to drive the byte-serial interface (provide clocked wr/rd pulses and supply/read data bytes). The ena signal must be held high for the TRNG ring oscillators to operate. No other external hardware is required.

#	Input	Output	Bidirectional
0	data_in[0]	data_out[0]	ready (output)
1	data_in[1]	data_out[1]	valid (output)
2	data_in[2]	data_out[2]	wr (input)
3	data_in[3]	data_out[3]	rd (input)
4	data_in[4]	data_out[4]	parity_error (output)
5	data_in[5]	data_out[5]
6	data_in[6]	data_out[6]	trng_ready (output)
7	data_in[7]	data_out[7]
