163 m6502 Microcontroller
163 : m6502 Microcontroller
- Author: Chris Moos
- Description: Complete 6502 CPU with bus multiplexer, GPIO, Timer, and UART
- GitHub repository

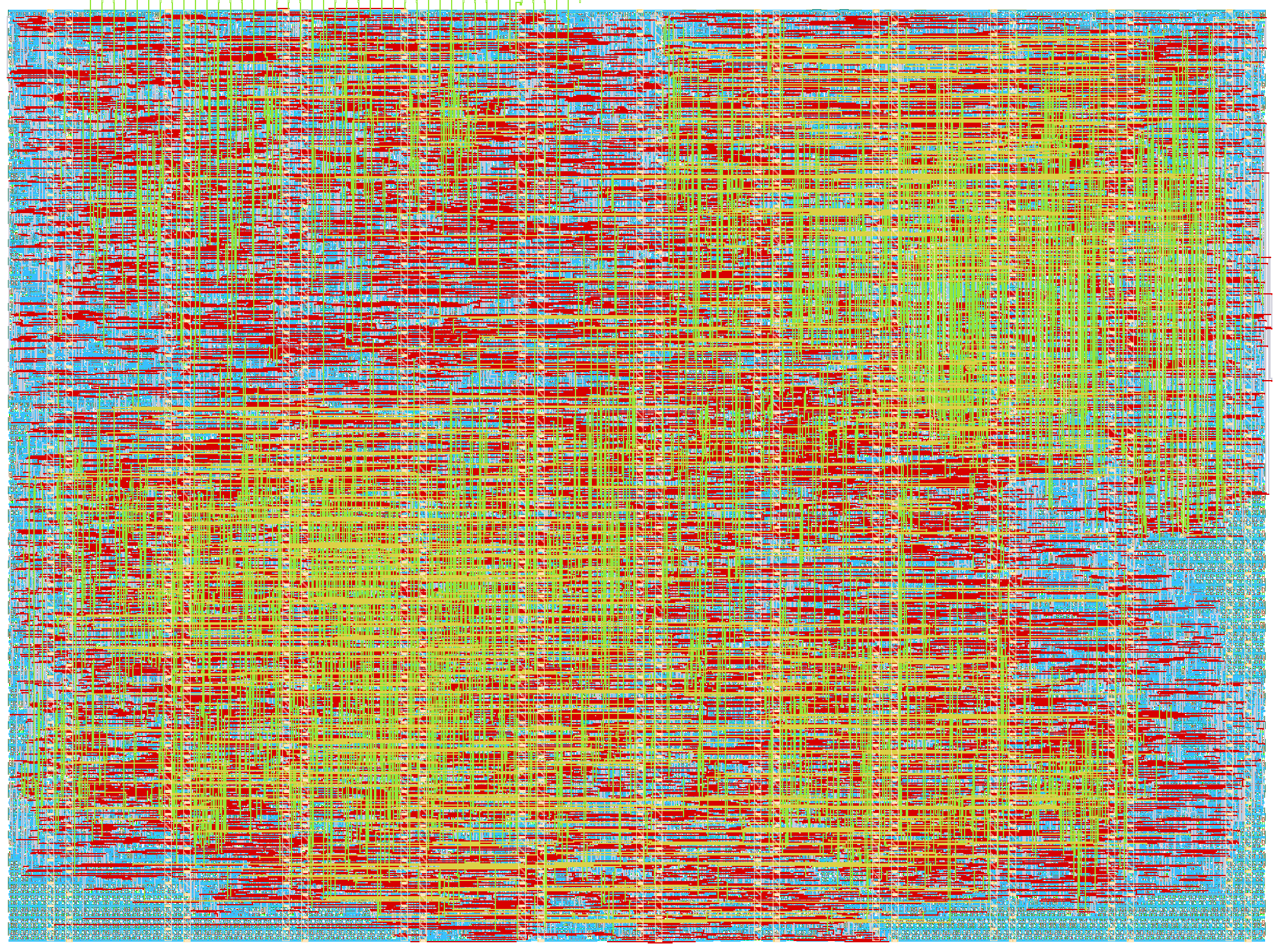

- Open in 3D viewer
- Clock: 50000000 Hz
m6502 Microcontroller for TinyTapeout
A complete MOS Technology 6502-compatible CPU with integrated peripherals, designed specifically for TinyTapeout. Features a bus multiplexer architecture to efficiently expose the full 64KB address space and peripheral functions through the limited 24-pin interface.
Features
- Complete 6502 CPU: Cycle-accurate implementation with all documented opcodes
- Bus Multiplexer: 4-phase multiplexing reduces pin requirements from 24 pins to 8 data pins + control
- External Memory Support: Full 64KB address space via multiplexed bus (RP2040 controller recommended)
- Integrated Peripherals:
- GPIO: 6 pins (2 input-only, 4 output-only on TinyTapeout)
- UART: 8N1 serial with 4-byte TX/RX FIFOs, configurable baud rate
- Timer: 16-bit timer with prescaler, auto-reload, and interrupt support
- Clock Control: Runtime CPU clock division for power management
- Pin Multiplexing: UART can be routed to any GPIO pin via mode registers
- TinyTapeout Optimized: Fits in 2×2 tile allocation (~2,900 lines RTL)
How it Works
System Architecture
The 6502 MCU consists of three main components:
- 6502 CPU Core: Executes instructions and drives the internal bus
- Bus Multiplexer: Time-multiplexes 16-bit address + 8-bit data into 8 shared pins
- Memory-Mapped Peripherals: Decode addresses 0xA000-0xA047 for internal devices
All memory accesses outside the peripheral range (0xA000-0xA047) are routed to the external bus via the multiplexer, allowing up to ~64KB of external RAM/ROM.
Bus Multiplexing
The multiplexer reduces pin count by sequencing through 4 phases within each CPU cycle:
| MUX_SEL | Phase | Direction | Data |
|---|---|---|---|
01 |
ADDR_HI | MCU → Ext | Address[15:8] |
00 |
ADDR_LO | MCU → Ext | Address[7:0] |
10 |
DATA_IN | Ext → MCU | Read data |
11 |
DATA_OUT | MCU → Ext | Write data |
The external controller (RP2040 on TinyTapeout demo board) monitors PHI2 and sequences MUX_SEL accordingly. There is no performance penalty - all phases complete within one CPU cycle.
Memory Map
| Address Range | Size | Description |
|---|---|---|
| 0x0000-0x9FFF | 40KB | External memory |
| 0xA000-0xA00B | 12B | GPIO registers |
| 0xA010-0xA017 | 8B | Reserved |
| 0xA020-0xA027 | 8B | Timer |
| 0xA030-0xA033 | 4B | Clock control |
| 0xA040-0xA047 | 8B | UART |
| 0xA048-0xFFFF | ~22KB | External memory |
Typical configuration: RAM at 0x0000-0x7FFF, ROM at 0x8000-0xFFFF with reset vector at 0xFFFC.
Pin Configuration
Input Pins (ui_in[7:0])
| Pin | Function | Description |
|---|---|---|
| 0 | MUX_SEL[0] | Bus phase select bit 0 |
| 1 | MUX_SEL[1] | Bus phase select bit 1 |
| 2 | RDY | CPU ready signal (active high) |
| 3 | NMI_N | Non-maskable interrupt (active low) |
| 4 | IRQ_N | Interrupt request (active low) |
| 5 | SO_N | Set overflow flag (active low) |
| 6 | GPIOA0 | GPIO pin 0 input (unidirectional) |
| 7 | GPIOA1 | GPIO pin 1 input (unidirectional) |
Output Pins (uo_out[7:0])
| Pin | Function | Description |
|---|---|---|
| 0 | PHI1 | CPU phase 1 clock |
| 1 | PHI2 | CPU phase 2 clock |
| 2 | R/W | Read/write signal (1=read, 0=write) |
| 3 | SYNC | Opcode fetch indicator |
| 4 | GPIOA2 | GPIO pin 2 output (unidirectional) |
| 5 | GPIOA3 | GPIO pin 3 output (unidirectional) |
| 6 | GPIOA4 | GPIO pin 4 output (unidirectional) |
| 7 | GPIOA5 | GPIO pin 5 output (unidirectional) |
Bidirectional Pins (uio[7:0])
| Pin | Function | Description |
|---|---|---|
| 0-7 | MUX_DATA[7:0] | Multiplexed address/data bus |
How to Test
Minimal Setup
- Power: 3.3V I/O, 1.2V core
- Clock: 20MHz nominal (configurable)
- Reset: Assert reset_n low, then high
- Memory Controller: RP2040 or similar providing:
- MUX_SEL[1:0] sequencing
- External RAM/ROM contents
- Proper bus timing
Peripheral Registers Quick Reference
GPIO (0xA000-0xA00B)
- 0xA000: OE - Output Enable (0=input, 1=output)
- 0xA001: OUT - Output Data
- 0xA002: IN - Input Data (read-only)
- 0xA004-0xA00B: MODE_PIN0-7 - Pin function select
- 0x00 = GPIO, 0x01 = UART_TX, 0x02 = UART_RX
- On TinyTapeout only PIN0-5 are connected to physical pins
Timer (0xA020-0xA027)
- 0xA020: CTRL - Control (ENABLE | AUTO_RELOAD | IRQ_ENABLE | LOAD)
- 0xA021: STATUS - Bit 0 = OVERFLOW (write 1 to clear)
- 0xA022-0xA023: COUNT_LO/HI - Counter value (read-only)
- 0xA024-0xA025: RELOAD_LO/HI - Reload value
- 0xA026: PRESCALER - Clock prescaler (0-255)
Clock Control (0xA030-0xA033)
- 0xA030: CPU_DIV - CPU clock divisor (0-255)
- cpu_freq = cpu_clk / (CPU_DIV + 1)
- 0xA032: STATUS - Bit 0 = CPU_LOCKED (always 1)
UART (0xA040-0xA047)
- 0xA040: CTRL - TX_EN | RX_EN | TX_IRQ_EN | RX_IRQ_EN
- 0xA041: STATUS - TX_READY | RX_READY | TX_EMPTY | RX_FULL | TX_ACTIVE | RX_ERROR
- 0xA042: DATA - FIFO access (read/write)
- 0xA043-0xA044: BAUD_LO/HI - Baud divisor
- baud = sysclk / (16 × (divisor + 1))
Testing
Testbenches use cocotb:
cd test
make
Tests cover:
- CPU instruction execution
- Peripheral register access
- Bus multiplexer protocol
- UART TX/RX
- Timer operation
- GPIO modes
Architecture
Technology: IHP SG13G2 130nm Die Size: 2×2 TinyTapeout tiles Clock: 20 MHz nominal
External Resources
- Datasheet: m6502_datasheet.pdf - Complete technical reference
- Upstream Project: m6502 - Full MCU implementation with RP2040 memory controller example
- 6502 Reference: 6502.org - Instruction set and programming guides
- W65C02S Datasheet: Western Design Center
- MOS 6502 Programming Manual: Original MOS Technology documentation
Development Tools
- cc65: C compiler and assembler suite for 6502
- ACME: Cross-assembler
- py65: Python-based 6502 simulator for testing code before hardware
What is TinyTapeout?
Tiny Tapeout is an educational project that makes it easier and cheaper to get your digital designs manufactured on a real chip. Learn more at tinytapeout.com.
IO
| # | Input | Output | Bidirectional |
|---|---|---|---|
| 0 | MUX_SEL[0] - Bus phase select bit 0 | PHI1 - CPU phase 1 clock | MUX_DATA[0] - Multiplexed address/data bus |
| 1 | MUX_SEL[1] - Bus phase select bit 1 | PHI2 - CPU phase 2 clock | MUX_DATA[1] - Multiplexed address/data bus |
| 2 | RDY - CPU ready signal | R/W - Read/write signal (1=read, 0=write) | MUX_DATA[2] - Multiplexed address/data bus |
| 3 | NMI_N - Non-maskable interrupt | SYNC - Opcode fetch indicator | MUX_DATA[3] - Multiplexed address/data bus |
| 4 | IRQ_N - Interrupt request | GPIOA2 - GPIO pin 2 output (unidirectional) | MUX_DATA[4] - Multiplexed address/data bus |
| 5 | SO_N - Set overflow flag | GPIOA3 - GPIO pin 3 output (unidirectional) | MUX_DATA[5] - Multiplexed address/data bus |
| 6 | GPIOA0 - GPIO pin 0 input (unidirectional) | GPIOA4 - GPIO pin 4 output (unidirectional) | MUX_DATA[6] - Multiplexed address/data bus |
| 7 | GPIOA1 - GPIO pin 1 input (unidirectional) | GPIOA5 - GPIO pin 5 output (unidirectional) | MUX_DATA[7] - Multiplexed address/data bus |
