489 OCP MXFP8 Streaming MAC Unit :: Quicker, easier and cheaper to make your own chip!

How it works

The OCP MXFP8 Streaming MAC Unit is a high-performance, area-optimized arithmetic core designed for AI inference acceleration. It implements the OpenCompute (OCP) Microscaling Formats (MX) Specification v1.0, supporting a wide range of sub-8-bit floating-point and integer formats with hardware-accelerated shared scaling.

Architectural Overview

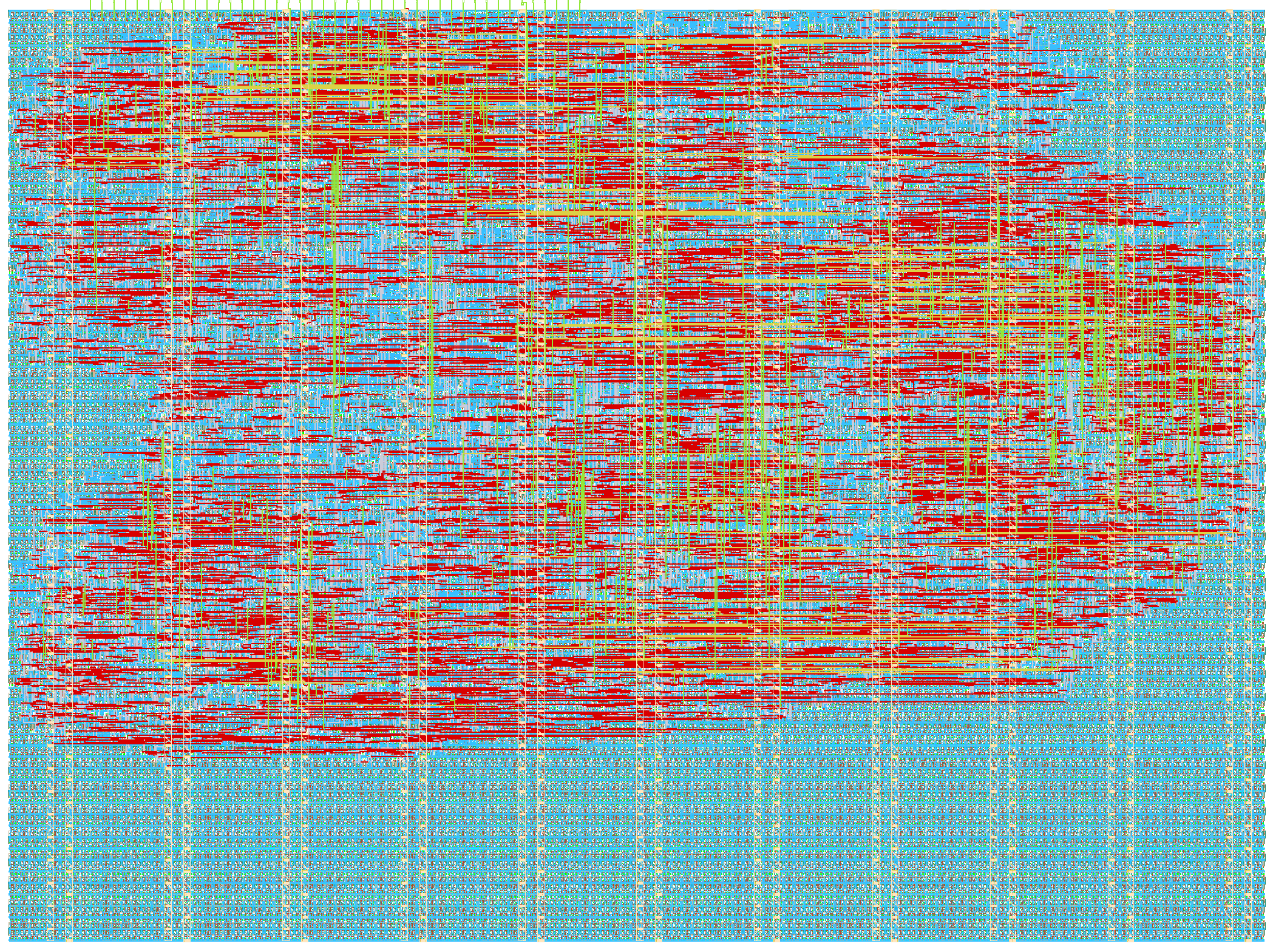

The unit is configured in its "Full" edition (2x2 tiles), featuring:

Dual-Lane Multiplier: Parallel processing of operands with support for Vector Packing (FP4).
40-bit Aligner & 32-bit Accumulator: High-precision internal datapath to prevent overflow during long dot-product sequences.
Shared Scaling (UE8M0): Automatic application of 8-bit exponents ($2^{E-127}$) to element blocks.
Flexible Rounding: Support for Truncate (TRN), Ceil (CEL), Floor (FLR), and Round-to-Nearest-Even (RNE).
Mixed Precision: Independent format control for Operand A and Operand B within a single MAC block.
Logarithmic Multiplier (LNS): Optional area-optimized path using Mitchell's Approximation to reduce multiplier area by >50%.

Streaming Protocol

To maintain a minimal IO footprint (8-bit ports), the unit uses a 41-cycle streaming protocol to process a block of 32 elements ($k=32$).

Cycle	Input `ui_in[7:0]`	Input `uio_in[7:0]`	Output `uo_out[7:0]`	Description
0	Metadata 0	Metadata 1	0x00	IDLE: Load MX+ / Debug or Start Fast Protocol.
1	Scale A	Format A / BM A	0x00	Load Scale A, Format A, and BM Index A.
2	Scale B	Format B / BM B	0x00	Load Scale B, Format B, and BM Index B.
3-34	Element $A_i$	Element $B_i$	0x00	Stream 32 pairs of elements.*
35-36	-	-	0x00	Pipeline flush & final scaling.
37-40	-	-	Result [31:0]	Serialized 32-bit result (MSB first).

*Note: In Packed Mode (uio_in[6]=1 in Cycle 0), the STREAM phase is reduced to 16 cycles (Cycles 3-18).

Register Layouts

The unit captures configuration and scaling data during the first three cycles of the protocol.

Cycle 0: Metadata 0 (`ui_in`)

Metadata 0

Short Protocol ([7]): 1: Reuse previous scales/formats; immediately jump to Cycle 3.
Debug En ([6]): 1: Enable internal probing and metadata echo at the end of the block.
Loopback En ([5]): 1: Direct input-to-output mapping for physical connectivity testing.
LNS Mode ([4:3]):
- 0: Normal (Exact IEEE-like multiplication).
- 1: LNS (Logarithmic Number System using Mitchell's Approximation).
- 2: Hybrid (Standard for Block Max elements, LNS for all others).
NBM Offset A ([2:0]): (Standard Start only) Exponent offset for non-Block Max elements in Operand A (MX++).

Cycle 0: Metadata 1 (`uio_in`)

Metadata 1

MX+ Enable ([7]): 1: Enable OCP MX+ extensions (Repurposed exponents and Block Max tracking).
Packed Mode ([6]): 1: Enable Vector Packing for 4-bit formats (2 elements per byte, Cycles 3-18).
Overflow Mode ([5]): 0: SAT (Saturate to Max/Min), 1: WRAP (Modulo arithmetic).
Rounding Mode ([4:3]):
- 0: TRN (Truncate/Towards Zero).
- 1: CEL (Ceil/Towards $+\infty$).
- 2: FLR (Floor/Towards $-\infty$).
- 3: RNE (Round-to-Nearest-Ties-to-Even).
NBM Offset B / Format A/B ([2:0]):
- Standard Start: NBM Offset B (Exponent offset for Operand B).
- Short Protocol: Combined Format A & B selection.

Cycle 1: Scale A (`ui_in`) & Config A (`uio_in`)

Scale A (ui_in[7:0]):

Scale A

Shared Scale A: 8-bit unsigned biased exponent (UE8M0, Bias 127) applied to all elements in Operand A.

Config A (uio_in[7:0]):

Config A

BM Index A ([7:3]): The index (0-31) of the "Block Max" element in Operand A (used in MX+ mode).
Format A ([2:0]):
- 0: E4M3, 1: E5M2, 2: E3M2, 3: E2M3, 4: E2M1, 5: INT8, 6: INT8_SYM.

Cycle 2: Scale B (`ui_in`) & Config B (`uio_in`)

Scale B (ui_in[7:0]):

Scale B

Shared Scale B: 8-bit unsigned biased exponent (UE8M0, Bias 127) applied to all elements in Operand B.

Config B (uio_in[7:0]):

Config B

BM Index B ([7:3]): The index (0-31) of the "Block Max" element in Operand B.
Format B ([2:0]): Independent format for Operand B (Enabled if SUPPORT_MIXED_PRECISION=1).

How to test

Basic Verification

Reset: Pulse rst_n low, then set ena high.
Configuration:
- Cycle 0: Provide 0x00 on both ui_in and uio_in for standard E4M3 mode.
- Cycle 1: Provide 0x7F (1.0 scale) on ui_in and 0x00 (E4M3) on uio_in.
- Cycle 2: Provide 0x7F (1.0 scale) on ui_in and 0x00 (E4M3) on uio_in.
Data Streaming:
- Cycles 3-34: Provide 32 pairs of values. E.g., 0x38 (1.0 in E4M3) on both ports.
Result:
- Cycles 35-36: Wait for internal processing.
- Cycles 37-40: Read the 32-bit signed fixed-point result on uo_out.
- For 32 pairs of $1.0 \times 1.0$, the result should be 0x00002000 (representing 32.0 in the system's 8-bit fractional format).

Advanced Modes

Short Protocol: Set ui_in[7]=1 in Cycle 0 to bypass scale loading. Useful for weight-stationary kernels where scales and formats remain constant across blocks.
Vector Packing: Set uio_in[6]=1 in Cycle 0. Stream two 4-bit elements per byte (High nibble = Element $i+1$, Low nibble = Element $i$).

External hardware

Tiny Tapeout DevKit: The easiest way to interface with the chip. Use the provided MicroPython driver (test/TT_MAC_RUN.PY) for quick prototyping.
Sipeed Tang Nano 4K: For high-speed testing, a dedicated FPGA bitstream and Cortex-M3 testbench are provided in the repository.

IO

Port	Name	Description
`ui_in[7:0]`	Operand A / Scale A	Elements $A_i$ or Scale $X_A$.
`uio_in[7:0]`	Operand B / Scale B	Elements $B_i$ or Scale $X_B$.
`uo_out[7:0]`	Result Out	Serialized 32-bit dot product result.
`clk`	Clock	System clock (Target: 20MHz).
`rst_n`	Reset	Active-low asynchronous reset.
`ena`	Enable	Clock enable.

Appendix: OCP MX+ Mathematics

The OCP MX+ extension optimizes quantization by preserving high-precision "outliers" (Block Max elements) while maintaining a low bit-width for the rest of the block.

1. Base OCP MX Mathematics (Standard)

For a block of $k$ elements, the value of an element $A_i$ is given by: $V(A_i) = S \cdot M_i \cdot 2^{X_A - 127}$ Where:

$S$: Sign bit ($\pm 1$).
$M_i$: Mantissa (significand), including an implicit leading bit for subnormals.
$X_A$: Shared 8-bit scale (UE8M0).
$E_i$: Individual element exponent (for FP8/FP6/FP4 formats).

2. OCP MX+ (Extended Mantissa)

When MX+ Enable is set, the Block Max (BM) element—identified by BM Index—repurposes its exponent bits as additional mantissa.

Normal Element ($i \neq BM$): Decoded as standard MXFP (e.g., E4M3).

Block Max Element ($i = BM$):

Exponent: Fixed to $E_{max}$ for the selected format.
Mantissa: The original exponent bits are appended to the mantissa field.
Benefit: For FP4 (E2M1), the mantissa grows from 1 bit to 3 bits ($1 + 2$), reducing quantization error for the most critical value by up to 10x.

3. OCP MX++ (Decoupled Shared Scaling)

MX++ allows "Non-Block Max" (NBM) elements to use a finer quantization grid than the BM element by applying a secondary exponent offset.

$V(A_{i \neq BM}) = S \cdot M_i \cdot 2^{(X_A - 127) - NBM_Offset_A}$

This effectively "zooms in" on the smaller values in the block, reducing the floor noise caused by a single large outlier.

4. LNS Mitchell's Approximation

In LNS Mode, multiplication $P = A \times B$ is performed in the logarithmic domain: $\log_2(P) = \log_2(A) + \log_2(B)$

To avoid expensive Power/Log circuits, the unit uses Mitchell’s Approximation: $\log_2(1+m) \approx m, \quad m \in [0, 1)$

The product of two significands $(1+m_a)$ and $(1+m_b)$ is approximated as:

(1+m_a)(1+m_b) \approx \begin{cases} 1 + m_a + m_b & \text{if } m_a + m_b < 1 \\ 2(m_a + m_b) & \text{if } m_a + m_b \ge 1 \end{cases}

This allows the multiplier to be replaced by a simple adder and a shift, reducing hardware area by over 50%.

Thank you!

A massive thank you to Matt Venn, Uri Shaked, Sophie, and the entire Tiny Tapeout / IHP community for making open-source silicon a reality. This project was built on the foundation of your incredible tools and dedication.

#	Input	Output	Bidirectional
0	data_in_a[0]	data_out[0]	data_in_b[0]
1	data_in_a[1]	data_out[1]	data_in_b[1]
2	data_in_a[2]	data_out[2]	data_in_b[2]
3	data_in_a[3]	data_out[3]	data_in_b[3]
4	data_in_a[4]	data_out[4]	data_in_b[4]
5	data_in_a[5]	data_out[5]	data_in_b[5]
6	data_in_a[6]	data_out[6]	data_in_b[6]
7	data_in_a[7]	data_out[7]	data_in_b[7]
