582 LEDs Racer
582 : LEDs Racer
- Author: KerCrafter
- Description: Funny electronic game with WS2812B LEDs
- GitHub repository

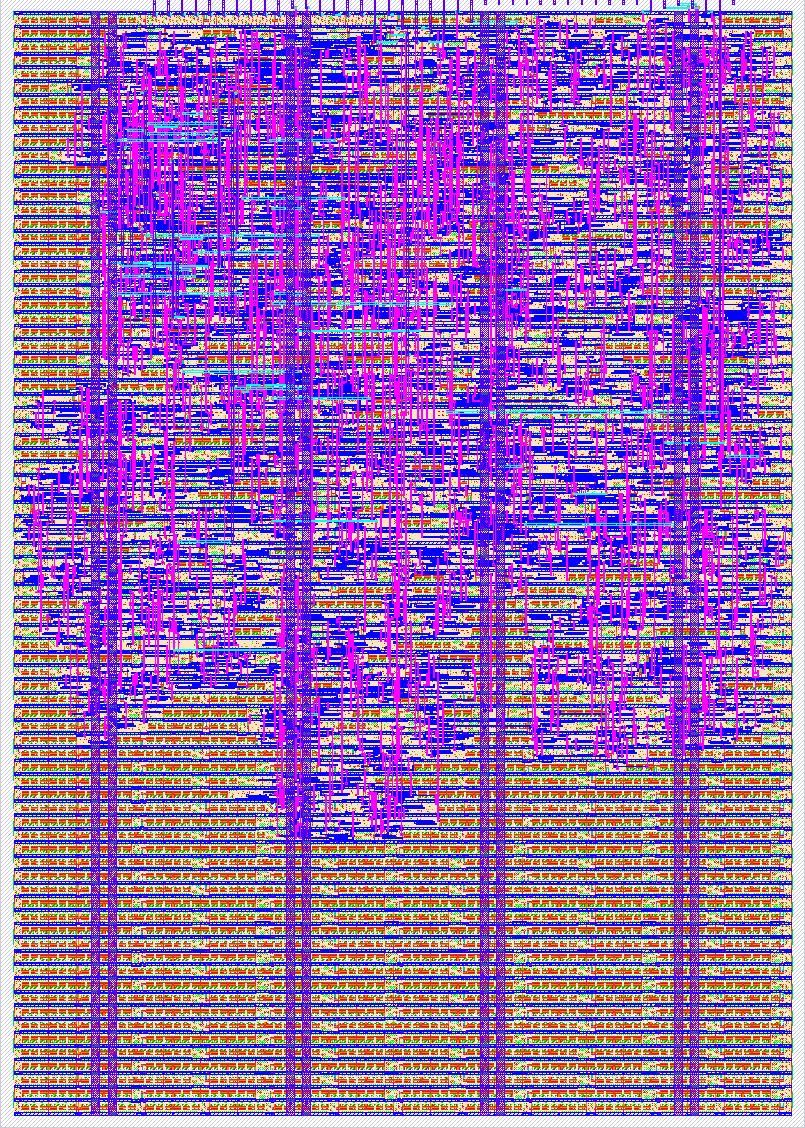

- Open in 3D viewer
- Clock: 50000000 Hz
How it works
A fun little game, 4 players (Red, Blue, Green, Yellow) around a table, each with an arcade button, must challenge each other by pressing their button as fast as possible.
How to test
Pressing the button causes their led to progress to the center circle. The first to reach the center wins.
External hardware
I'm putting here the material I used for the project, but of course if it's compatible this list can be adapted.
- 4 x Arcade buttons (https://www.amazon.fr/EG-STARTS-Nouveau-Boutons-poussoirs-lumineux/dp/B01MSNXLN0/)
- 1 x LEDs Circles (with WS2812B Leds) (https://www.amazon.fr/Treedix-anneaux-WS2812B-adressable-Raspberry/dp/B0CD3DYJRK/)
Should be connected to the FPGA inputs with a pull down resistor
IO
| # | Input | Output | Bidirectional |
|---|---|---|---|
| 0 | BLUE_BTN | LEDS_LINE | |
| 1 | RED_BTN | TP_SCREEN_0 | |
| 2 | GREEN_BTN | TP_SCREEN_1 | |
| 3 | YELLOW_BTN | TP_BLUE_READY_TO_PLAY | |
| 4 | TP_RED_READY_TO_PLAY | ||
| 5 | TP_GREEN_READY_TO_PLAY | ||
| 6 | TP_YELLOW_READY_TO_PLAY | ||
| 7 | TP_UPDATE_FRAME |
