293 TinyMOA-IHP0P4-8x8
293 : TinyMOA-IHP0P4-8x8
- Author: Ezra Wolf
- Description: 8x8 digital compute-in-memory (DCIM) core on an experimental IHP SG13G2 CMOS5L shuttle.
- GitHub repository

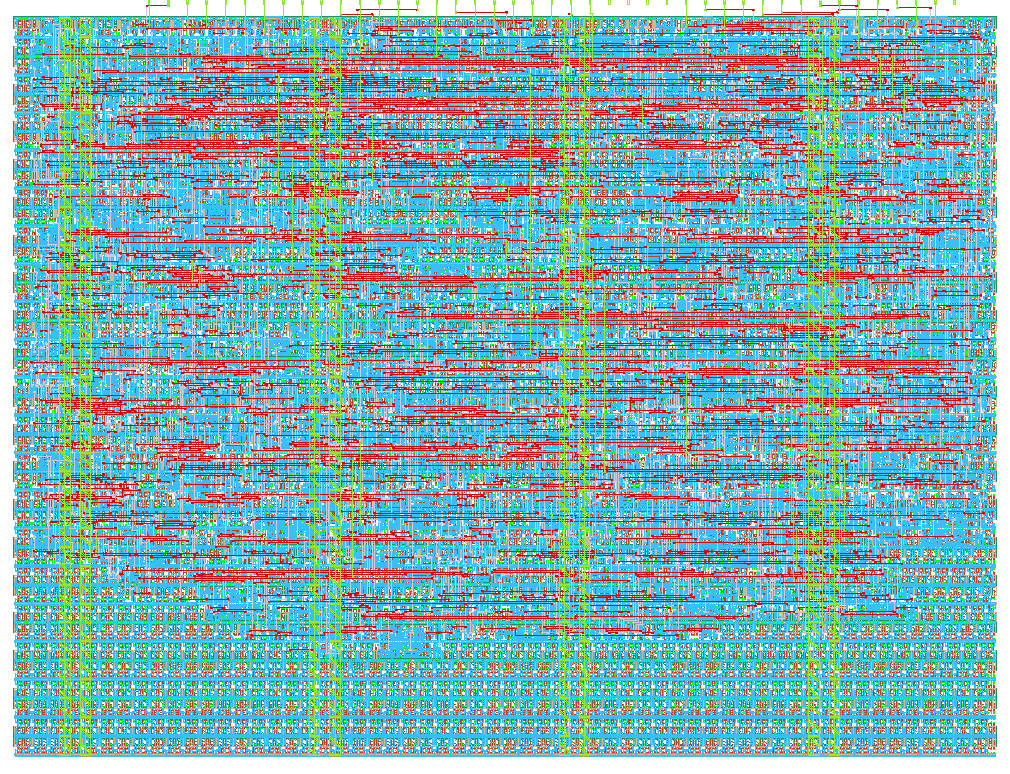

- Open in 3D viewer
- Clock: 50000000 Hz
How it works
Digital compute-in-memory (DCIM) 8x8 array core.
How to test
Documentation in progress.
External hardware
Documentation in progress.
IO
| # | Input | Output | Bidirectional |
|---|---|---|---|
| 0 | data_in[0] | result[0] | wen (in) |
| 1 | data_in[1] | result[1] | execute (in) |
| 2 | data_in[2] | result[2] | read_next (in) |
| 3 | data_in[3] | result[3] | acc_clear (in) |
| 4 | data_in[4] | result[4] | col_sel[0] (out) |
| 5 | data_in[5] | result[5] | col_sel[1] (out) |
| 6 | data_in[6] | result[6] (zero) | col_sel[2] (out) |
| 7 | data_in[7] | result[7] (zero) | done (out) |
