388 Tiny TPU Systolic Array
388 : Tiny TPU Systolic Array
- Author: Yu Xia，Bohong Gao, Junjie Yan, Yufeng Wang, Jinyao Sun, Arthur Stanson
- Description: A small systolic-array-based matrix multiplication accelerator
- GitHub repository

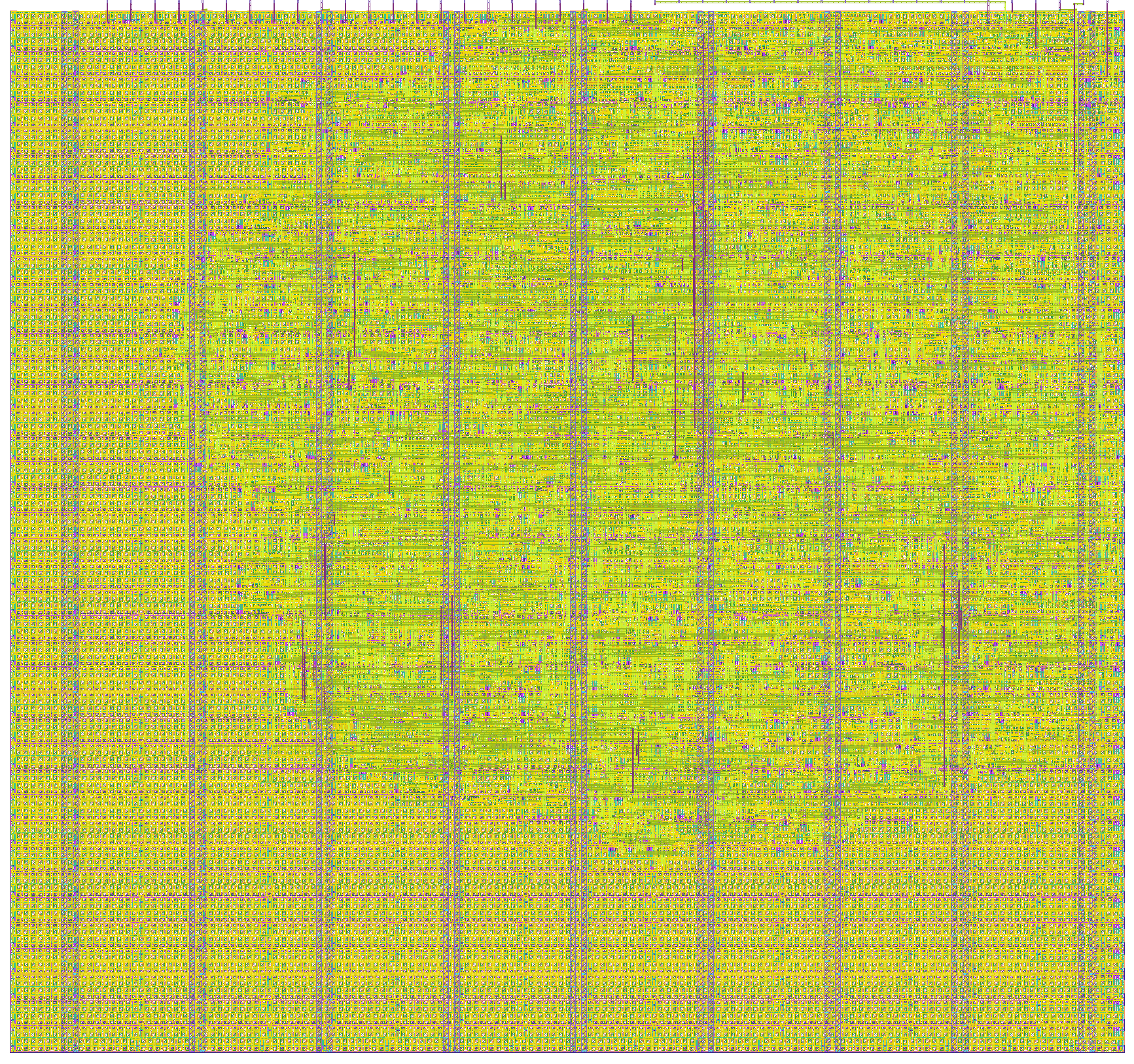

- Open in 3D viewer
- Clock: 100000000 Hz
Tiny TPU Systolic Array
This project implements a small TPU-style matrix multiplication accelerator using a systolic array architecture. The design is intended for TinyTapeout and uses a simple SPI-style serial interface to configure the design, load data, start computation, and read results.
How it works
The design is built around a small systolic array made of processing elements. Each processing element performs multiply-accumulate operations and passes data through the array. The controller receives commands through the SPI interface, manages configuration and execution, and sends results back through the serial output.
The TinyTapeout wrapper maps the external signals as follows:
ui_in[0]: SCLKui_in[1]: MOSIui_in[2]: CS_Nuo_out[0]: MISO
The system clock and reset use the standard TinyTapeout clk and rst_n pins.
How to test
The project can be tested using the TinyTapeout cocotb testbench flow. The testbench drives the TinyTapeout wrapper interface, applies reset, sends SPI command sequences through ui_in, and observes the serial output through uo_out[0].
To run the test locally:
cd test
make -B
The GitHub Actions workflow also runs the RTL test automatically after pushing changes to the repository.
External hardware
No external hardware is required. The design only uses the TinyTapeout digital input, output, clock, and reset pins.
IO
| # | Input | Output | Bidirectional |
|---|---|---|---|
| 0 | SCLK | MISO | |
| 1 | MOSI | ||
| 2 | CS_N | ||
| 3 | |||
| 4 | |||
| 5 | |||
| 6 | |||
| 7 |
