261 Pattern-Guided Arithmetic Optimizations with MLIR kulisch bf16
261 : Pattern-Guided Arithmetic Optimizations with MLIR kulisch bf16
- Author: L. Ledoux
- Description: Streaming byte-fed S3FDP seq+comb accumulator generated from MLIR for-loop.
- GitHub repository

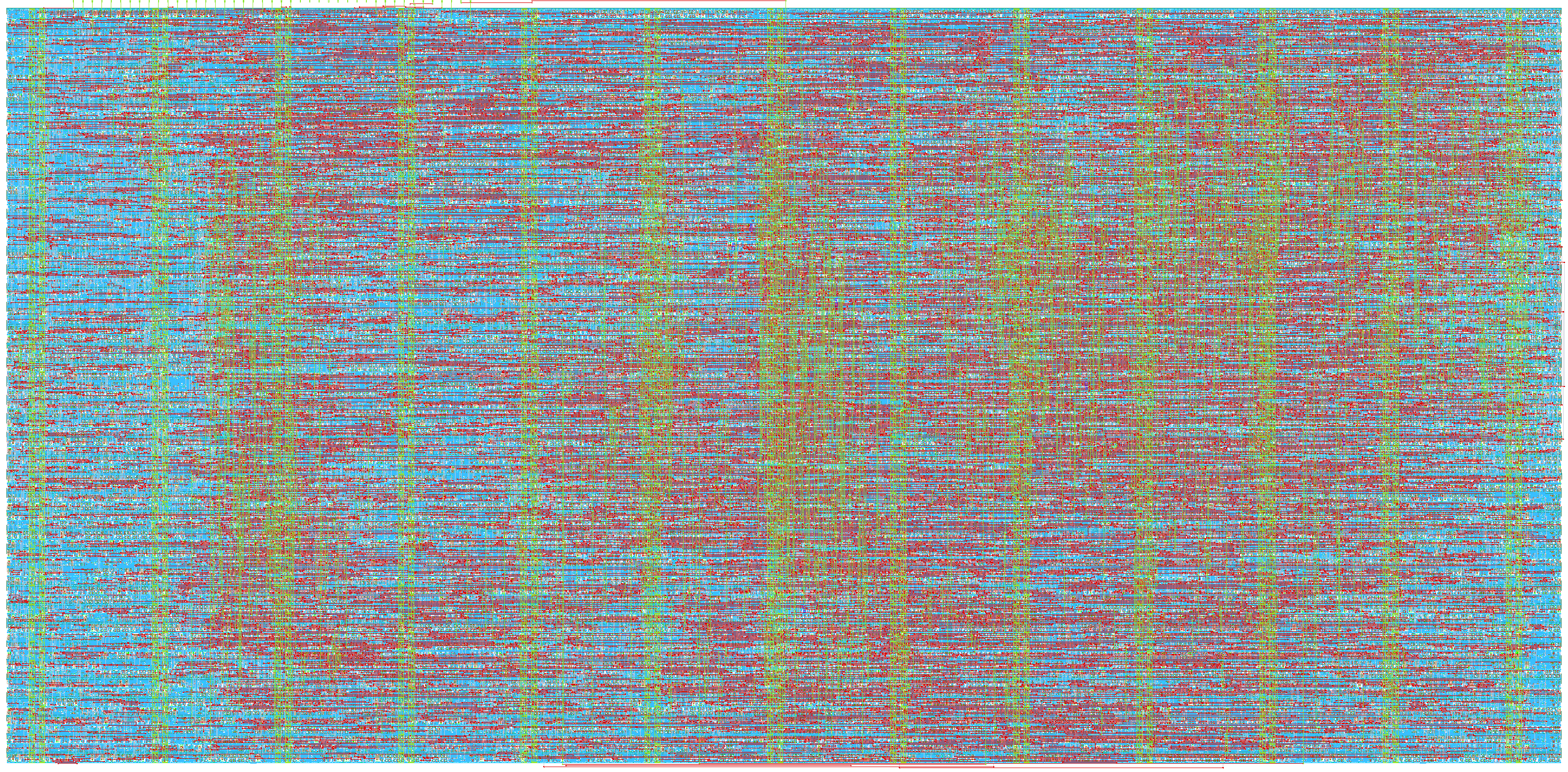

- Open in 3D viewer
- Clock: 500000 Hz
How it works
tt_um_lledoux_bf16_diminished_kulisch wraps a generated seq+comb arithmetic core built from MLIR with Emeraude + CIRCT.
The flow detects a loop pattern in MLIR (scf.for + memref.load/store + arith.mulf/addf) and emits a specialized S3FDP accumulator instead of generic floating-point datapath logic.
Canonical loop shape:
scf.for %k = %c0 to %c2 step %c1 {
%x = memref.load %a[%k] : memref<2xf32>
%y = memref.load %b[%k] : memref<2xf32>
%acc = memref.load %c[%c0] : memref<2xf32>
%m = arith.mulf %x, %y : f32
%s = arith.addf %acc, %m : f32
memref.store %s, %c[%c0] : memref<2xf32>
}
Arithmetic model (S3FDP)
S3FDP is used as a truncated Kulisch-like fixed-point accumulation strategy:
- multiply input terms,
- accumulate in a constrained fixed-point-like internal format,
- convert back to
f32.
Specialization used in this project:
ovf=2msb=4lsb=-6chunk_size=16
Llama / PyTorch source example
The source pattern used in experiments:
class LlamaFfnSublayer(nn.Module):
"""Llama FFN sublayer using SwiGLU (SiLU-gated linear unit)."""
def __init__(self, dim: int = 512, hidden_dim: int | None = None, multiple_of: int = 256):
super().__init__()
if hidden_dim is None:
hidden_dim = 4 * dim
hidden_dim = int(2 * hidden_dim / 3)
hidden_dim = multiple_of * ((hidden_dim + multiple_of - 1) // multiple_of)
self.w_gate = nn.Linear(dim, hidden_dim, bias=False)
self.w_up = nn.Linear(dim, hidden_dim, bias=False)
self.w_down = nn.Linear(hidden_dim, dim, bias=False)
def forward(self, x: torch.Tensor) -> torch.Tensor:
gate = F.silu(self.w_gate(x))
up = self.w_up(x)
return self.w_down(gate * up)
High-level linalg excerpt:
...
%8 = linalg.generic
{ins(%7: tensor<1x2x16xf32>) outs(%5: tensor<1x2x16xf32>) {
%19 = arith.negf %in : f32
%20 = math.exp %19 : f32
%21 = arith.addf %20, %cst_1 : f32
%22 = arith.divf %cst_1, %21 : f32
linalg.yield %22 : f32
}} -> tensor<1x2x16xf32>
%9 = linalg.generic
{ins(%8, %7: tensor<1x2x16xf32>, tensor<1x2x16xf32>)
outs(%5: tensor<1x2x16xf32>)} {
%19 = arith.mulf %in, %in_7 : f32
linalg.yield %19 : f32
} -> tensor<1x2x16xf32>
...
Internal IR snapshots
Comb-specialized stage (generated/ir-stages/20-flopoco-comb.mlir):
%s3fdp_accum.r = hw.instance "s3fdp_accum" @s3fdp_accum_core_wE8_wF23_cs16(
clk: %3: !seq.clock, reset: %arg1: i1, x: %1: i32, y: %2: i32
) -> (r: i32)
Seq/HW aggregate stage (generated/ir-stages/60-hw-aggregate.mlir):
%27 = seq.clock_gate %26, %3
%s3fdp_accum.r = hw.instance "s3fdp_accum" @s3fdp_accum_core_wE8_wF23_cs16(
clk: %27: !seq.clock, reset: %reset: i1, x: %18: i32, y: %25: i32
) -> (r: i32)
seq.write %c_mem[%false] %s3fdp_accum.r wren %3 {latency = 1 : i64} : !seq.hlmem<2xi32>
SV-lowered stage (generated/ir-stages/90-hw-to-sv.mlir):
%c_mem = sv.reg : !hw.inout<uarray<2xi32>>
sv.alwaysff(posedge %clk_0) {
sv.if %4 {
%33 = sv.array_index_inout %c_mem[%false] : !hw.inout<uarray<2xi32>>, i1
sv.passign %33, %s3fdp_accum.r : i32
}
}
Interface protocol
Input stream on ui_in[7:0]:
- 20-byte frame, little-endian
a[0..1]IEEE754f32(8 bytes)b[0..1]IEEE754f32(8 bytes)c0IEEE754f32seed (4 bytes)
Execution:
- hold core reset during load,
- release reset after byte 20,
- wait 3 cycles,
- output one 32-bit result on
uo_out[7:0]as 4 little-endian bytes.
Frame slot: 27 cycles (20 load + 3 run + 4 output).
uio pins are unused.
Generation and test
Generate core + IR stages:
./scripts/generate_s3fdp_core.sh
Run simulation:
cd test
make clean
make -B

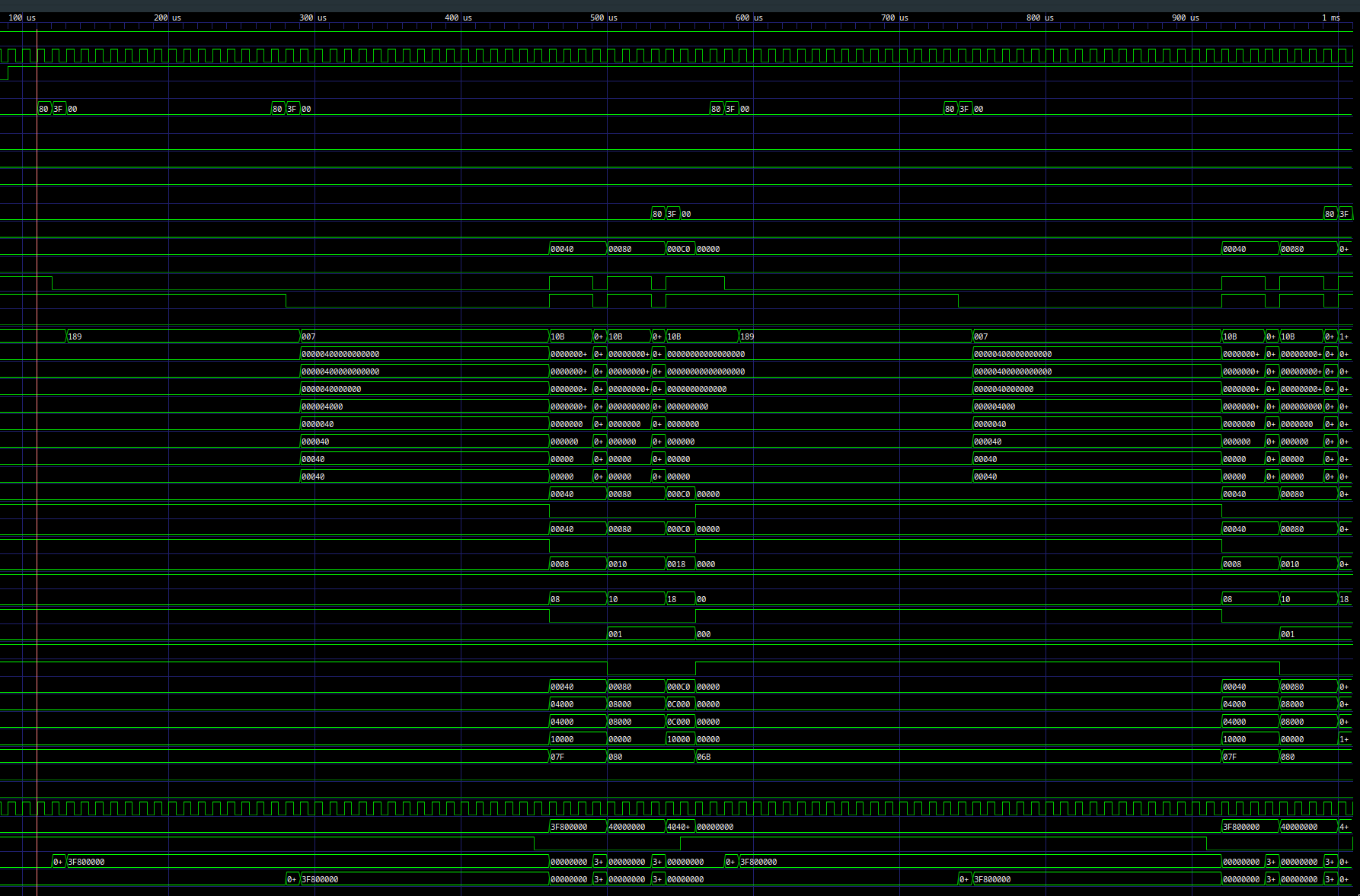

Waveform screenshot:
External hardware
No external hardware is required.
IO
| # | Input | Output | Bidirectional |
|---|---|---|---|
| 0 | in_byte[0] | out_byte[0] | unused |
| 1 | in_byte[1] | out_byte[1] | unused |
| 2 | in_byte[2] | out_byte[2] | unused |
| 3 | in_byte[3] | out_byte[3] | unused |
| 4 | in_byte[4] | out_byte[4] | unused |
| 5 | in_byte[5] | out_byte[5] | unused |
| 6 | in_byte[6] | out_byte[6] | unused |
| 7 | in_byte[7] | out_byte[7] | unused |
